FL150AET (2013)
BRACKET 2

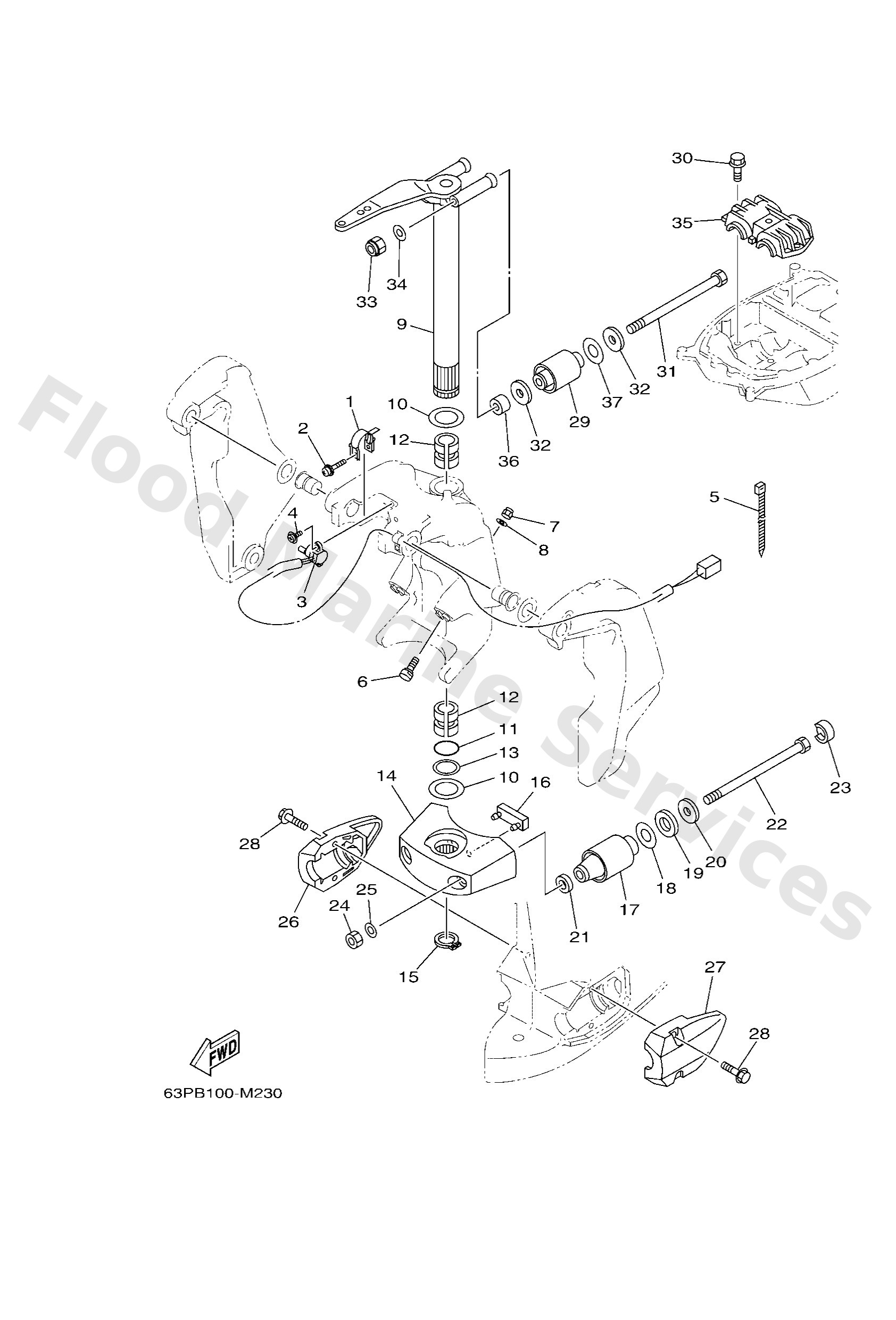

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313910
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
67H8367201
Trim sender
Loading…
↗
4
9798506216
Screw, with washer(6h2)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
63P4337600
Bolt, thrust receiver
Loading…
↗
7
9578010300
Nut, nylon (6e5)
Loading…
↗
8
9299510600
Washer, plate
Loading…
↗
9
66K42510028D
Steering bracket assembly
Loading…
↗
10
9020138M60
Washer, plate (6e5)
Loading…
↗
11
9321037MH7
O-ring(61u)
Loading…
↗
12
9038638M32
Bush(6e5)
Loading…
↗
13
9020240M47
Washer, plate(61a)
Loading…
↗
14
68V44551008D
Housing, lower mount rubber
Loading…
↗
15
9341037M04
Circlip (6e5)
Loading…
↗
16
61A4457500
Damper, lower mount rubber
Loading…
↗
17
60V4455500
L(20.3")
Mount damper, lower side
Loading…
↗
17
63P4455500
X(25.3")
Mount damper, lower side
Loading…
↗
18
9020135008
Washer, plate
Loading…
↗
19
9020232M19
Washer, plate (6e5)
Loading…
↗
20
9020116M55
Washer, plate (6e5)
Loading…
↗
21
9020115M58
Washer, plate (6e5)
Loading…
↗
22
9010914007
Bolt
Loading…
↗
23
69J4453300
Damper, upper mount rubber
Loading…
↗
24
9538014600
Nut,hex. (ge6)
Loading…
↗
25
9299514600
Washer (6e5)
Loading…
↗
26
63P44553008D
Cover, lower mount
Loading…
↗
27
63P44556008D
Cover, lower mount 2
Loading…
↗
28
9757510540
Bolt, with washer
Loading…
↗
29
63P4451400
Mount damper, upper side
Loading…
↗
30
9011910024
Bolt, with washer
Loading…
↗
31
9010914005
Bolt
Loading…
↗
32
9020116M01
Washer, plate(61a)
Loading…
↗
33
9018514M00
Nut, self-locking(61a)
Loading…
↗
35
63P4451100
Cover, upper mount
Loading…
↗
36
9038714004
Collar
Loading…
↗
37
9020228001
Washer, plate
Loading…
↗
