FL225FET (2017)
BRACKET 2

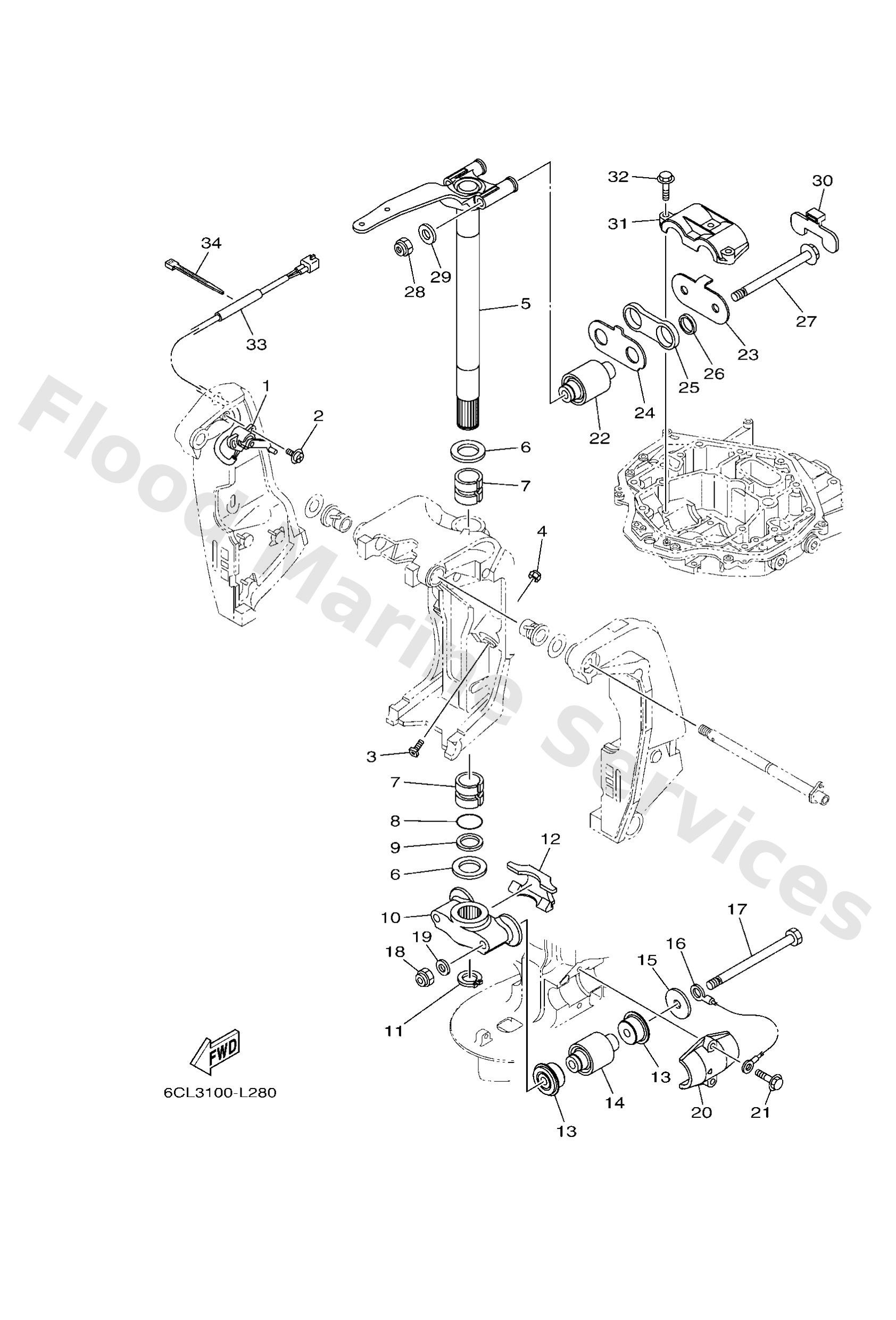

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69J8367211
Trim sender
Loading…
↗
2
9798506216
Screw, with washer(6h2)
Loading…
↗
3
61A4337600
Bolt, thrust receiver
Loading…
↗
4
9578010300
Nut, nylon (6e5)
Loading…
↗
5
6CE42510008D
Steering bracket assembly
Loading…
↗
6
9020140M00
Washer, plate(61a)
Loading…
↗
7
9038639M89
Bush(61a)
Loading…
↗
8
9321035321
O-ring (3m7)
Loading…
↗
9
9020240M47
Washer, plate(61a)
Loading…
↗
10
6CE4455100CA
Housing, lower mount rubber 1
Loading…
↗
11
9341037M04
Circlip (6e5)
Loading…
↗
12
6CE4457400
Stopper, lower mount rubber
Loading…
↗
13
6CE4457500
Damper, lower mount rubber
Loading…
↗
14
6CE4455500
Mount damper, lower side
Loading…
↗
15
9020116032
Washer, plate
Loading…
↗
16
6AW8214900
Wire, lead 3
Loading…
↗
17
9010114004
Bolt
Loading…
↗
18
9018514M00
Nut, self-locking(61a)
Loading…
↗
19
9299514600
Washer (6e5)
Loading…
↗
20
6CE4455200CA
Housing, lower mount rubber 2
Loading…
↗
21
9011910024
Bolt, with washer
Loading…
↗
22
6CE4451400
Mount damper, upper side
Loading…
↗
23
6CE4452600
Plate
Loading…
↗
24
6CE4453600
Plate 2
Loading…
↗
25
6CE4453200
Stopper, upper mount
Loading…
↗
26
9038728013
Collar
Loading…
↗
27
9010514005
Bolt, flange
Loading…
↗
30
6CE4453300
Damper, upper mount rubber
Loading…
↗
31
6CE4451100
Cover, upper mount
Loading…
↗
33
9044615003
Hose
Loading…
↗
34
9046511M10
Clamp
