Yamaha Outboard Parts - BRACKET 2 - FL250AET (2009) | Flood Marine

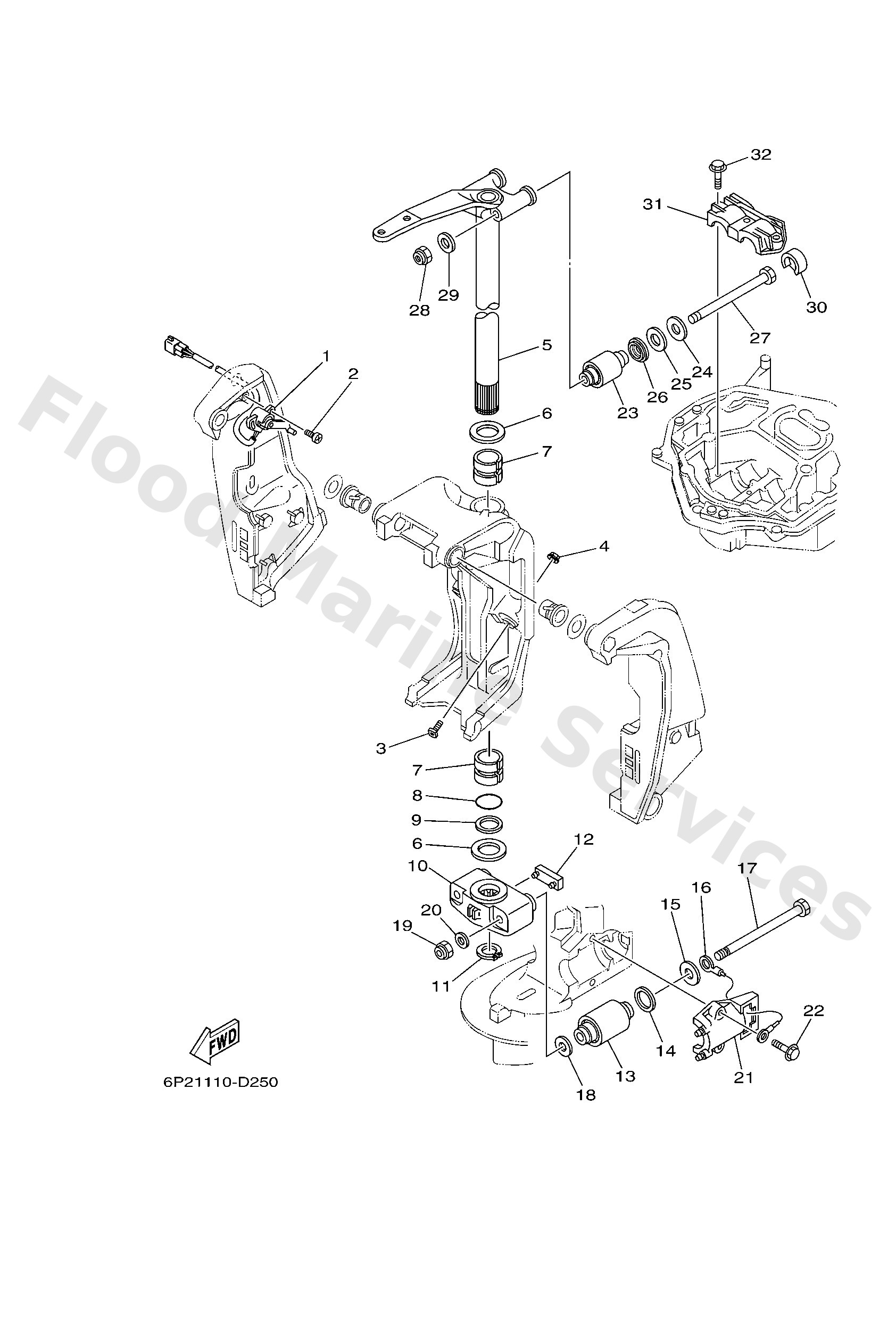

Diagram: BRACKET 2

Diagram

Parts List

Reference
Description
Price


1
69J8367210
Trim sender
Loading…

↗
2
9788506016
Screw, Pan Head
Loading…

↗
3
61A4337600
29
Loading…

↗
4
9578010300
24
Loading…

↗
5
69J42510008D
Steering Bracket Assy
Loading…

↗
6
9020140M00
Washer, Plate
Loading…

↗
7
9038639M89
Bush
Loading…

↗
8
9321035321
O–Ring
Loading…

↗
9
9020240M47
24
Loading…

↗
10
69J44551008D
Housing, Lower Mount Rubber
Loading…

↗
11
9341037M04
Circlip
Loading…

↗
12
61A4457500
Damper, Lower Mount Rubber
Loading…

↗
13
60X445550094
Mount damper, lower side
Loading…

↗
14
9020232M19
24
Loading…

↗
15
9020116016
Washer, plate
Loading…

↗
16
6E58214900
Wire, Lead 3
Loading…

↗
17
9010114002
Bolt
Loading…

↗
18
9020115M58
24
Loading…

↗
19
9018514M00
Nut, Self-Locking
Loading…

↗
20
9299514600
Washer
Loading…

↗
21
61A4455201CA
Housing, lower mount rubber
Loading…

↗
22
9011910024
Bolt, With Washer
Loading…

↗
23
69J445140094
Mount damper, upper side
Loading…

↗
24
9020116015
Washer, plate
Loading…

↗
25
9020228M46
Washer, Plate
Loading…

↗
26
69J4453200
Stopper, upper mount
Loading…

↗
27
9010114003
Bolt
Loading…

↗
30
69J4453300
Damper, Upper Mount Rubber
Loading…

↗
31
61A445110194
Cover, upper mount
Loading…

↗
