FL350AET (2016)
BRACKET 2

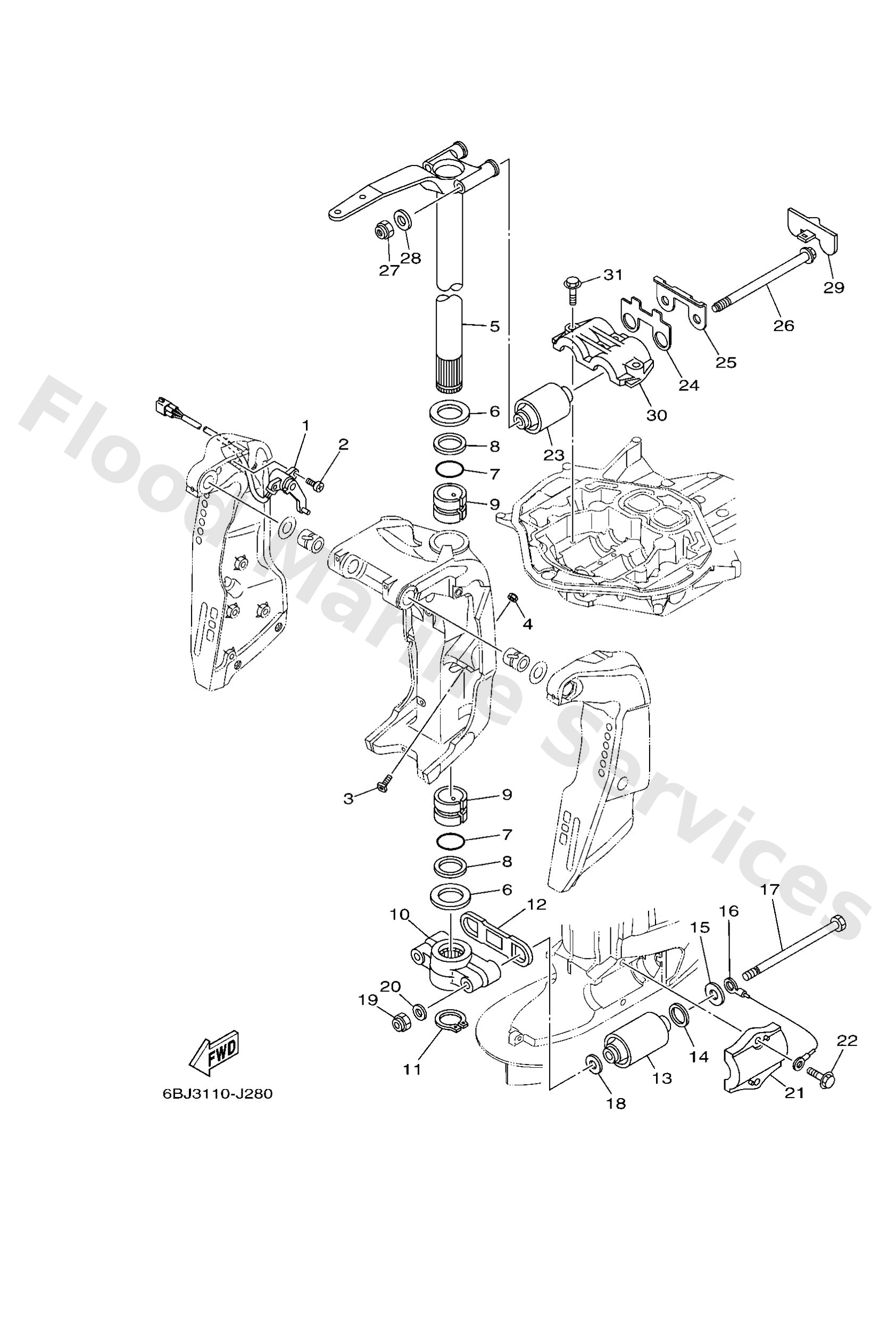

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6AW8367200
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
6AW4337600
Bolt, thrust receiver
Loading…
↗
4
9578010300
Nut, nylon (6e5)
Loading…
↗
5
6AW42510018D
Steering bracket assembly
Loading…
↗
6
9020146008
Washer, plate
Loading…
↗
7
9321043001
O-ring
Loading…
↗
8
9020245001
Washer, plate
Loading…
↗
9
9038645002
Bush
Loading…
↗
10
6AW4455100CA
Housing, lower mount rubber 1
Loading…
↗
11
9341044087
Circlip
Loading…
↗
12
6AW4457500
Damper, lower mount rubber
Loading…
↗
13
6AW4455500
Mount damper, lower side
Loading…
↗
14
9020232M19
Washer, plate (6e5)
Loading…
↗
15
9020116016
Washer, plate
Loading…
↗
16
6AW8214900
Wire, lead 3
Loading…
↗
17
9010114004
Bolt
Loading…
↗
18
9020115M58
Washer, plate (6e5)
Loading…
↗
19
9018514M00
Nut, self-locking(61a)
Loading…
↗
20
9299514600
Washer (6e5)
Loading…
↗
21
6AW4455200CA
Housing, lower mount rubber 2
Loading…
↗
22
9011910024
Bolt, with washer
Loading…
↗
23
6AW4451401
Mount damper, upper side
Loading…
↗
24
6AW4453200
Stopper, upper mount
Loading…
↗
25
6AW4452600
Plate
Loading…
↗
26
9010516003
Bolt, flange
Loading…
↗
27
9018516008
Nut, self-locking
Loading…
↗
28
9020116030
Washer, plate
Loading…
↗
29
6AW4453300
Damper, upper mount rubber
Loading…
↗
30
6AW4451101CA
Cover, upper mount
Loading…
↗
