FT25BET (2003)
BRACKET 2

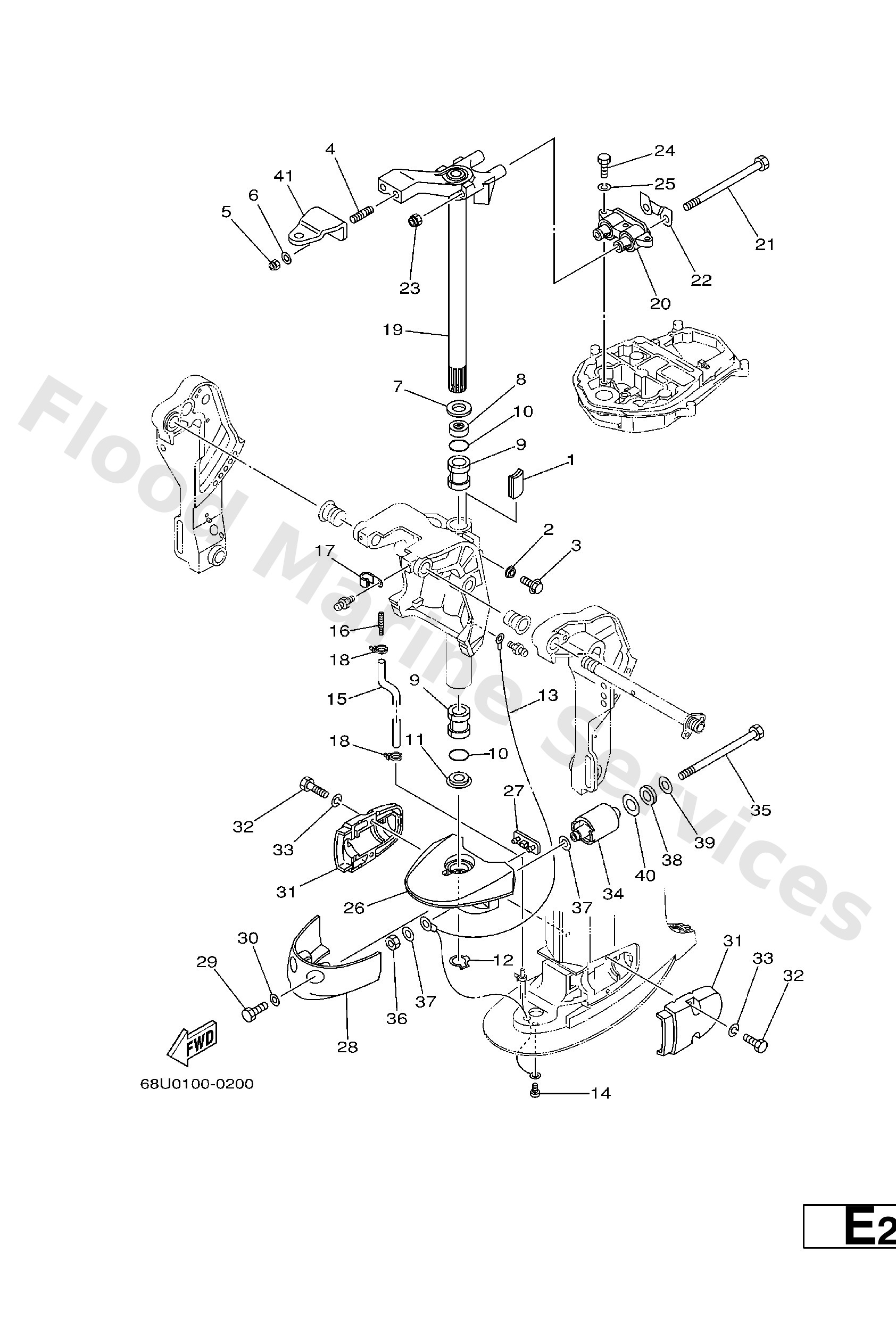

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6J8−42528−00
Plate, friction
Loading…
↗
2
689−43373−01
Seal, damper
Loading…
↗
3
90105−06M18
Bolt (689)
Loading…
↗
4
90116−10M70
Bolt, stud
Loading…
↗
5
90185−10051
Nut, self-locking
Loading…
↗
6
92995−10600
Washer, plate
Loading…
↗
7
90201−30M00
Washer, plate(6h1)
Loading…
↗
8
90386−30M78
Bush(6h0)
Loading…
↗
9
90386−30M77
Bush(6h0)
Loading…
↗
10
93210−29M94
O-ring(6h1)
Loading…
↗
11
90386−30M60
Bush(6j8)
Loading…
↗
12
93410−28M06
Circlip (688)
Loading…
↗
13
67C−82127−10
Wire, lead 2
Loading…
↗
14
97885−06008
Screw, pan head(6a3)
Loading…
↗
15
90445−07M53
Hose (l1160)
Loading…
↗
16
6E5−83558−00
End, nipple
Loading…
↗
17
90465−08M07
Clamp (1e6)
Loading…
↗
18
90465−11M10
Clamp
Loading…
↗
19
68U−42510−10−4D
Steering bracket assembly
Loading…
↗
20
67C−44514−10−4D
Mount damper, upper side
Loading…
↗
21
90101−08M15
Bolt
Loading…
↗
22
66T−44526−30
Plate
Loading…
↗
23
90185−08045
Nut, self-locking
Loading…
↗
24
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
25
92995−08100
Ybs67-8 washer, spring
Loading…
↗
26
67C−44551−10−4D
Housing, lower mount rubber
Loading…
↗
27
67C−44575−00
Damper, lower mount rubber
Loading…
↗
28
67C−44553−00−4D
Cover, lower mount
Loading…
↗
29
97095−08020
Bolt, hexagon
Loading…
↗
30
92995−08600
Washer, plain (663)
Loading…
↗
31
67C−44552−01−4D
Housing, lower mount rubber
Loading…
↗
34
68U−44555−11−94
L
Mount damper, lower side
Loading…
↗
35
90109−12MA3
Bolt
Loading…
↗
36
95380−12700
Nut(6t4)
Loading…
↗
37
90201−12M16
Washer, plate (679)
Loading…
↗
38
90202−21100
Washer plate (663)
Loading…
↗
39
90201−13M19
Washer, plate (663)
Loading…
↗
40
90201−22M05
Washer, plate
Loading…
↗
41
65W−48511−00
Hook, steering
Loading…
↗
