FT25FET (2018)
BRACKET 2

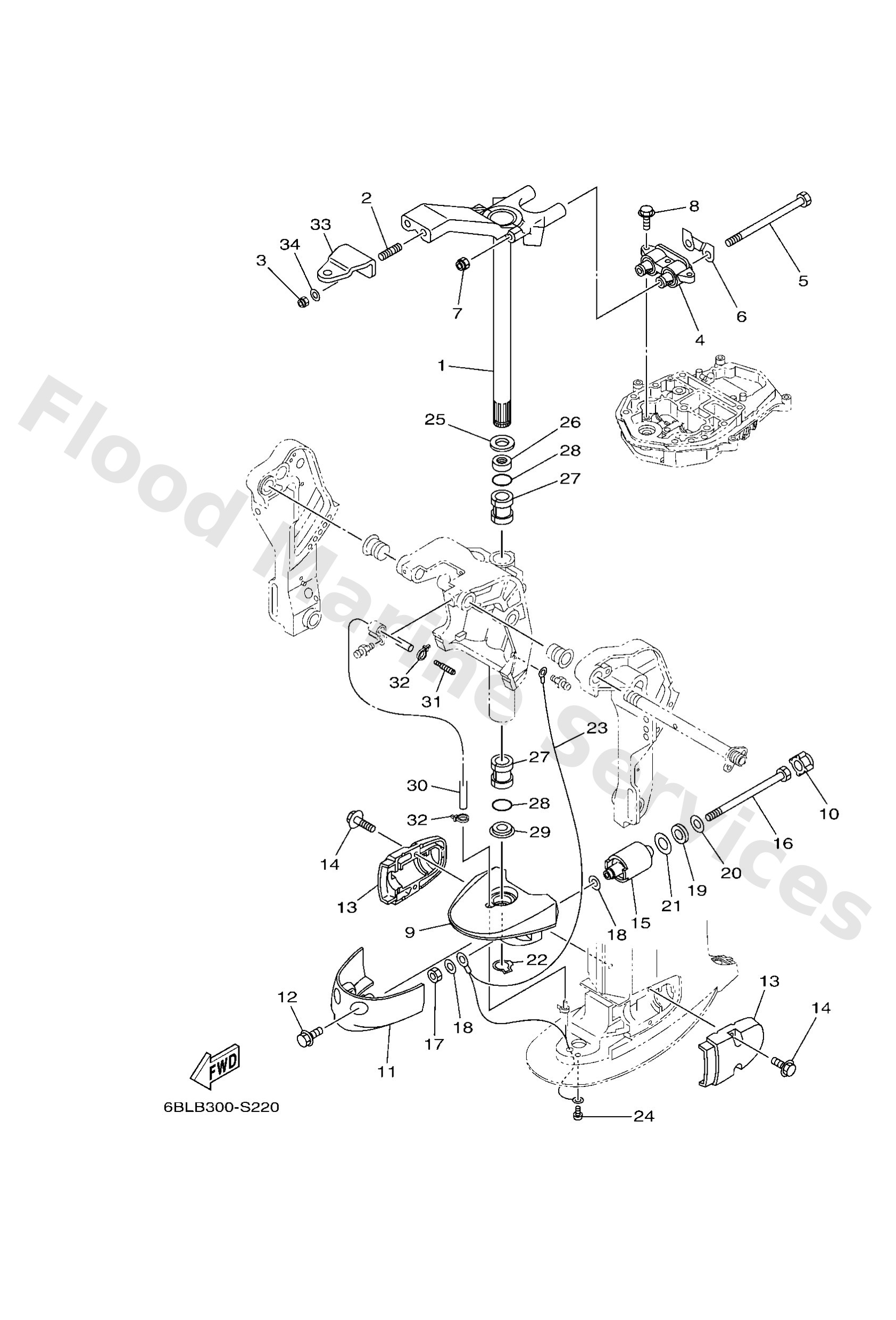

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6BG42510108D
Steering bracket assembly
Loading…
↗
2
9011610063
Bolt, stud
Loading…
↗
3
9018510027
Nut, self-locking
Loading…
↗
4
67C4451410
Mount damper, upper side
Loading…
↗
5
9010908229
Bolt
Loading…
↗
6
66T4452630
Plate
Loading…
↗
7
9018508018
Nut, self-locking
Loading…
↗
8
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
9
67C44551108D
Housing, lower mount rubber
Loading…
↗
10
69W4457500
Damper, lower mount rubber
Loading…
↗
11
67C44553008D
Cover, lower mount
Loading…
↗
12
9759508520
Bolt(6td)
Loading…
↗
13
6C544552008D
Housing, lower mount rubber 2
Loading…
↗
15
68U4455511
L(21.1")
Mount damper, lower side
Loading…
↗
16
9010912MA3
Bolt
Loading…
↗
17
9538012700
Nut(6t4)
Loading…
↗
18
9020112M16
Washer, plate (679)
Loading…
↗
19
9020221100
Washer plate (663)
Loading…
↗
20
9020113M19
Washer, plate (663)
Loading…
↗
21
9020122M05
Washer, plate
Loading…
↗
22
9341028M06
Circlip (688)
Loading…
↗
23
67C8212710
Wire, lead 2
Loading…
↗
24
9788506008
Screw, pan head(6a3)
Loading…
↗
25
9020130M00
Washer, plate(6h1)
Loading…
↗
26
9038630M78
Bush(6h0)
Loading…
↗
27
9038630M77
Bush(6h0)
Loading…
↗
28
9321029M94
O-ring(6h1)
Loading…
↗
29
9038630M60
Bush(6j8)
Loading…
↗
30
9044507M53
Hose (l1160)
Loading…
↗
31
6E58355800
End, nipple
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
33
65W4851101
Hook, steering
Loading…
↗
34
9020110049
Washer, plate
Loading…
↗
