FT50PET (2025)
BRACKET 2

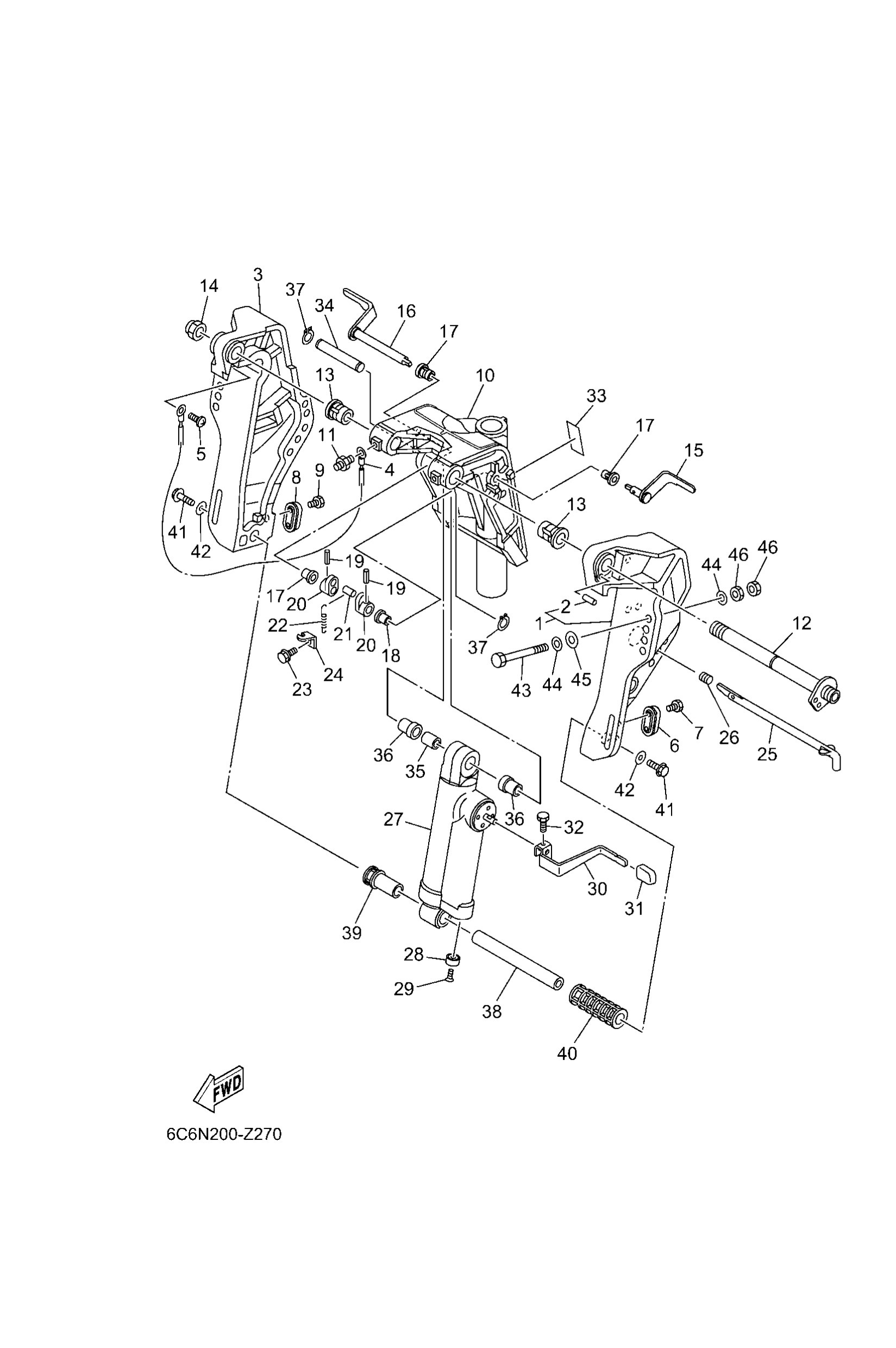

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6C143111108D
-
Loading…
↗
2
9360619002
Pin, dowel
Loading…
↗
3
6C143112008D
Bracket, clamp 2
Loading…
↗
4
6E58214800
Wire, lead 5
Loading…
↗
5
9788506008
Screw, pan head(6a3)
Loading…
↗
6
65W4525100
Anode
Loading…
↗
7
9010106020
Bolt
Loading…
↗
10
6C643311008D
-
Loading…
↗
11
9370006002
Nipple, grease
Loading…
↗
12
6C54313100
Bolt, clamp bracket
Loading…
↗
13
9038622MA4
Bush
Loading…
↗
14
9018522M11
Nut, self-locking
Loading…
↗
15
6C54318100
Lever, tilt stop 1
Loading…
↗
16
6C54318500
Lever, tilt stop 2
Loading…
↗
17
9038610M16
Bushing (688)
Loading…
↗
18
9038610025
Bushing (658)
Loading…
↗
19
9169030020
Pin, spring (6h4)
Loading…
↗
20
6G54314800
Collar, distance
Loading…
↗
21
9024906M19
Pin(6e5)
Loading…
↗
22
9050614M24
Spring, tension(6e5)
Loading…
↗
23
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
24
6G54314400
Hook, spring
Loading…
↗
25
6884316001
Tilt rod ass'y
Loading…
↗
26
9050216M02
Spring, conical (688)
Loading…
↗
27
6C643107008D
-
Loading…
↗
28
6634525100
Anode
Loading…
↗
29
9015206M01
Screw, countersunk
Loading…
↗
30
6C14363100
Lever, tilt
Loading…
↗
31
6824331801
Cover
Loading…
↗
32
97D9506010
Bolt, hexagon deep recess
Loading…
↗
33
63D4369100
Indicator, tilt
Loading…
↗
34
69D4312601
Pin, upper shock mount
Loading…
↗
35
9038716003
Collar
Loading…
↗
36
9038716004
Collar
Loading…
↗
37
9341016097
Circlip
Loading…
↗
38
6CJ4381800
Pin, lower shock mount
Loading…
↗
39
6C54383300
Pipe
Loading…
↗
40
6C54383400
Pipe
Loading…
↗
41
9011910054
Bolt, with washer
Loading…
↗
42
9020110060
Washer, plate
Loading…
↗
43
9010112063
Bolt
Loading…
↗
44
9020112062
Washer, plate
Loading…
↗
45
9020112426
Washe, plate(663)
Loading…
↗
46
9538012600
Nut (707)
Loading…
↗
