FT60GET (2018)
BRACKET 2

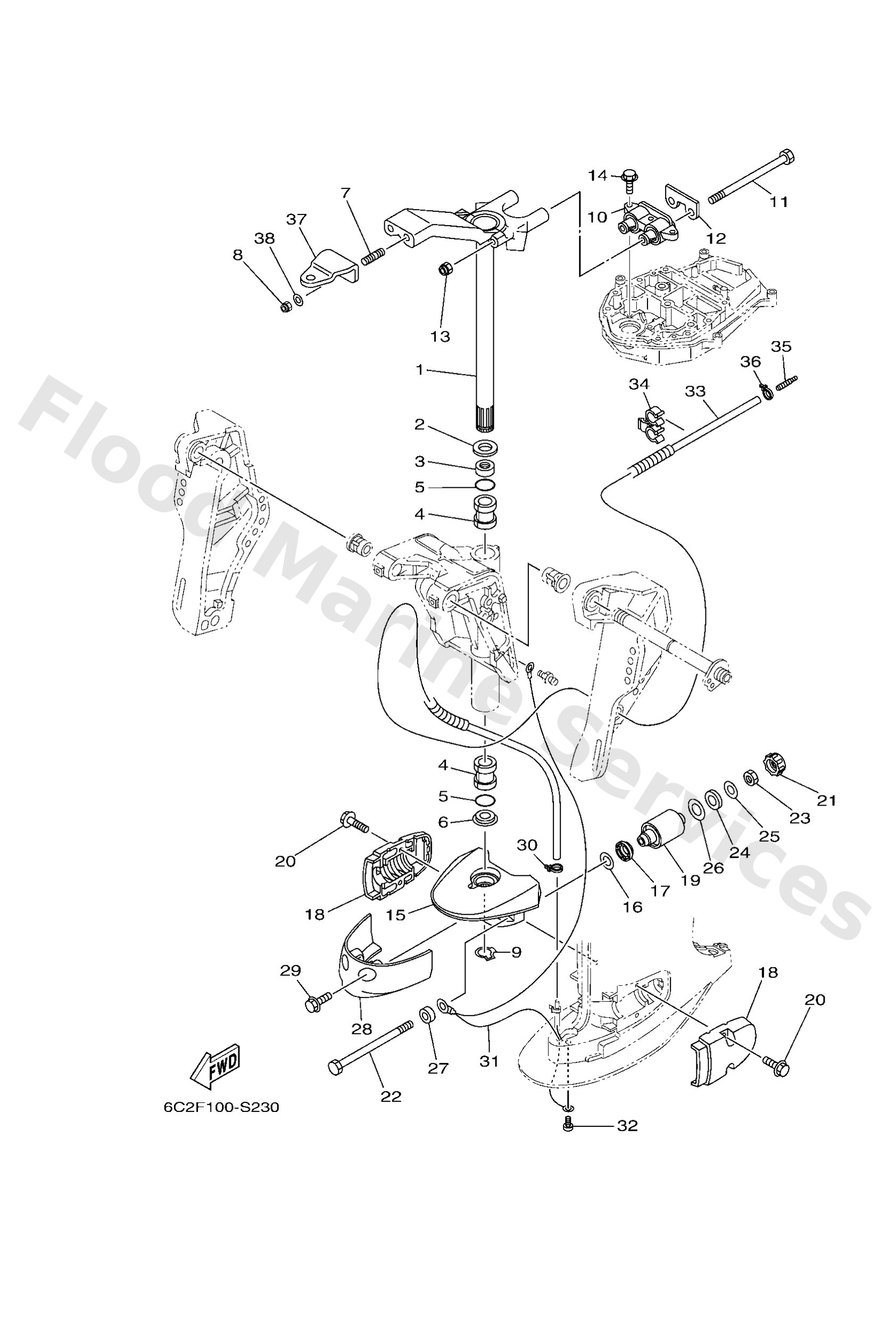

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69W42510018D
Steering bracket assembly
Loading…
↗
2
9020130M00
Washer, plate(6h1)
Loading…
↗
3
9038630M78
Bush(6h0)
Loading…
↗
4
9038630M77
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011610063
Bolt, stud
Loading…
↗
8
9018510027
Nut, self-locking
Loading…
↗
9
9341028M06
Circlip (688)
Loading…
↗
10
64J4451400
Mount damper, upper side
Loading…
↗
11
9010908229
Bolt
Loading…
↗
12
69W4452601
Plate
Loading…
↗
13
9018508018
Nut, self-locking
Loading…
↗
14
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
15
69W44551008D
Housing, lower mount rubber 1
Loading…
↗
16
9020112M16
Washer, plate (679)
Loading…
↗
17
6C54388500
Grommet
Loading…
↗
18
6C544552008D
Housing, lower mount rubber 2
Loading…
↗
19
69W4455500
Mount damper, lower side
Loading…
↗
20
9011908094
Bolt, with washer
Loading…
↗
21
6C54457500
Damper, lower mount rubber
Loading…
↗
22
9010912MA3
Bolt
Loading…
↗
23
9538012700
Nut(6t4)
Loading…
↗
24
9020221100
Washer plate (663)
Loading…
↗
25
9020113M19
Washer, plate (663)
Loading…
↗
26
9020122M05
Washer, plate
Loading…
↗
27
9038712057
Collar
Loading…
↗
28
67C44553008D
Cover, lower mount
Loading…
↗
29
9759508520
Bolt(6td)
Loading…
↗
30
9046511M10
Clamp
Loading…
↗
31
67C8212710
Wire, lead 2
Loading…
↗
32
9788506008
Screw, pan head(6a3)
Loading…
↗
33
6CJ4438500
Hose, water 1
Loading…
↗
34
9046410006
Clamp
Loading…
↗
35
6E58355800
End, nipple
Loading…
↗
37
65W4851101
Hook, steering
Loading…
↗
38
9020110049
Washer, plate
Loading…
↗
