FT9.9DE (2003)
BRACKET 2

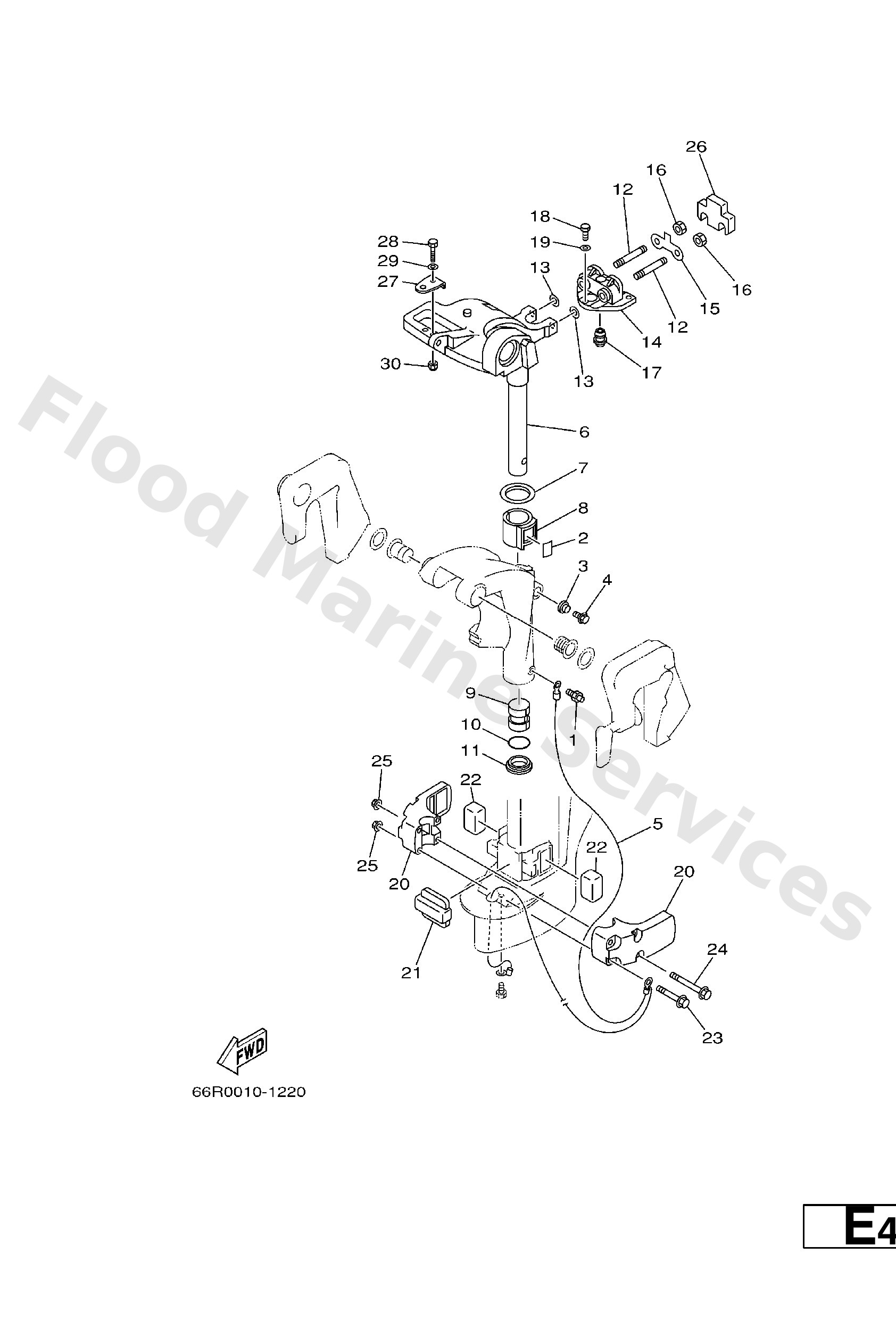

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
93700−06M03
Nipple, grease(6a1)
Loading…
↗
2
63V−42528−00
Plate, friction
Loading…
↗
3
689−43373−01
Seal, damper
Loading…
↗
4
90105−06M07
Bolt (689)
Loading…
↗
5
66M−82127−00
Wire, Lead 2
Loading…
↗
6
66M−42511−11−4D
L,X
Bracket, steering
Loading…
↗
7
90209−40008
Washer
Loading…
↗
8
65F−42537−00
Bushing, pivot shaft
Loading…
↗
9
90386−30048
Bush
Loading…
↗
10
93210−29M94
O-ring(6h1)
Loading…
↗
11
90386−30M60
Bush(6j8)
Loading…
↗
12
90116−08M54
Bolt, stud(63v)
Loading…
↗
13
90201−08M06
Washer, plate
Loading…
↗
14
66M−44514−00−4D
Mount damper, upper side
Loading…
↗
15
66M−44526−00
Plate
Loading…
↗
16
95380−08600
Nut (661)
Loading…
↗
17
66M−44366−00
Damper, water seal
Loading…
↗
18
97075−06025
Bolt
Loading…
↗
19
92995−06600
Washer, plain (646)
Loading…
↗
20
66M−44551−00−4D
Housing, lower mount rubber 1
Loading…
↗
21
66M−44557−00
Mount damper, lower front
Loading…
↗
22
682−44555−30
Mount damper, lower side
Loading…
↗
23
90119−08M45
Bolt, with washer
Loading…
↗
24
90119−08M46
Bolt, with washer
Loading…
↗
25
90179−08M34
Nut
Loading…
↗
26
66R−44533−00
Damper, upper mount rubber
Loading…
↗
27
63V−48511−01
Hook, steering
Loading…
↗
28
97075−08035
Bolt(70w)
Loading…
↗
29
92995−08600
Washer, plain (663)
Loading…
↗
30
90185−08057
Nut, nylon (6j8)
Loading…
↗
