FT9.9DE (2006)
BRACKET 2

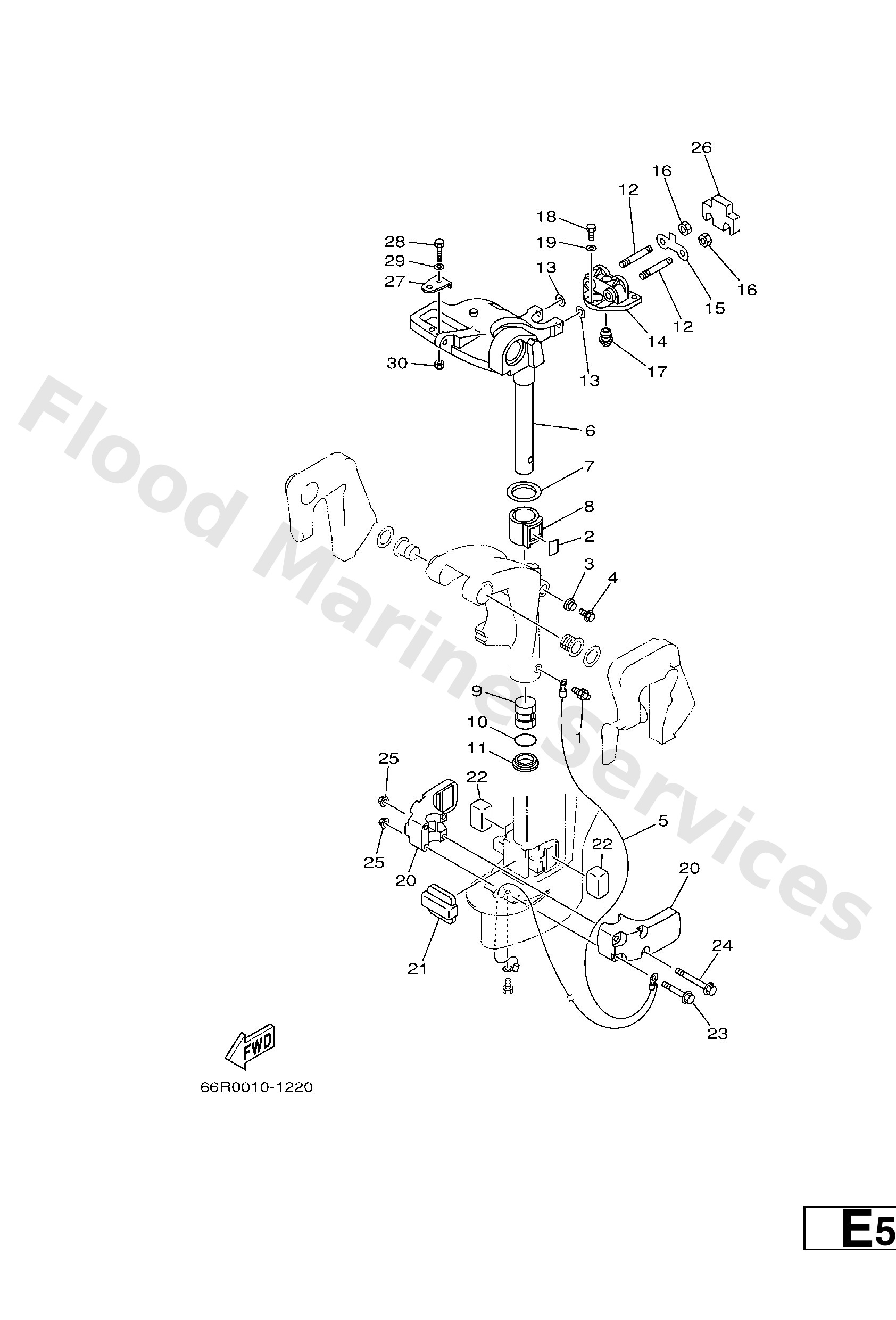

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9370006M03
Nipple, grease(6a1)
Loading…
↗
2
63V4252800
Plate, friction
Loading…
↗
3
6894337301
Seal, damper
Loading…
↗
4
9010506M07
Bolt (689)
Loading…
↗
5
66M8212700
Wire, Lead 2
Loading…
↗
6
66M42511114D
Bracket, steering
Loading…
↗
7
9020940008
Washer
Loading…
↗
8
65F4253700
Bushing, pivot shaft
Loading…
↗
9
9038630048
Bush
Loading…
↗
10
9321029M94
O-ring(6h1)
Loading…
↗
11
9038630M60
Bush(6j8)
Loading…
↗
12
9011608M54
Bolt, stud(63v)
Loading…
↗
13
9020108M06
Washer, plate
Loading…
↗
14
66M44514004D
Mount damper, upper side
Loading…
↗
15
66M4452600
Plate
Loading…
↗
16
9538008600
Nut (661)
Loading…
↗
17
66M4436600
Damper, water seal
Loading…
↗
18
9707506025
Bolt
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
66M44551004D
Housing, lower mount rubber 1
Loading…
↗
21
66M4455700
Mount damper, lower front
Loading…
↗
22
6824455530
Mount damper, lower side
Loading…
↗
23
9011908M45
Bolt, with washer
Loading…
↗
24
9011908M46
Bolt, with washer
Loading…
↗
25
9017908M34
Nut
Loading…
↗
26
66R4453300
Damper, upper mount rubber
Loading…
↗
27
63V4851101
Hook, steering
Loading…
↗
28
9707508035
Bolt(70w)
Loading…
↗
29
9299508600
Washer, plain (663)
Loading…
↗
30
9018508057
Nut, nylon (6j8)
Loading…
↗
