LF150CB (2023)
BRACKET 2

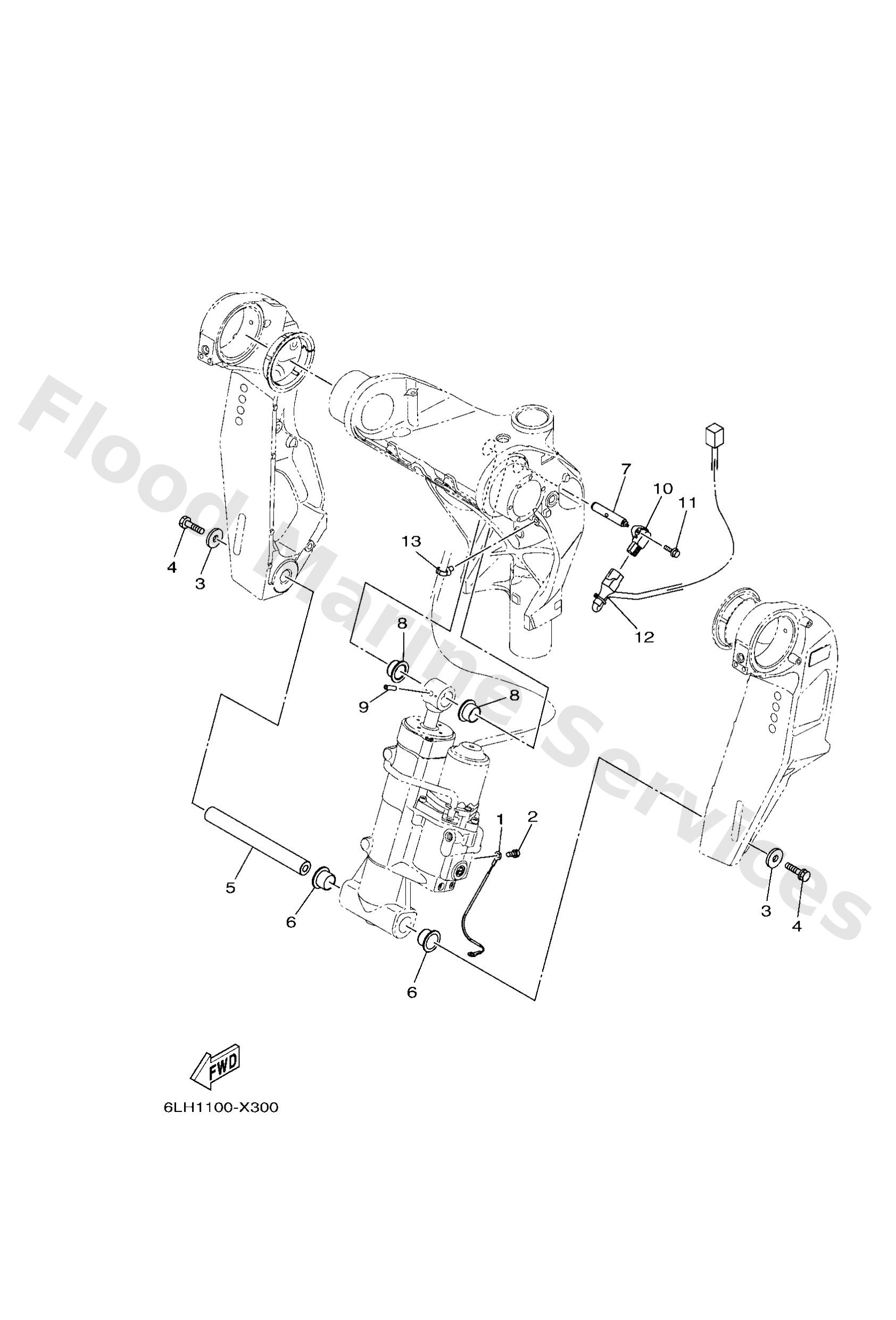

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6T48211700
Wire, lead
Loading…
↗
2
95D9506010
Bolt, flange deep recess
Loading…
↗
3
9020110060
Washer, plate
Loading…
↗
4
9011910054
Bolt, with washer
Loading…
↗
5
6BC4381800
Pin, lower shock mount
Loading…
↗
6
9038622M98
Bush(61u)
Loading…
↗
7
6LH4312600
Pin, upper shock mount
Loading…
↗
9
9169060022
Pin, spring
Loading…
↗
10
6GR8588700
Sensor angle
Loading…
↗
11
9759505516
Bolt, with washer
Loading…
↗
12
6LH8255300
Extension, wire lead
Loading…
↗
13
9046431002
Clamp
Loading…
↗
