Yamaha Outboard Parts - BRACKET 2 - LZ250DETO (2003) | Flood Marine

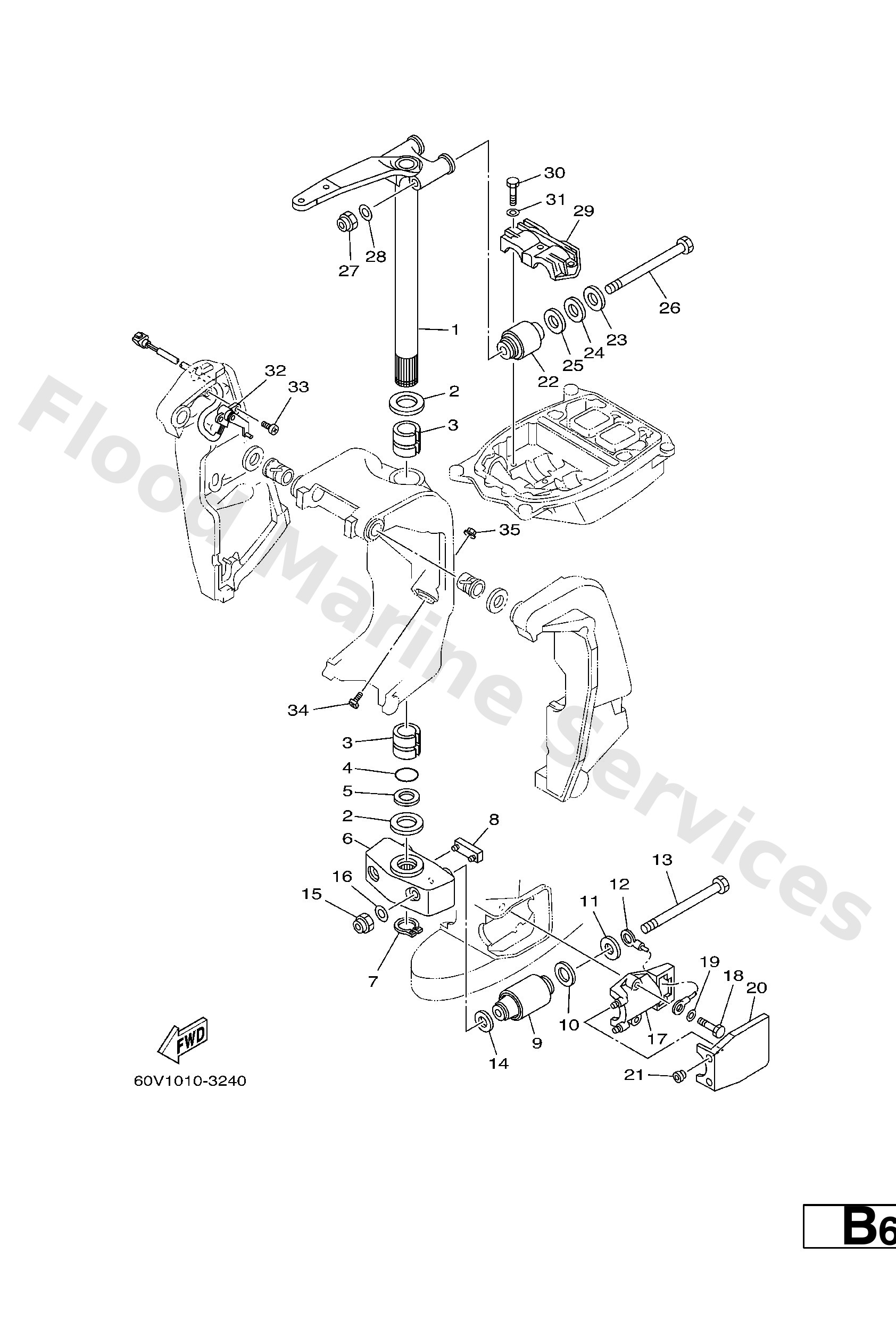

Diagram: BRACKET 2

Diagram

Parts List

Reference
Description
Price


1
60V−42510−30−8D U
Steering Bracket assembly
Loading…

↗
1
60V−42510−20−8D X
Steering Bracket assembly
Loading…

↗
2
90201−40M00
Washer, plate(61a)
Loading…

↗
3
90386−39M89
Bush(61a)
Loading…

↗
4
93210−35321
O-ring (3m7)
Loading…

↗
5
90202−40M47
Washer, plate(61a)
Loading…

↗
6
61A−44551−01−8D
Housing, lower mount rubber
Loading…

↗
7
93410−37M04
Circlip (6e5)
Loading…

↗
8
61A−44575−00
Damper, lower mount rubber
Loading…

↗
9
60V−44555−00−94
Mount damper, lower side
Loading…

↗
10
90202−32M19
Washer, plate (6e5)
Loading…

↗
11
90201−16M55
Washer, plate (6e5)
Loading…

↗
12
6E5−82149−00
Wire, lead 3
Loading…

↗
13
90109−14M48
Bolt
Loading…

↗
14
90201−15M58
Washer, plate (6e5)
Loading…

↗
15
95380−14800
Nut, crown (6e5)
Loading…

↗
16
92995−14600
Washer (6e5)
Loading…

↗
17
61A−44552−01−94
Housing, lower mount rubber
Loading…

↗
18
97095−10045
Bolt(64d)
Loading…

↗
19
92995−10600
Washer, plate
Loading…

↗
20
61A−44553−00−8D
Cover, lower mount
Loading…

↗
21
6A0−15789−00
Damper
Loading…

↗
22
60V−44514−00−94
Mount damper, upper side
Loading…

↗
23
90201−16M01
Washer, plate(61a)
Loading…

↗
24
90202−28M46
Washer, plate(61a)
Loading…

↗
25
90201−28M01
Washer, plate(61a)
Loading…

↗
26
90109−14M10
Bolt
Loading…

↗
27
90185−14M00
Nut, self-locking(61a)
Loading…

↗
29
61A−44511−00−94
Cover, upper mount
Loading…

↗
32
69J−83672−00
Trim sender
Loading…

↗
33
97885−06016
Screw, pan head(6b0)
Loading…

↗
34
61A−43376−00
Bolt, thrust receiver
Loading…

↗
35
95780−10300
Nut, nylon (6e5)
Loading…

↗
