XF425NSA7 (2019)
BRACKET 2

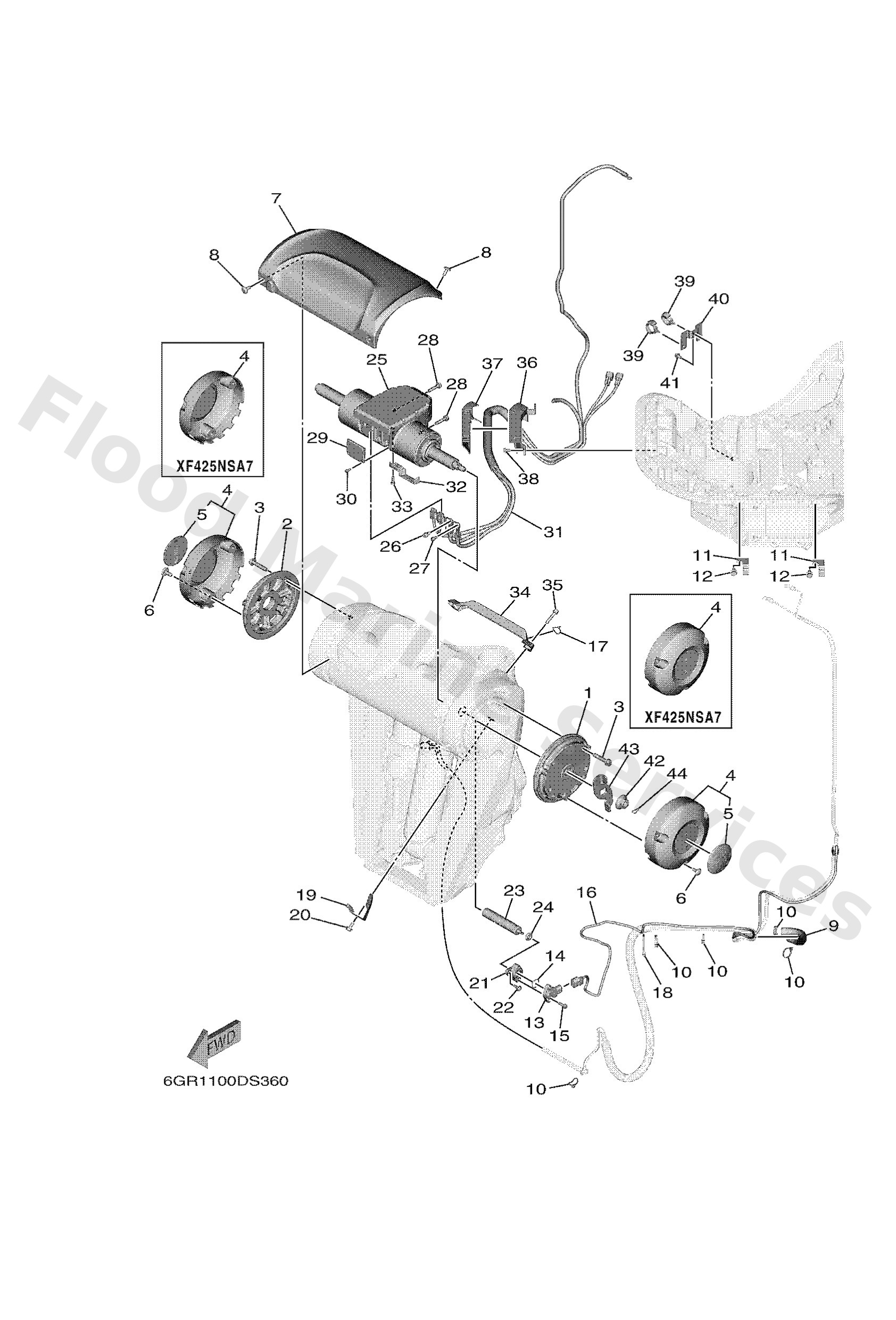

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6GR4334100
Cover, swivel side 1
Loading…
↗
2
6GR4334200
Cover, swivel side 2
Loading…
↗
3
9011908176
Bolt, with washer
Loading…
↗
4
6GR4367900
Cover
Loading…
↗
4
6GRW436G00CE
WHITE
Sbw side cover assembly
Loading…
↗
4
6GRW436G008D
GRAY
Sbw side cover assembly
Loading…
↗
5
6DA4269700
Tuning fork mark
Loading…
↗
6
9011106144
Bolt,hex. socket button
Loading…
↗
7
6GR4331800
Cover
Loading…
↗
7
6GR4331800CE
WHITE
Cover
Loading…
↗
7
6GR43318008D
GRAY
Cover
Loading…
↗
9
6GR2486400
Tube
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
9046210033
Clamp
Loading…
↗
12
95D9506012
Bolt, flange deep recess
Loading…
↗
13
6GR8588700
Sensor angle
Loading…
↗
14
9321017MF9
O-ring(6u1)
Loading…
↗
15
9759505516
Bolt, with washer
Loading…
↗
16
6GR8255300
Extension, wire lead
Loading…
↗
18
9046455002
Clamp
Loading…
↗
19
6GR4381J00
Plate
Loading…
↗
21
6GR4382A00
Adaptor 1
Loading…
↗
22
9014905044
Screw
Loading…
↗
23
6GR4312600
Pin, upper shock mount
Loading…
↗
24
9321006ME6
O-ring
Loading…
↗
25
6GR4240100
Power steering cylinder assembly
Loading…
↗
26
6GR4433100
Bolt, 1
Loading…
↗
27
6GR4433200
Bolt, 2
Loading…
↗
28
9758008535
Bolt, with washer
Loading…
↗
29
6GR4213400
Cover
Loading…
↗
30
9138004010
Bolt,socket
Loading…
↗
31
6GR438A001
Steering, wire harness assembly
Loading…
↗
32
6GR4853800
Clamp, cable 1
Loading…
↗
33
97D9506018
Bolt, hexagon deep recess
Loading…
↗
34
6GR4771600
Cover
Loading…
↗
35
9011006191
Bolt, hexagon socket head
Loading…
↗
36
6GR4312100
Protector
Loading…
↗
37
6GR4744500
Protector
Loading…
↗
39
9046412183
Clamp(jn2)
Loading…
↗
40
6GR4853900
Clamp, cable 2
Loading…
↗
42
9017914007
Nut
Loading…
↗
43
6GR4337800
Washer
Loading…
↗
44
9149020025
Pin, cotter
Loading…
↗
