Z200NETO (2002)
BRACKET 2

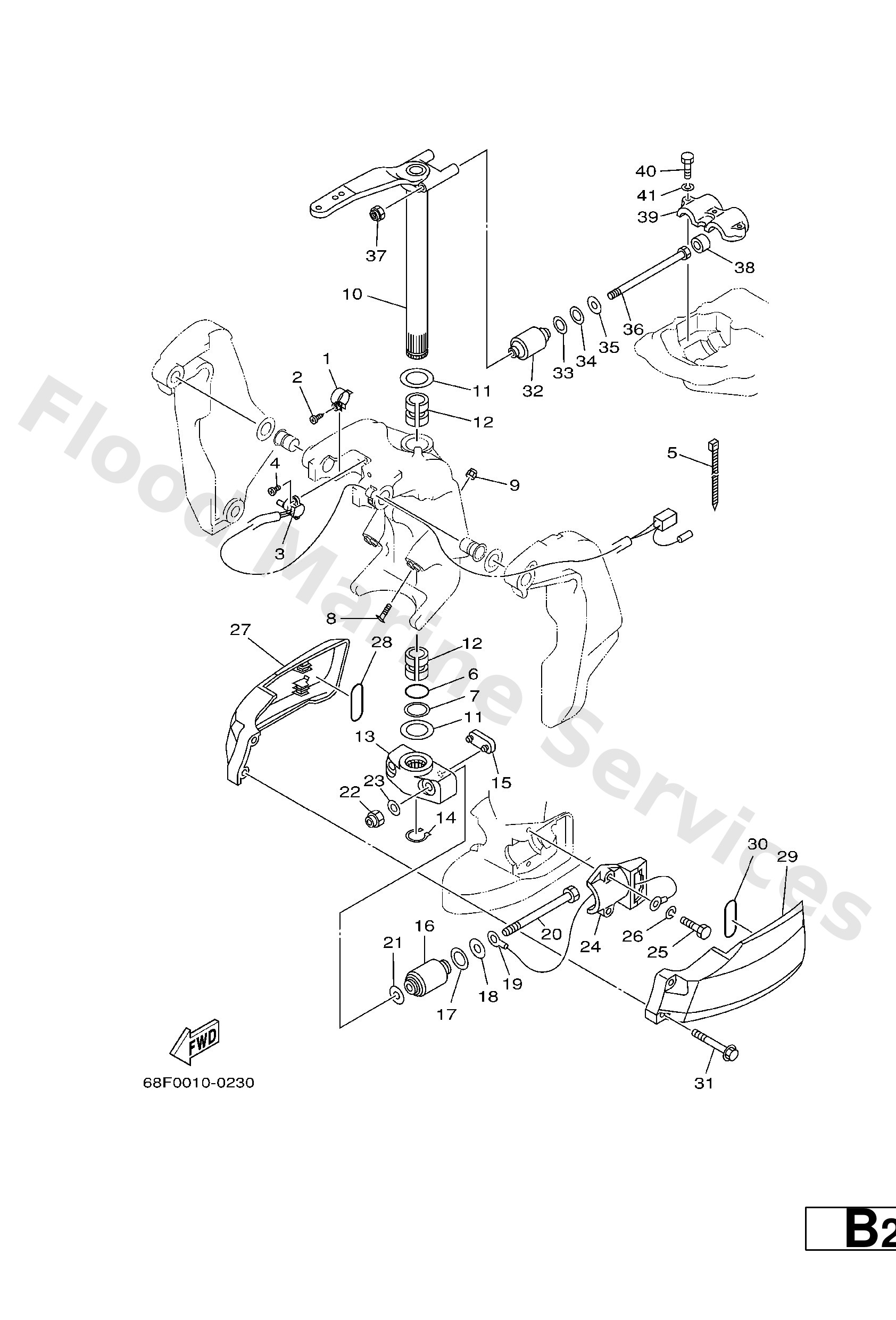

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E--43139--02
Cam, trim sender (with screw)
Loading…
↗
2
97780--60525
Screw, tapping(65j)
Loading…
↗
3
64E--83672--02
Trim sender
Loading…
↗
4
97885--06016
Screw, pan head(6b0)
Loading…
↗
5
90465--11M10
Clamp
Loading…
↗
6
93210--37MH7
O-ring(61u)
Loading…
↗
7
90202--40M47
Washer, plate(61a)
Loading…
↗
8
61A--43376--00
Bolt, thrust receiver
Loading…
↗
9
95780--10300
Nut, nylon (6e5)
Loading…
↗
10
68F42510A08D
L
Steering bracket assembly
Loading…
↗
10
68F42510B08D
X
Steering bracket assembly
Loading…
↗
11
90201--38M60
Washer, plate (6e5)
Loading…
↗
12
90386--38M32
Bush(6e5)
Loading…
↗
13
68F44551008D
Housing, lower mount rubber
Loading…
↗
14
93410--37M04
Circlip (6e5)
Loading…
↗
15
6E5--44575--00
Damper, lower mount rubber
Loading…
↗
16
6G5--44555--00--94
Mount damper, lower side
Loading…
↗
17
90202--32M19
Washer, plate (6e5)
Loading…
↗
18
90201--16M55
Washer, plate (6e5)
Loading…
↗
19
6E5--82149--00
Wire, lead 3
Loading…
↗
20
9010914MA5
Bolt
Loading…
↗
21
90201--15M58
Washer, plate (6e5)
Loading…
↗
22
90185--14M00
Nut, self-locking(61a)
Loading…
↗
23
92995--14600
Washer (6e5)
Loading…
↗
24
68F44552008D
Housing, lower mount rubber
Loading…
↗
25
97095--10045
Bolt(64d)
Loading…
↗
26
92995--10100
Ybs67-10 washer, spring
Loading…
↗
27
68F44553004D
Cover, lower mount
Loading…
↗
28
93210--41042
O-ring (132)
Loading…
↗
29
68F44556004D
Cover, lower mount 2
Loading…
↗
31
9011906MA8
Bolt, with washer
Loading…
↗
32
6G5--44514--00--94
Mount damper, upper side
Loading…
↗
33
90201--26M57
Washer, plate (6e5)
Loading…
↗
34
90202--26M18
Washer, plate (6e5)
Loading…
↗
35
90201--14M56
Washer, plate (6e5)
Loading…
↗
36
90109--12M37
Bolt
Loading…
↗
37
90185--12M12
Nut, self-locking(6e5)
Loading…
↗
38
663--44575--00
Damper, lower mount rubber
Loading…
↗
39
6E5--44511--00--5B
Cover, upper mount
Loading…
↗
