40VMHO (2011)
BRACKET 3

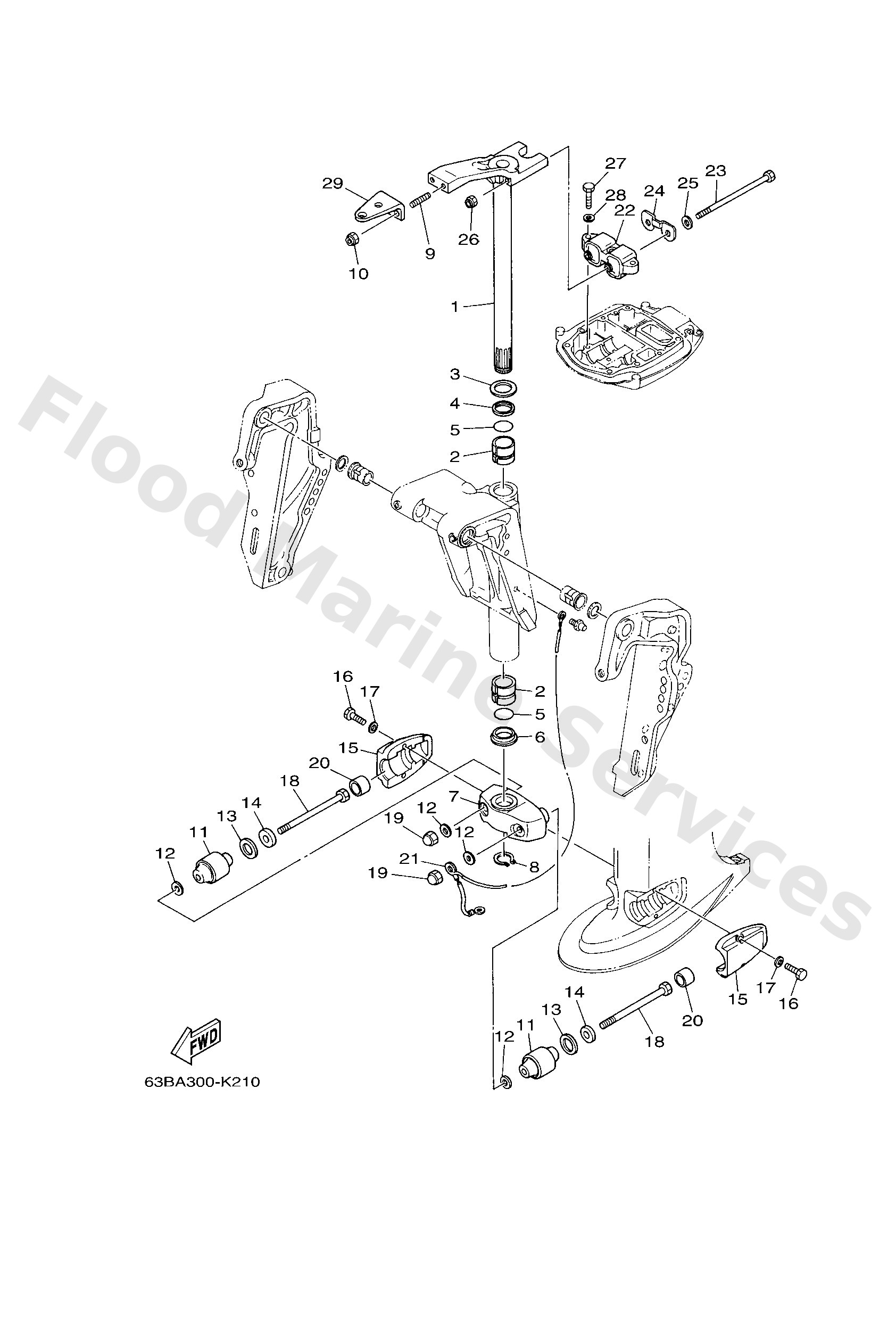

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
63B42510114D
L(21.0")
Steering bracket assembly
Loading…
↗
1
63B42510014D
S(16.0")
Steering bracket assembly
Loading…
↗
2
9038630M77
Bush(6h0)
Loading…
↗
3
9020130M00
Washer, plate(6h1)
Loading…
↗
4
9038630M78
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
63D44551014D
Housing, lower mount rubber 1
Loading…
↗
8
9341028M06
Circlip (688)
Loading…
↗
9
9011610175
Bolt, stud
Loading…
↗
10
9018510051
Nut, self-locking
Loading…
↗
11
6874455500
S(16.0")
Mount damper, lower side
Loading…
↗
11
63D4455500
L(21.0")
Mount damper, lower side
Loading…
↗
12
9020112M16
Washer, plate (679)
Loading…
↗
13
9020225M04
Washer, plate (663)
Loading…
↗
14
9020113M19
Washer, plate (663)
Loading…
↗
15
63D44552014D
Housing, lower mount rubber
Loading…
↗
16
9707508030
Bolt, hexagon (fj1)
Loading…
↗
17
9299508100
Ybs67-8 washer, spring
Loading…
↗
18
9010912M21
Bolt (6h3)
Loading…
↗
19
9538012800
Nut crown(663)
Loading…
↗
20
6634457500
Damper, lower mount rubber
Loading…
↗
21
63D8212700
S(16.0")
Wire, lead 2
Loading…
↗
21
63D8212710
L(21.0")
Wire, lead 2
Loading…
↗
22
63D445140194
Mount damper, upper side
Loading…
↗
23
9010108M15
Bolt
Loading…
↗
24
63D4452600
Plate
Loading…
↗
25
9020109425
Washer, plate (663)
Loading…
↗
26
9018508045
Nut, self-locking
Loading…
↗
29
63D4851100
STEERING GUIDE
Hook, steering
Loading…
↗
