40XMH (2003)
BRACKET 3

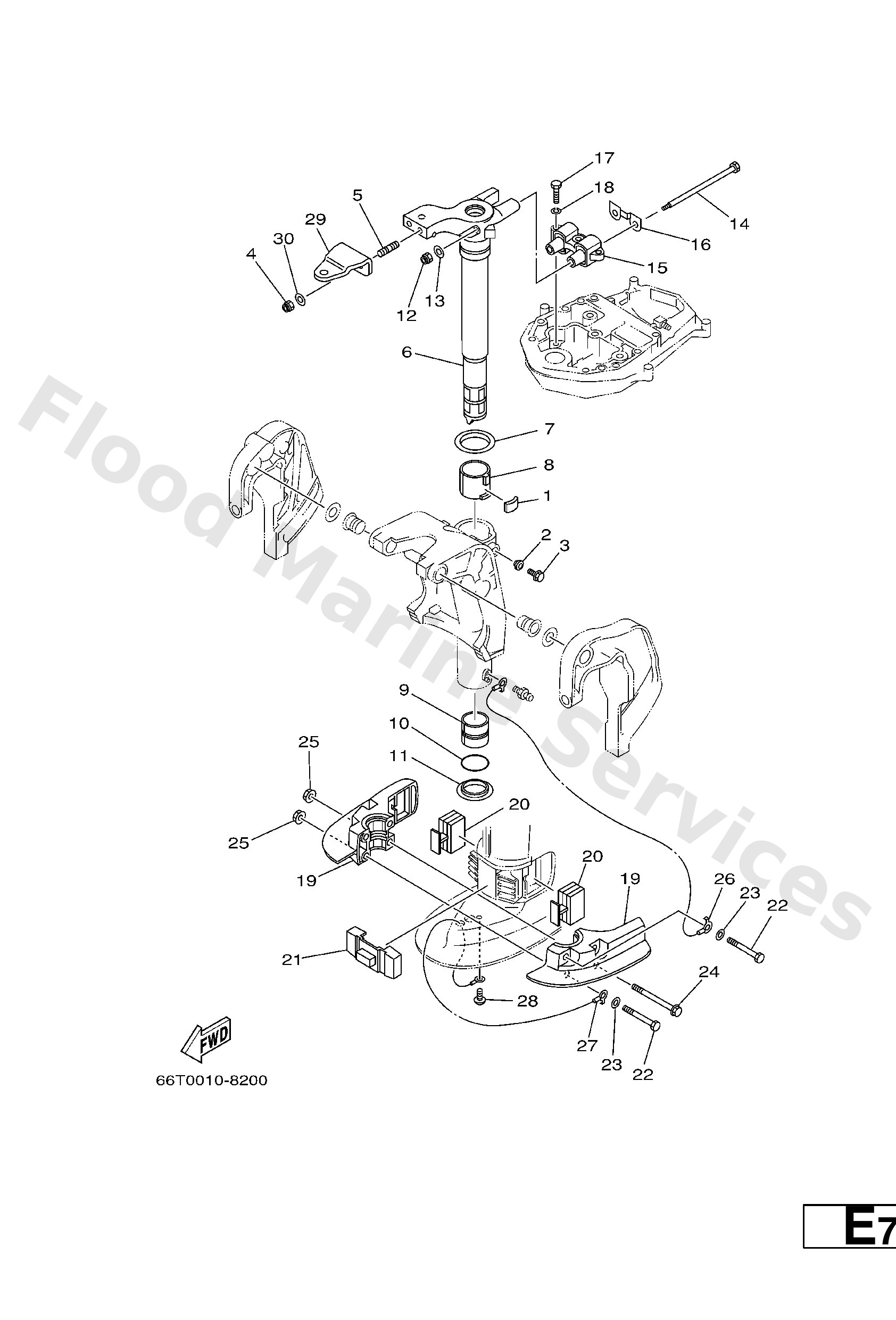

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
648−42528−00
Plate, friction
Loading…
↗
2
65W−43373−00
Seal, damper
Loading…
↗
3
90105−08M76
Bolt, washer based
Loading…
↗
4
90185−10051
Nut, self-locking
Loading…
↗
5
90116−10M28
Bolt, stud
Loading…
↗
7
90209−52M00
Washer (676)
Loading…
↗
8
90386−52M02
Bushing (676)
Loading…
↗
9
90386−44M03
Bushing (676)
Loading…
↗
10
93210−43MJ0
O-ring
Loading…
↗
11
90386−44M99
Bush
Loading…
↗
12
90185−08045
Nut, self-locking
Loading…
↗
13
92995−08200
Ybs66-8 washer, plain
Loading…
↗
14
90101−08M86
Bolt (6h4)
Loading…
↗
16
66T−44526−30
X
Plate
Loading…
↗
16
66T−44526−00
S/L
Plate
Loading…
↗
17
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
18
92995−08100
Ybs67-8 washer, spring
Loading…
↗
20
65W−44555−10
Mount damper, lower side
Loading…
↗
21
66T−44575−00
Damper, lower mount rubber
Loading…
↗
22
97075−10070
Bolt, hexagon w/w deep recess
Loading…
↗
23
92995−10600
Washer, plate
Loading…
↗
24
90119−10M04
Bolt, with washer
Loading…
↗
25
90179−10M33
Nut
Loading…
↗
26
66T−82127−00
Wire, lead 2
Loading…
↗
27
66T−82127−10
Wire, lead 2
Loading…
↗
28
97885−06008
Screw, pan head(6a3)
Loading…
↗
29
65W−48511−00
Hook, steering
Loading…
↗
29
670−48511−00−4D
FOR VOLGA
Hook, Steering
Loading…
↗
30
90201−10120
Washer, plate
Loading…
↗
