50HMHO (2021)
BRACKET 3

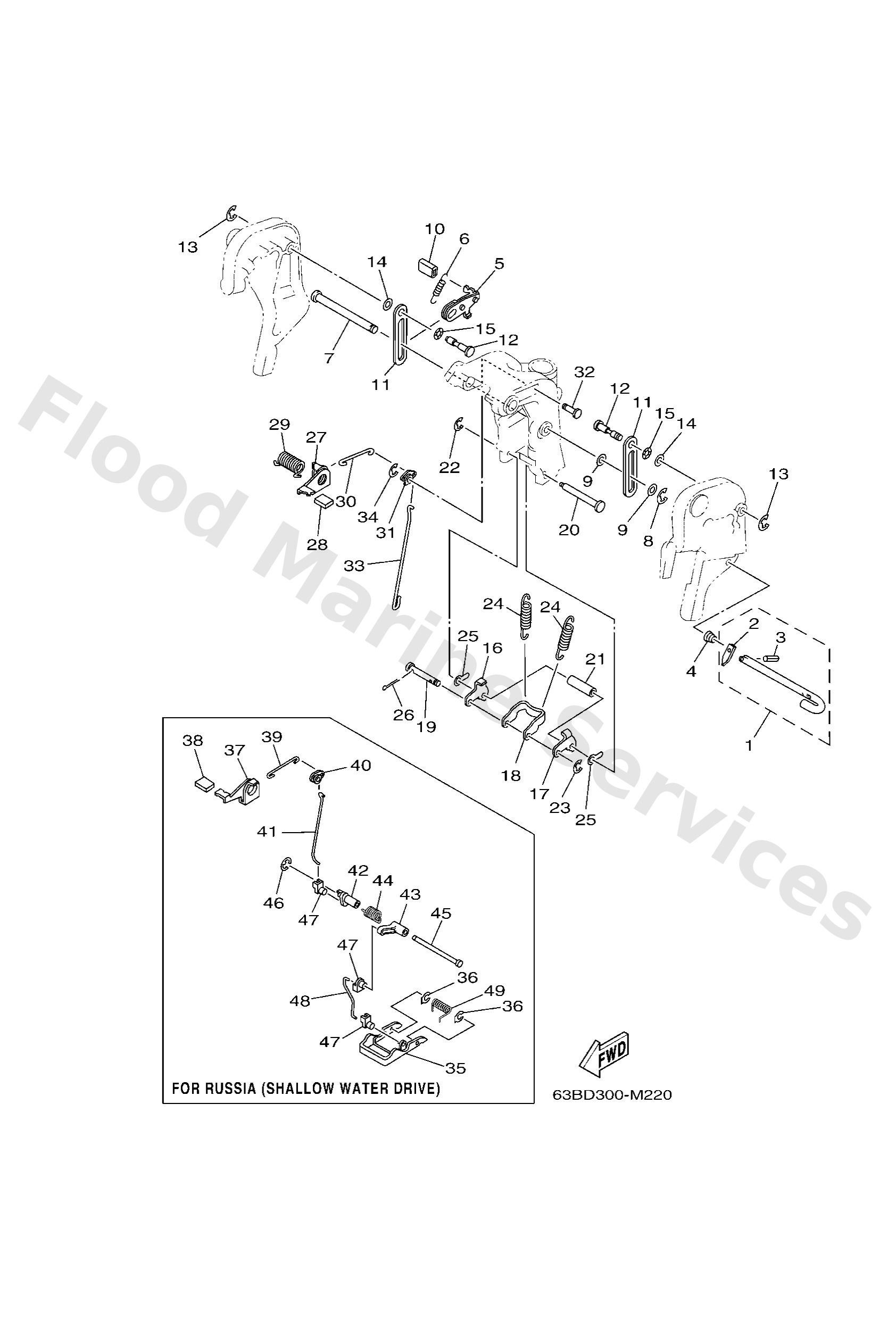

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6H44316001
Tilt rod assembly
Loading…
↗
2
6764316500
Stopper plate, titl lock rod
Loading…
↗
3
9169030010
Pin, spring (663)
Loading…
↗
4
9050210M04
Spring, conical(6f5)
Loading…
↗
5
6J84318101
Lever, tilt stop 1
Loading…
↗
6
9050612M25
Spring, tension(6h4)
Loading…
↗
7
9024912M28
Pin(6h4)
Loading…
↗
8
9908010600
Circlip
Loading…
↗
9
9020212031
Washer, plate 6484412600
Loading…
↗
10
6824331801
Cover
Loading…
↗
11
6J84362700
Stopper
Loading…
↗
12
9024912M27
Pin(6f6)
Loading…
↗
15
9020612M16
Washer, wave(6j8)
Loading…
↗
16
6J84361400
Plate, tilt lock
Loading…
↗
17
6J84361500
Plate, tilt lock
Loading…
↗
18
6J84361301
Arm, tilt lock
Loading…
↗
19
6H44365900
Shaft, reverse lock
Loading…
↗
20
6J84361101
Shaft, tilt lock
Loading…
↗
21
9038707M64
Collar (6h4)
Loading…
↗
22
9343006M02
Circlip (689)
Loading…
↗
46
9908005600
FOR RUS
Circlip(22k)
Loading…
↗
24
9050632M22
Spring, tension(6j8)
Loading…
↗
25
6H44367400
EXCEPT FOR RUS
Washer 2
Loading…
↗
26
9149020010
Pin, cotter
Loading…
↗
27
6J84363100
Lever, tilt
Loading…
↗
38
6J84363301
FOR RUS
Cover, tilt lever
Loading…
↗
29
9050818M24
EXCEPT FOR RUS
Spring, torsion(6h4)
Loading…
↗
29
9050818M23
FOR RUS
Spring, torsion(6h4)
Loading…
↗
39
6H44361600
FOR RUS
Rod, tilt lock 1
Loading…
↗
40
6J84364100
FOR RUS
Lever, tilt
Loading…
↗
32
9024906M23
EXCEPT FOR RUS
Pin(6e7)
Loading…
↗
32
9024906M24
FOR RUS
Pin(6h4)
Loading…
↗
33
6J84361700
Rod, tilt lock
Loading…
↗
35
6J84368101
FOR RUS
Lever, shallow water drive
Loading…
↗
36
6J84367300
FOR RUS
Washer 1
Loading…
↗
37
6J84363110
FOR RUS
Lever, tilt
Loading…
↗
41
6J84361710
FOR RUS
Rod, tilt lock
Loading…
↗
42
6J84318600
FOR RUS
Lever
Loading…
↗
43
6J84318700
FOR RUS
Lever 2
Loading…
↗
44
9050825M21
FOR RUS
Spring, torsion(6h4)
Loading…
↗
45
9024907M25
FOR RUS
Pin(6h4)
Loading…
↗
47
6J84126200
FOR RUS
Joint, choke lever
Loading…
↗
48
6J84361610
FOR RUS
Rod, tilt lock
Loading…
↗
49
9050820M22
FOR RUS
Spring, torsion(6h4)
Loading…
↗
