75AET (2002)
BRACKET 3

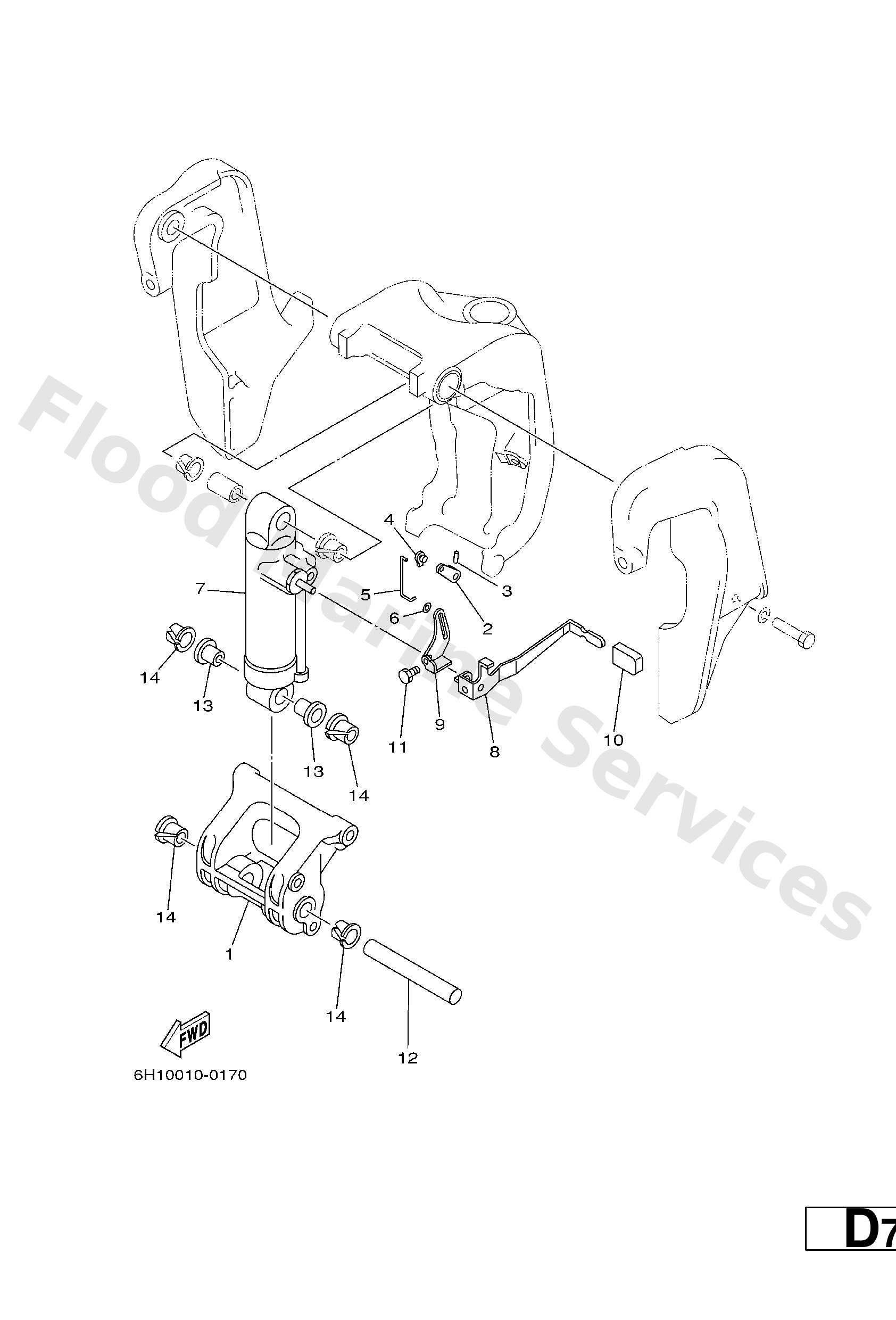

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
68843128014D
Spacer, clamp bracket
Loading…
↗
2
6884318600
Lever
Loading…
↗
3
91690--30020
Pin, spring (6h4)
Loading…
↗
4
6J8--41262--00
Joint, choke lever
Loading…
↗
5
6884361600
Rod, tilt lock
Loading…
↗
6
9020203M51
Washer, plate(688)
Loading…
↗
7
68843170044D
Shock absorber sub-assembly
Loading…
↗
8
6884363110
Lever, tilt
Loading…
↗
9
6884365100
Lever, reverse lock1
Loading…
↗
10
682--43318--01
Cover
Loading…
↗
11
97080--06010
Bolt
Loading…
↗
12
6884312402
Pin, lower shock mount
Loading…
↗
13
90386--18M63
Bush(6e5)
Loading…
↗
14
90386--18M35
Bush (688)
Loading…
↗
