E115AE (2003)
BRACKET 3

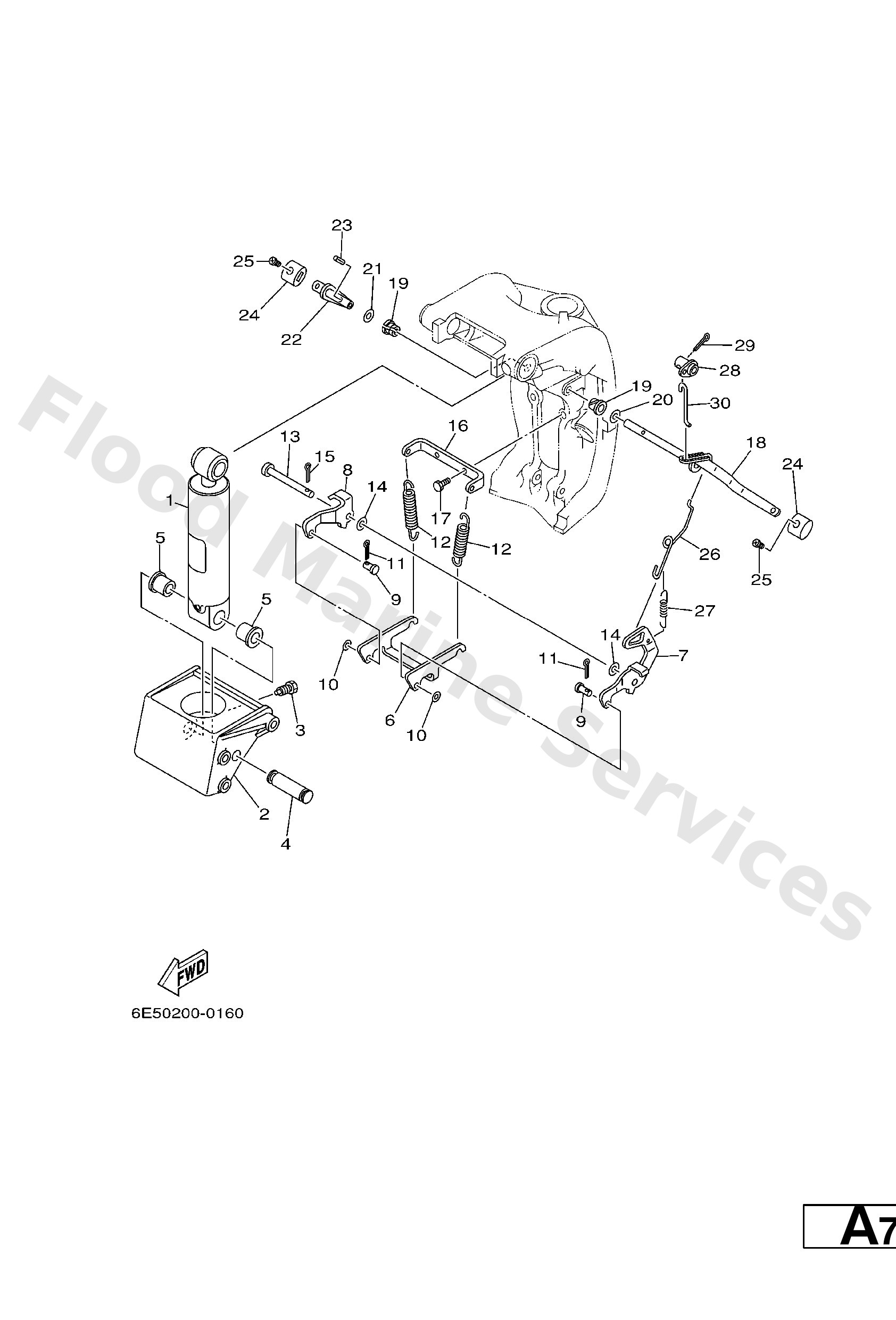

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6E5−43170−00−4D
Shock Absorber assembly
Loading…
↗
2
6E5−43128−00−8D
Spacer, clamp bracket
Loading…
↗
3
90109−06M07
Bolt (6e5)
Loading…
↗
4
6E5−43124−00
Pin, lower shock mount
Loading…
↗
5
90386−18M44
Bushing (6g5)
Loading…
↗
6
6E5−43613−00
Arm, tilt lock
Loading…
↗
7
6E5−43614−00
Plate, tilt lock 1
Loading…
↗
8
6E5−43615−00
Plate, Tilt Lock
Loading…
↗
9
90240−06M07
Pin, Clevis
Loading…
↗
10
92990−06600
Washer, plain (646)
Loading…
↗
11
91490−25012
Pin, cotter
Loading…
↗
12
90506−23M10
Spring, Tension
Loading…
↗
13
6E5−43659−00
Shaft, Reverse Lock
Loading…
↗
14
92995−08600
Washer, plain (663)
Loading…
↗
16
6E5−43679−00
Stopper, Hook
Loading…
↗
17
97095−06016
Bolt, hexagon deep recess
Loading…
↗
18
6E5−43630−01
Tilt Lever assembly
Loading…
↗
19
90386−08032
Bushing (650)
Loading…
↗
20
90202−08M08
Washer, Plate
Loading…
↗
22
61U−43631−00
Lever, Tilt
Loading…
↗
23
90254−03003
Pin, spring
Loading…
↗
24
6E5−43317−00
Grip
Loading…
↗
25
90152−05M00
24 −
Loading…
↗
26
6E5−43616−00
Rod, tilt lock
Loading…
↗
27
90506−09M09
Spring, Tension
Loading…
↗
28
688−43184−00
Collar, anchor lever
Loading…
↗
29
91490−30025
Pin cotter
Loading…
↗
30
6E5−43676−00
Hook
Loading…
↗
