BRACKET 3

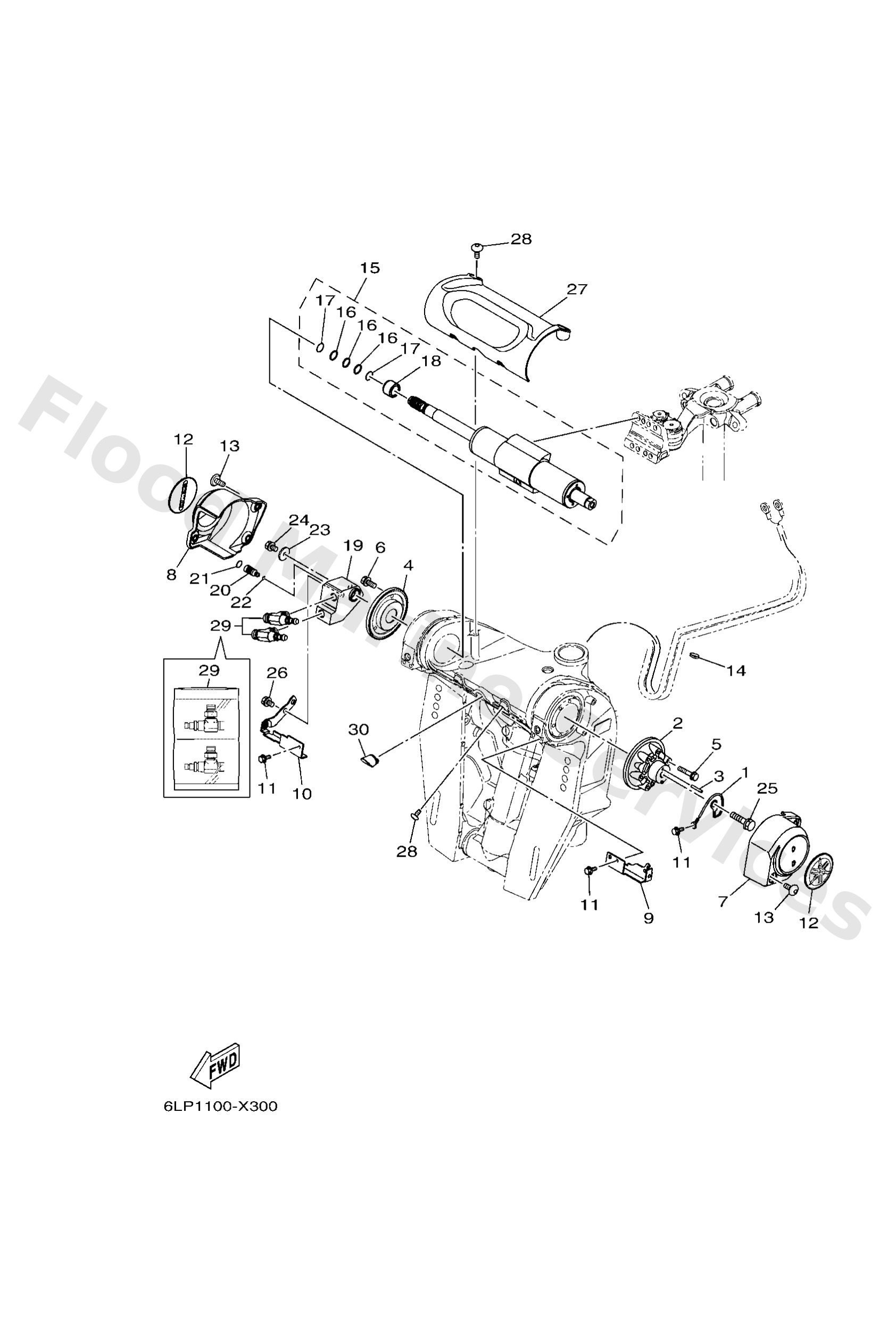

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6LH8214700
Wire, lead 5
Loading…
↗
2
6LH4334100
Cover, swivel side 1
Loading…
↗
3
9169040025
Pin, spring (6g0)
Loading…
↗
4
6LH4334200
Cover, swivel side 2
Loading…
↗
5
9011906323
Bolt, with washer
Loading…
↗
6
97E7506520
Bolt, hexagon w/w deep recess
Loading…
↗
7
6LP43381008D
Cover, 2
Loading…
↗
8
6LP43382008D
Cover, 3
Loading…
↗
9
6LP4452600
Plate
Loading…
↗
10
6LP4453600
Plate 2
Loading…
↗
11
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
12
6DA4269700
Tuning fork mark
Loading…
↗
13
9011106144
Bolt,hex. socket button
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
6LP6150100
Steering cylinder assembly
Loading…
↗
16
9321015414
O-ring (22u)
Loading…
↗
17
6LH2312B00
Ring, back up
Loading…
↗
18
6LH2225300
Collar, distance
Loading…
↗
19
6LP2295400
Adapter
Loading…
↗
20
6LH2244700
Needle, valve
Loading…
↗
21
9321010107
O-ring (4g0)
Loading…
↗
22
9321003494
O-ring(31m)
Loading…
↗
23
6LH4362700
Stopper
Loading…
↗
24
97D9506008
Bolt, hexagon deep recess
Loading…
↗
25
9011910058
Bolt, with washer
Loading…
↗
27
6LH43318008D
Cover
Loading…
↗
29
6LW6138500
Fitting, hose
Loading…
↗
30
6LH4388500
Grommet
Loading…
↗
