F225NCB (2023)
BRACKET 3

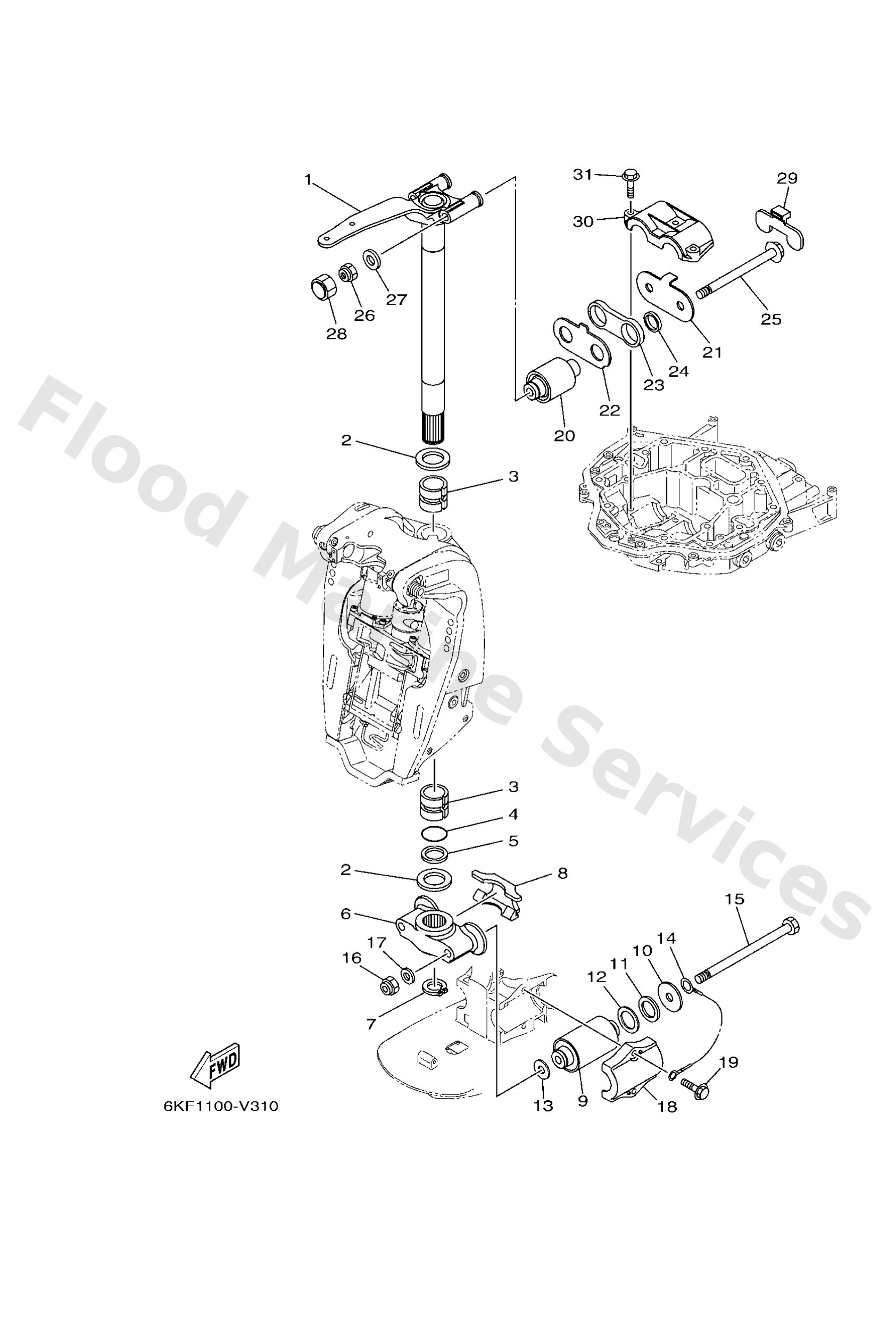

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6CE4251000CE
WHITE
Steering bracket assembly
Loading…
↗
1
6CE42510008D
GRAY
Steering bracket assembly
Loading…
↗
2
9020140M00
Washer, plate(61a)
Loading…
↗
3
9038639M89
Bush(61a)
Loading…
↗
4
9321035321
O-ring (3m7)
Loading…
↗
5
9020240M47
Washer, plate(61a)
Loading…
↗
6
6CE4455100CA
Housing, lower mount rubber 1
Loading…
↗
7
9341037M04
Circlip (6e5)
Loading…
↗
8
6CE4457400
Stopper, lower mount rubber
Loading…
↗
9
6KA4455500
Mount damper, lower side
Loading…
↗
10
9020116032
Washer, plate
Loading…
↗
11
9020232M19
Washer, plate (6e5)
Loading…
↗
12
9020135008
Washer, plate
Loading…
↗
13
9020115M58
Washer, plate (6e5)
Loading…
↗
14
6AW8214900
Wire, lead 3
Loading…
↗
15
9010114004
Bolt
Loading…
↗
16
9018514M00
Nut, self-locking(61a)
Loading…
↗
17
9299514600
Washer (6e5)
Loading…
↗
18
6AW4455200CA
Housing, lower mount rubber 2
Loading…
↗
19
9011910024
Bolt, with washer
Loading…
↗
20
6CE4451400
Mount damper, upper side
Loading…
↗
21
6CE4452600
Plate
Loading…
↗
22
6CE4453600
Plate 2
Loading…
↗
23
6CE4453201
Stopper, upper mount
Loading…
↗
24
9038728013
Collar
Loading…
↗
25
9010514005
Bolt, flange
Loading…
↗
28
6CE4419401
Cap
Loading…
↗
29
6CE4453300
Damper, upper mount rubber
Loading…
↗
30
6CE4451100
Cover, upper mount
Loading…
↗
