F25AMH (2007)
BRACKET 3

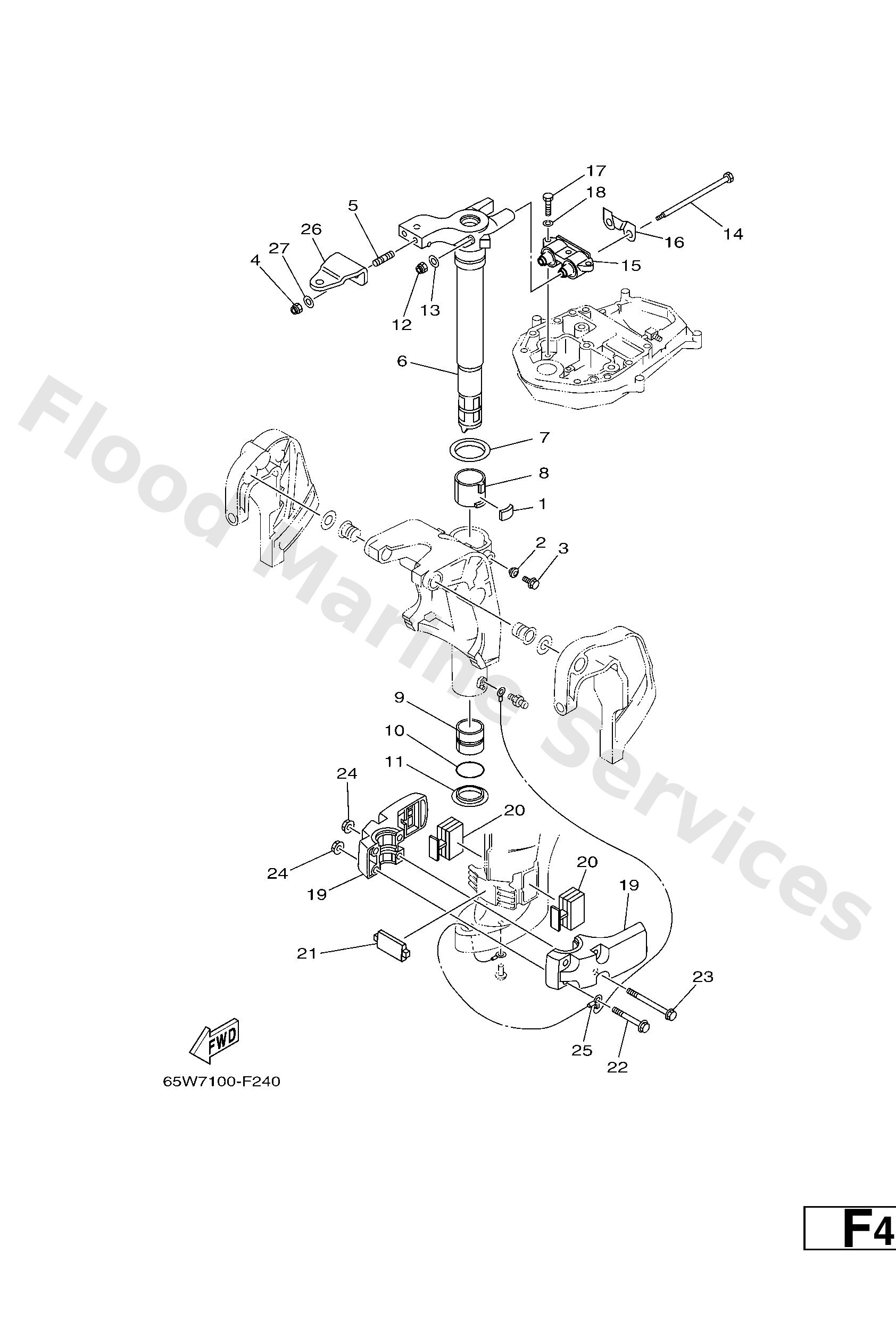

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6484252800
Plate, friction
Loading…
↗
2
65W4337300
Seal, damper
Loading…
↗
3
9010508M76
Bolt, washer based
Loading…
↗
4
9018510051
Nut, self-locking
Loading…
↗
5
9011610M28
Bolt, stud
Loading…
↗
6
65W42511004D
S(16.6")
Bracket, steering
Loading…
↗
6
65W42511104D
L(21.6")
Bracket, steering
Loading…
↗
7
9020952M00
Washer (676)
Loading…
↗
8
9038652M02
Bushing (676)
Loading…
↗
9
9038644M03
Bushing (676)
Loading…
↗
10
9321043MJ0
O-ring
Loading…
↗
11
9038644M99
Bush
Loading…
↗
12
9018508045
Nut, self-locking
Loading…
↗
13
9299508200
Ybs66-8 washer, plain
Loading…
↗
14
9010108M86
Bolt (6h4)
Loading…
↗
15
67C44514204D
Mount damper, upper side
Loading…
↗
16
66T4452630
Plate
Loading…
↗
17
9707508030
Bolt, hexagon (fj1)
Loading…
↗
18
9299508100
Ybs67-8 washer, spring
Loading…
↗
19
65W44551114D
Housing, lower mount rubber 1
Loading…
↗
20
65W4455500
Mount damper, lower side
Loading…
↗
21
65W4457501
Damper, lower mount rubber
Loading…
↗
22
9757510580
Bolt, hexagon w/w deep recess
Loading…
↗
23
9011910M14
Bolt, with washer
Loading…
↗
24
9017910M33
Nut
Loading…
↗
25
65W8212710
Wire, lead 2
Loading…
↗
26
65W4851100
Hook, steering
Loading…
↗
27
9020110120
Washer, plate
Loading…
↗
