F25DMH (2009)
BRACKET 3

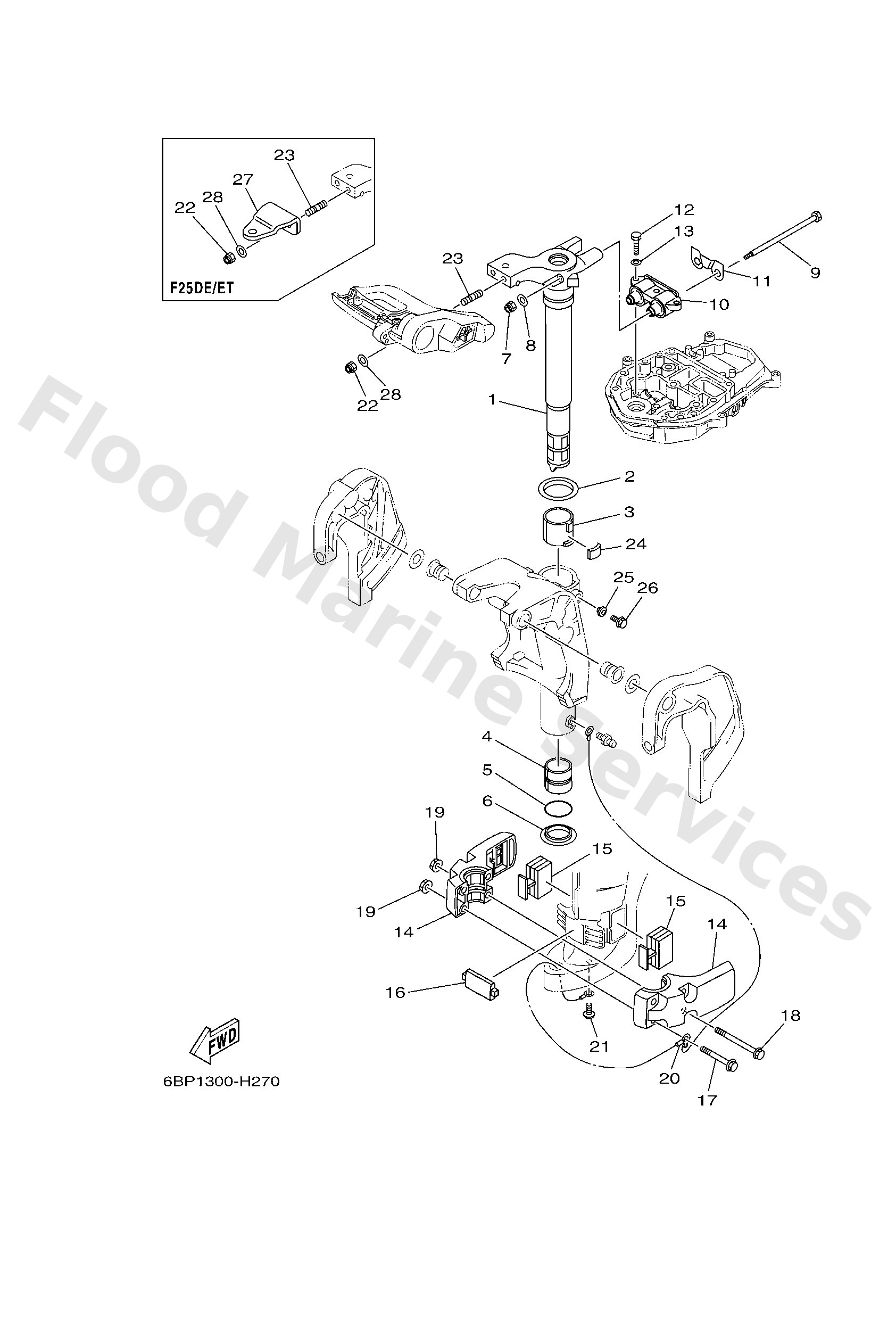

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
65W42511114D
Bracket, steering
Loading…
↗
2
9020952M00
Washer (676)
Loading…
↗
3
9038652M02
Bushing (676)
Loading…
↗
4
9038644M03
Bushing (676)
Loading…
↗
5
9321043MJ0
O-ring
Loading…
↗
6
9038644M99
Bush
Loading…
↗
7
9018508045
Nut, self-locking
Loading…
↗
8
9299508200
Ybs66-8 washer, plain
Loading…
↗
9
9010108M86
Bolt (6h4)
Loading…
↗
10
67C44514204D
Mount damper, upper side
Loading…
↗
11
66T4452630
Plate
Loading…
↗
12
9707508030
Bolt, hexagon (fj1)
Loading…
↗
13
9299508600
Washer, plain (663)
Loading…
↗
14
65W44551114D
Housing, lower mount rubber 1
Loading…
↗
15
65W4455500
Mount damper, lower side
Loading…
↗
16
65W4457501
Damper, lower mount rubber
Loading…
↗
17
9757510580
Bolt, hexagon w/w deep recess
Loading…
↗
18
9011910M14
Bolt, with washer
Loading…
↗
19
9017910M33
Nut
Loading…
↗
20
65W8212710
Wire, lead 2
Loading…
↗
21
9015706M06
Screw, pan head(6m7)
Loading…
↗
22
9018510051
Nut, self-locking
Loading…
↗
23
9011610M70
Bolt, stud
Loading…
↗
24
6484252800
Plate, friction
Loading…
↗
25
65W4337300
Seal, damper
Loading…
↗
26
9010508M76
Bolt, washer based
Loading…
↗
27
65W4851100
Hook, steering
Loading…
↗
28
9020110120
Washer, plate
Loading…
↗
28
9299510600
Washer, plate
Loading…
↗
