F30AWHD (2005)
BRACKET 3

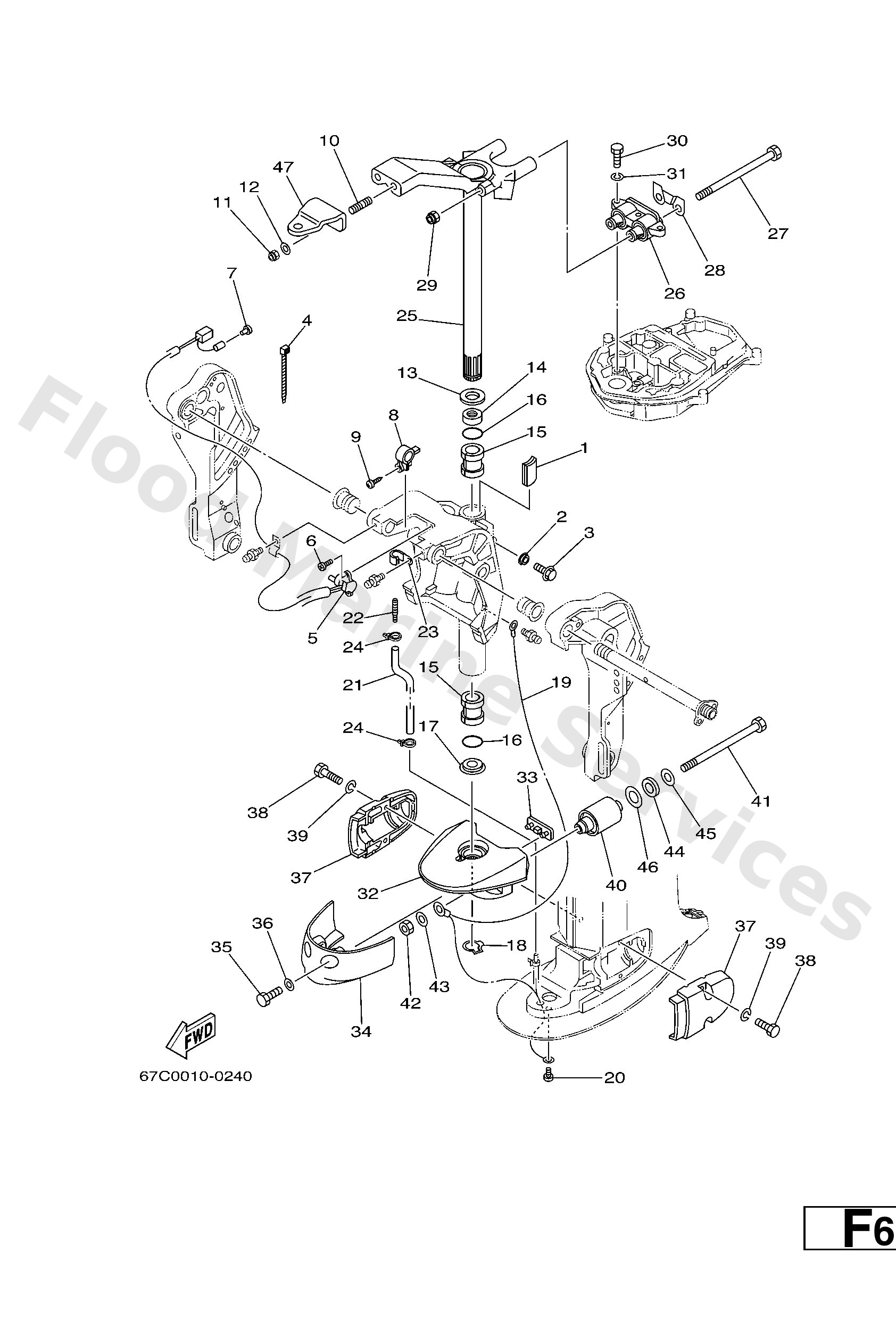

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6J84252800
Plate, friction
Loading…
↗
2
6894337301
Seal, damper
Loading…
↗
3
9010506M18
Bolt (689)
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
64E8367202
Trim sender
Loading…
↗
6
9788506016
Screw, pan head(6b0)
Loading…
↗
7
7038211900
Cover, lead wire
Loading…
↗
8
6K94313901
Cam, trim sender (with screw)
Loading…
↗
9
9778060525
Screw, tapping(65j)
Loading…
↗
10
9011610M28
Bolt, stud
Loading…
↗
11
9018510051
Nut, self-locking
Loading…
↗
12
9299510600
Washer, plate
Loading…
↗
13
9020130M00
Washer, plate(6h1)
Loading…
↗
14
9038630M78
Bush(6h0)
Loading…
↗
15
9038630M77
Bush(6h0)
Loading…
↗
16
9321029M94
O-ring(6h1)
Loading…
↗
17
9038630M60
Bush(6j8)
Loading…
↗
18
9341028M06
Circlip (688)
Loading…
↗
19
67C8212700
S
Wire, lead 2
Loading…
↗
19
67C8212710
L,X
Wire, lead 2
Loading…
↗
20
9788506008
Screw, pan head(6a3)
Loading…
↗
21
9044507MF1
S
Hose (l570)
Loading…
↗
21
9044507M53
L,X
Hose (l1160)
Loading…
↗
22
6E58355800
End, nipple
Loading…
↗
23
9046508M07
Clamp (1e6)
Loading…
↗
25
67C42510014D
S
Steering bracket assembly
Loading…
↗
25
67C42510114D
L,X
Steering bracket assembly
Loading…
↗
26
67C44514104D
L
Mount damper, upper side
Loading…
↗
26
67C44514204D
X
Mount damper, upper side
Loading…
↗
26
67C44514004D
S
Mount damper, upper side
Loading…
↗
27
9010108M15
Bolt
Loading…
↗
28
66T4452630
Plate
Loading…
↗
29
9018508045
Nut, self-locking
Loading…
↗
30
9707508030
Bolt, hexagon (fj1)
Loading…
↗
31
9299508100
Ybs67-8 washer, spring
Loading…
↗
32
67C44551014D
S
Housing, lower mount rubber
Loading…
↗
32
67C44551104D
L,X
Housing, lower mount rubber
Loading…
↗
33
67C4457500
Damper, lower mount rubber
Loading…
↗
34
67C44553004D
L,X
Cover, lower mount
Loading…
↗
35
9709508020
L,X
Bolt, hexagon
Loading…
↗
36
9299508600
L,X
Washer, plain (663)
Loading…
↗
37
67C44552014D
Housing, lower mount rubber
Loading…
↗
40
67C445552194
S,X
Mount damper, lower side
Loading…
↗
40
67C445551194
L
Mount damper, lower side
Loading…
↗
41
9010912MA3
Bolt
Loading…
↗
42
9538012700
Nut(6t4)
Loading…
↗
43
9020112M16
Washer, plate (679)
Loading…
↗
44
9020221100
Washer plate (663)
Loading…
↗
45
9020113M19
Washer, plate (663)
Loading…
↗
46
9020122M05
Washer, plate
Loading…
↗
47
65W4851100
Hook, steering
Loading…
↗
