F50AET (2004)
BRACKET 3

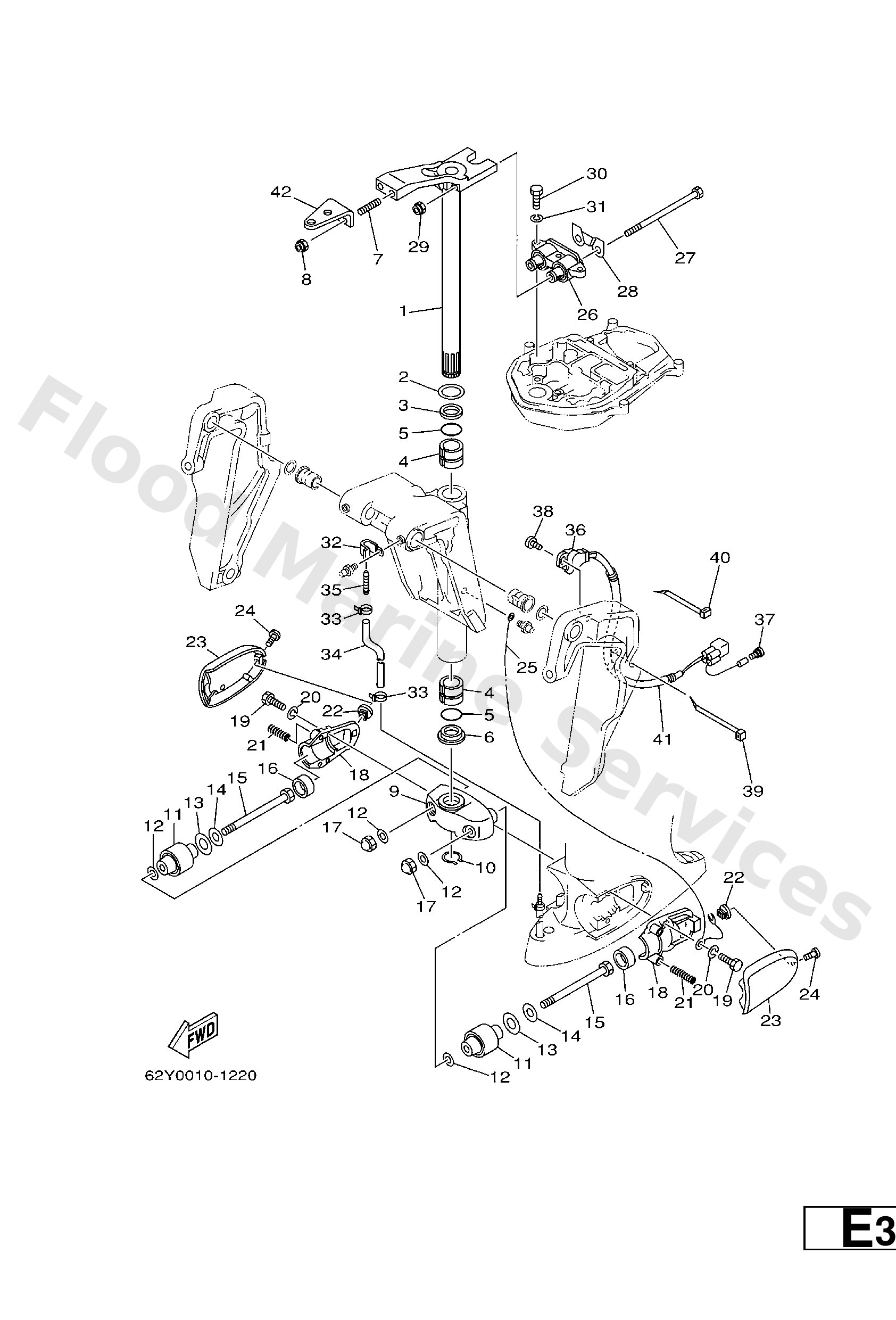

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
63D42510124D
Steering bracket assembly
Loading…
↗
2
9020130M00
Washer, plate(6h1)
Loading…
↗
3
9038630M78
Bush(6h0)
Loading…
↗
4
9038630M77
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011610175
Bolt, stud
Loading…
↗
8
9018510051
Nut, self-locking
Loading…
↗
9
66344551024D
Housing, lower mount rubber
Loading…
↗
10
9341028M06
Circlip (688)
Loading…
↗
11
62Y445550094
Mount damper, lower side
Loading…
↗
12
9020112M16
Washer, plate (679)
Loading…
↗
13
9020221100
Washer plate (663)
Loading…
↗
14
9020113M19
Washer, plate (663)
Loading…
↗
15
9010912261
Bolt(663)
Loading…
↗
16
6634457500
Damper, lower mount rubber
Loading…
↗
17
9538012800
Nut crown(663)
Loading…
↗
18
663445520194
Housing, lower mount rubber
Loading…
↗
19
9707508025
Bolt, hexagon deep recess
Loading…
↗
20
9299508100
Ybs67-8 washer, spring
Loading…
↗
21
9050114M08
Spring, compression(64j)
Loading…
↗
22
9017906066
Nut(663)
Loading…
↗
23
62Y44553014D
Cover, lower mount
Loading…
↗
24
9788506016
Screw, pan head(6b0)
Loading…
↗
25
6978212701
Wire, lead 2
Loading…
↗
26
67C44514004D
F50A
Mount damper, upper side
Loading…
↗
26
62Y44514104D
FT50C
Mount damper, upper side
Loading…
↗
27
9010108M15
Bolt
Loading…
↗
28
66T4452630
Plate
Loading…
↗
29
9018508045
Nut, self-locking
Loading…
↗
30
9707508030
Bolt, hexagon (fj1)
Loading…
↗
32
9046506M86
Clamp
Loading…
↗
33
9046511M10
Clamp
Loading…
↗
34
9044507MF1
Hose (l570)
Loading…
↗
35
6E58355800
End, nipple
Loading…
↗
36
63D8367201
Trim sender
Loading…
↗
37
7038211900
Cover, lead wire
Loading…
↗
39
9046513M18
Clamp
Loading…
↗
41
9044617M91
Hose
Loading…
↗
42
63D48511004D
STEERING GUIDE
Hook, steering
Loading…
↗
