F80CED (2010)
BRACKET 3

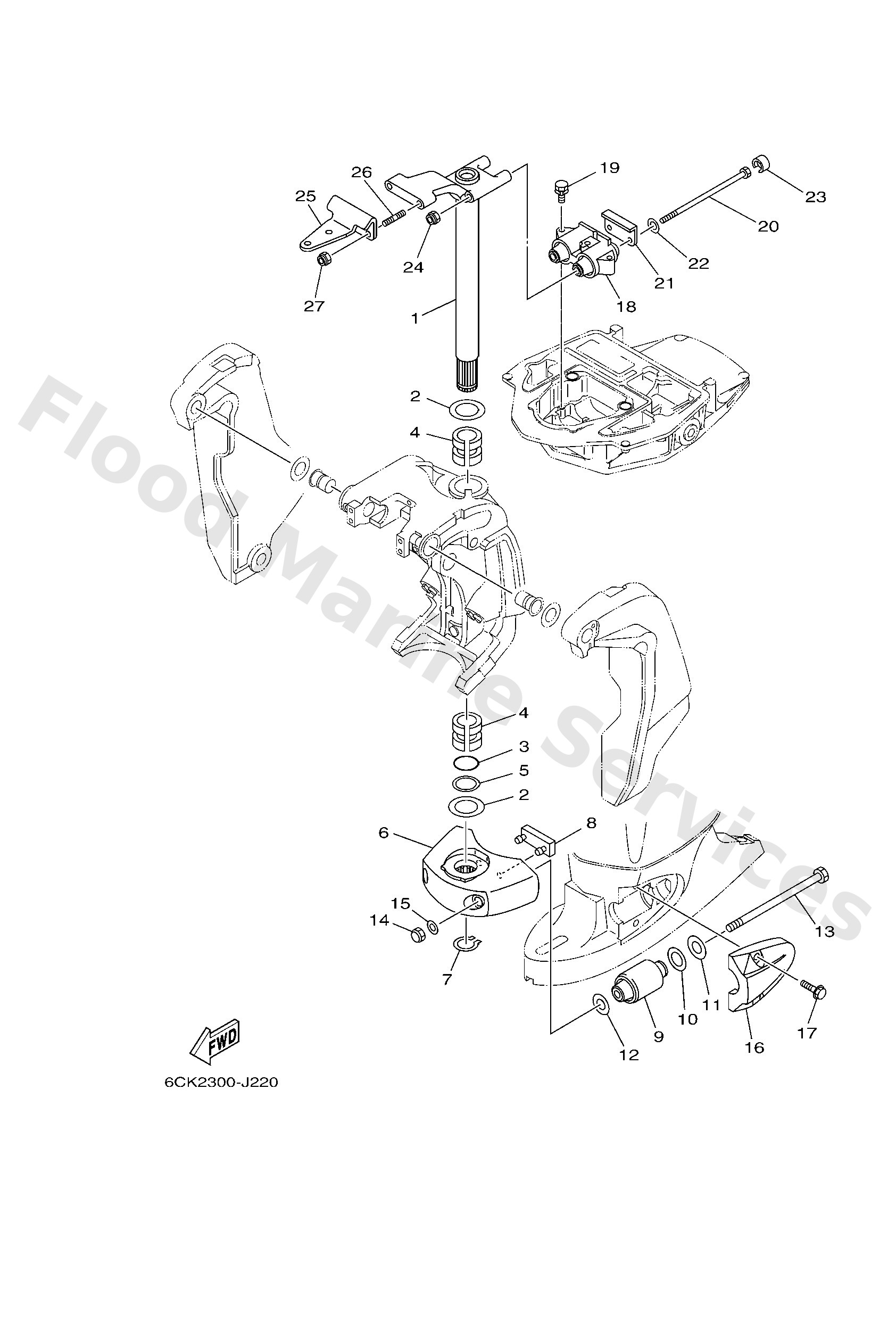

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
68V42510108D
L(20.3")
Steering bracket assembly
Loading…
↗
2
9020138M60
Washer, plate (6e5)
Loading…
↗
3
9321037MH7
O-ring(61u)
Loading…
↗
4
9038638M32
Bush(6e5)
Loading…
↗
5
9020240M47
Washer, plate(61a)
Loading…
↗
6
68V44551008D
Housing, lower mount rubber
Loading…
↗
7
9341037M04
Circlip (6e5)
Loading…
↗
8
61A4457500
Damper, lower mount rubber
Loading…
↗
9
61A445550194
Mount damper, lower side
Loading…
↗
10
9020232M19
Washer, plate (6e5)
Loading…
↗
11
9020116M55
Washer, plate (6e5)
Loading…
↗
12
9020115M58
Washer, plate (6e5)
Loading…
↗
13
9010914007
Bolt
Loading…
↗
14
9538014600
Nut,hex. (ge6)
Loading…
↗
15
9299514600
Washer (6e5)
Loading…
↗
16
68V44553008D
Cover, lower mount
Loading…
↗
17
9011910049
Bolt, with washer
Loading…
↗
18
67F445140194
Mount damper, upper side
Loading…
↗
19
9011908091
Bolt, with washer
Loading…
↗
20
9010912007
Bolt
Loading…
↗
21
67F4452600
Plate
Loading…
↗
22
9020112M09
Washer, plate
Loading…
↗
23
67F4453300
Damper, upper mount rubber
Loading…
↗
24
9018512M12
Nut, self-locking(6e5)
Loading…
↗
25
68V4851110
Hook, steering
Loading…
↗
26
9011610175
Bolt, stud
Loading…
↗
27
9018510051
Nut, self-locking
