FT50CEHD (2003)
BRACKET 3

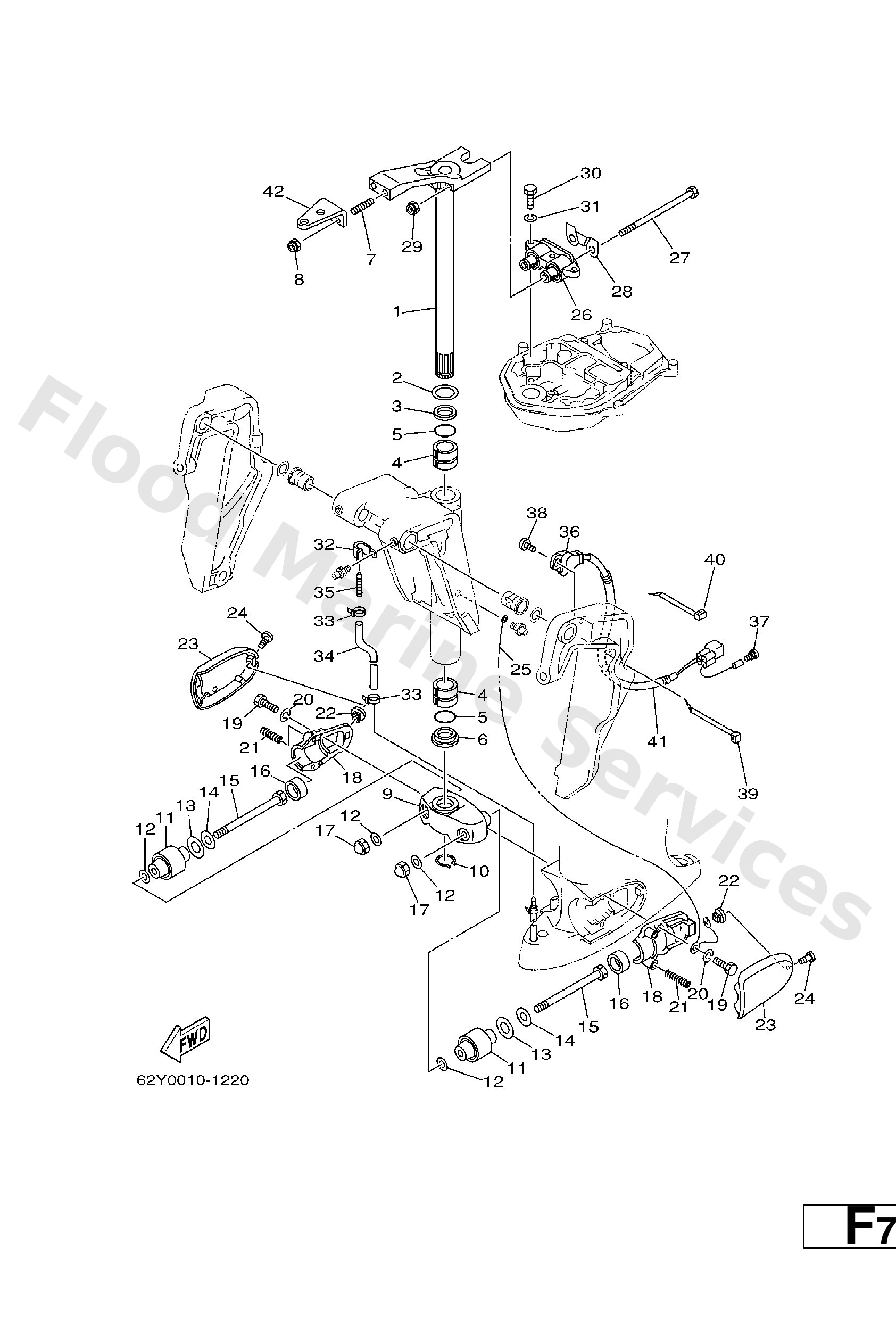

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
63D−42510−11−4D
Steering bracket assembly
Loading…
↗
2
90201−30M00
Washer, plate(6h1)
Loading…
↗
3
90386−30M78
Bush(6h0)
Loading…
↗
4
90386−30M77
Bush(6h0)
Loading…
↗
5
93210−29M94
O-ring(6h1)
Loading…
↗
6
90386−30M60
Bush(6j8)
Loading…
↗
7
90116−10175
Bolt, stud
Loading…
↗
8
90185−10051
Nut, self-locking
Loading…
↗
9
663−44551−02−4D
Housing, lower mount rubber
Loading…
↗
10
93410−28M06
Circlip (688)
Loading…
↗
11
62Y−44555−00−94
Mount damper, lower side
Loading…
↗
12
90201−12M16
Washer, plate (679)
Loading…
↗
13
90202−21100
Washer plate (663)
Loading…
↗
14
90201−13M19
Washer, plate (663)
Loading…
↗
15
90109−12261
Bolt(663)
Loading…
↗
16
663−44575−00
L
Damper, lower mount rubber
Loading…
↗
16
64J−44575−00
X
Damper, lower mount rubber
Loading…
↗
17
95380−12800
Nut crown(663)
Loading…
↗
18
663−44552−01−94
Housing, lower mount rubber
Loading…
↗
19
97075−08025
Bolt, hexagon deep recess
Loading…
↗
20
92995−08100
Ybs67-8 washer, spring
Loading…
↗
21
90501−14M08
Spring, compression(64j)
Loading…
↗
22
90179−06066
Nut(663)
Loading…
↗
23
62Y−44553−01−4D
Cover, lower mount
Loading…
↗
24
97885−06016
Screw, pan head(6b0)
Loading…
↗
25
697−82127−01
Wire, lead 2
Loading…
↗
26
67C−44514−00−4D
F50A−L
Mount damper, upper side
Loading…
↗
26
62Y−44514−10−4D
FT50C−L
Mount damper, upper side
Loading…
↗
26
64J−44514−00−4D
FT50C−X
Mount damper, upper side
Loading…
↗
27
90101−08M15
Bolt
Loading…
↗
28
66T−44526−30
L
Plate
Loading…
↗
28
69W−44526−01
X
Plate
Loading…
↗
29
90185−08045
Nut, self-locking
Loading…
↗
30
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
32
90465−06M86
Clamp
Loading…
↗
33
90465−11M10
Clamp
Loading…
↗
34
90445−07MF1
Hose (l570)
Loading…
↗
35
6E5−83558−00
End, nipple
Loading…
↗
36
63D−83672−01
Trim sender
Loading…
↗
37
703−82119−00
Cover, lead wire
Loading…
↗
39
90465−13M18
Clamp
Loading…
↗
41
90446−17M91
Hose
Loading…
↗
42
63D−48511−00−4D
STEERING GUIDE
Hook, steering
