Yamaha Outboard Parts - BRACKET 3 - FT50PET (2025) | Flood Marine

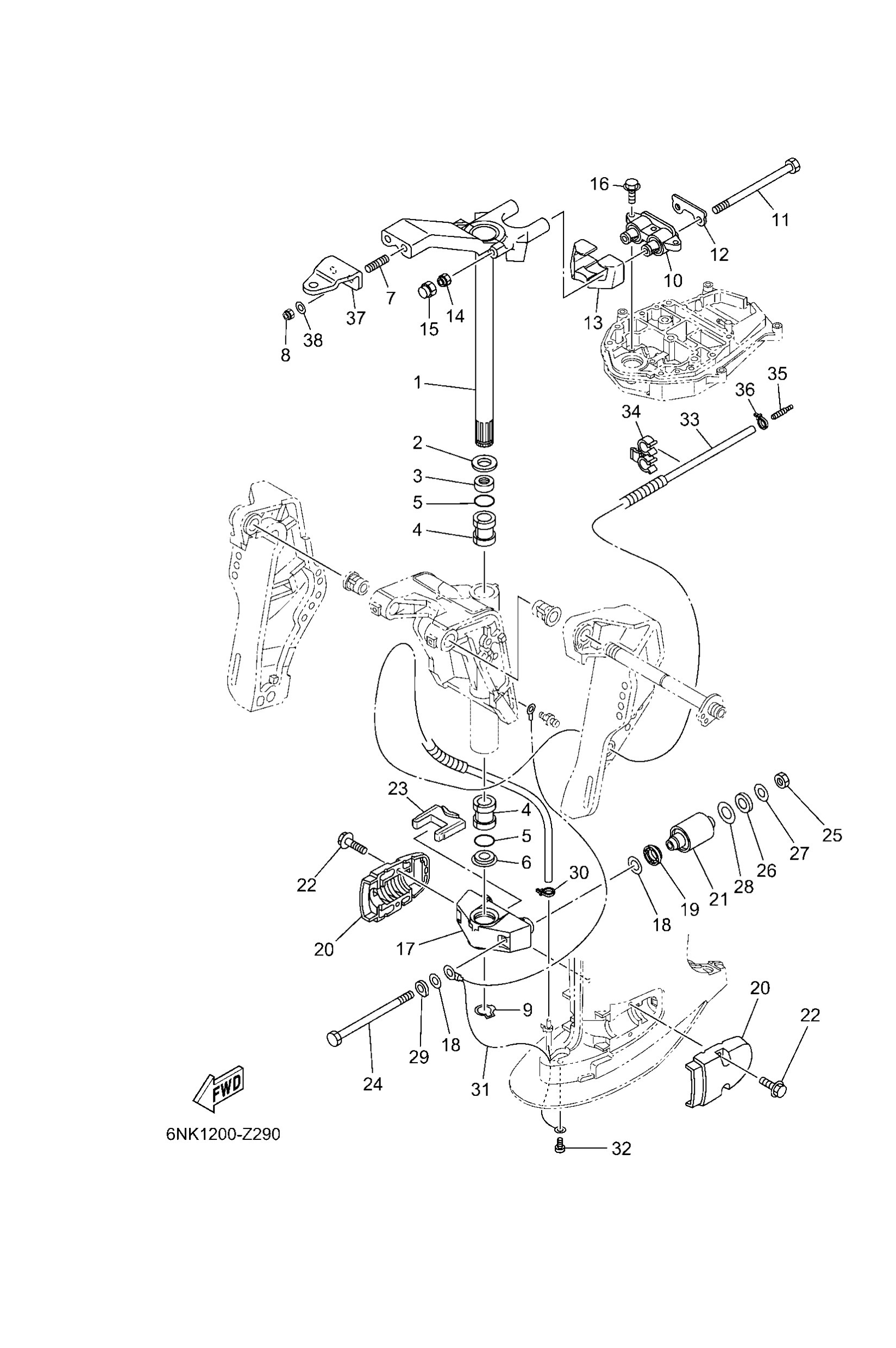

Diagram: BRACKET 3

Diagram

Parts List

Reference
Description
Price


1
6C642510008D
Steering Bracket assembly
Loading…

↗
2
9020130M00
Washer, plate(6h1)
Loading…

↗
3
9038630M78
Bush(6h0)
Loading…

↗
4
9038630M77
Bush(6h0)
Loading…

↗
5
9321029M94
O-ring(6h1)
Loading…

↗
6
9038630M60
Bush(6j8)
Loading…

↗
7
9011610063
Bolt, stud
Loading…

↗
8
9018510027
Nut, self-locking
Loading…

↗
9
9341028M06
Circlip (688)
Loading…

↗
10
6C64451400
Mount Damper, Upper Side
Loading…

↗
11
9010110041
Bolt
Loading…

↗
12
6C64452600
Plate
Loading…

↗
13
6C64453200
Stopper, Upper Mount
Loading…

↗
15
6C64419400
Cap
Loading…

↗
16
97E7508530
Bolt, hexagon w/w deep recess
Loading…

↗
17
69D44551118D
Housing, lower mount rubber 1
Loading…

↗
18
9020112M16
Washer, plate (679)
Loading…

↗
19
6C54388501
Grommet
Loading…

↗
20
6C544552008D
Housing, lower mount rubber 2
Loading…

↗
21
69W4455500
Mount damper, lower side
Loading…

↗
22
9011908094
Bolt, with washer
Loading…

↗
23
6C64457501
Damper, Lower Mount Rubber
Loading…

↗
24
9010912012
Bolt
Loading…

↗
25
9538012700
Nut(6t4)
Loading…

↗
26
9020221100
Washer plate (663)
Loading…

↗
27
9020113M19
Washer, plate (663)
Loading…

↗
28
9020122M05
Washer, plate
Loading…

↗
29
6C64312710
-
Loading…

↗
30
9046511M10
Clamp
Loading…

↗
31
67C8212710
Wire, lead 2
Loading…

↗
32
9788506008
Screw, pan head(6a3)
Loading…

↗
33
6CJ4438500
Hose, water 1
Loading…

↗
34
9046410006
Clamp
Loading…

↗
35
6E58355800
End, nipple
Loading…

↗
37
65W4851101
Hook, steering
Loading…

↗
38
9020110049
Washer, plate
Loading…

↗
