VF175LA (2023)
BRACKET 3

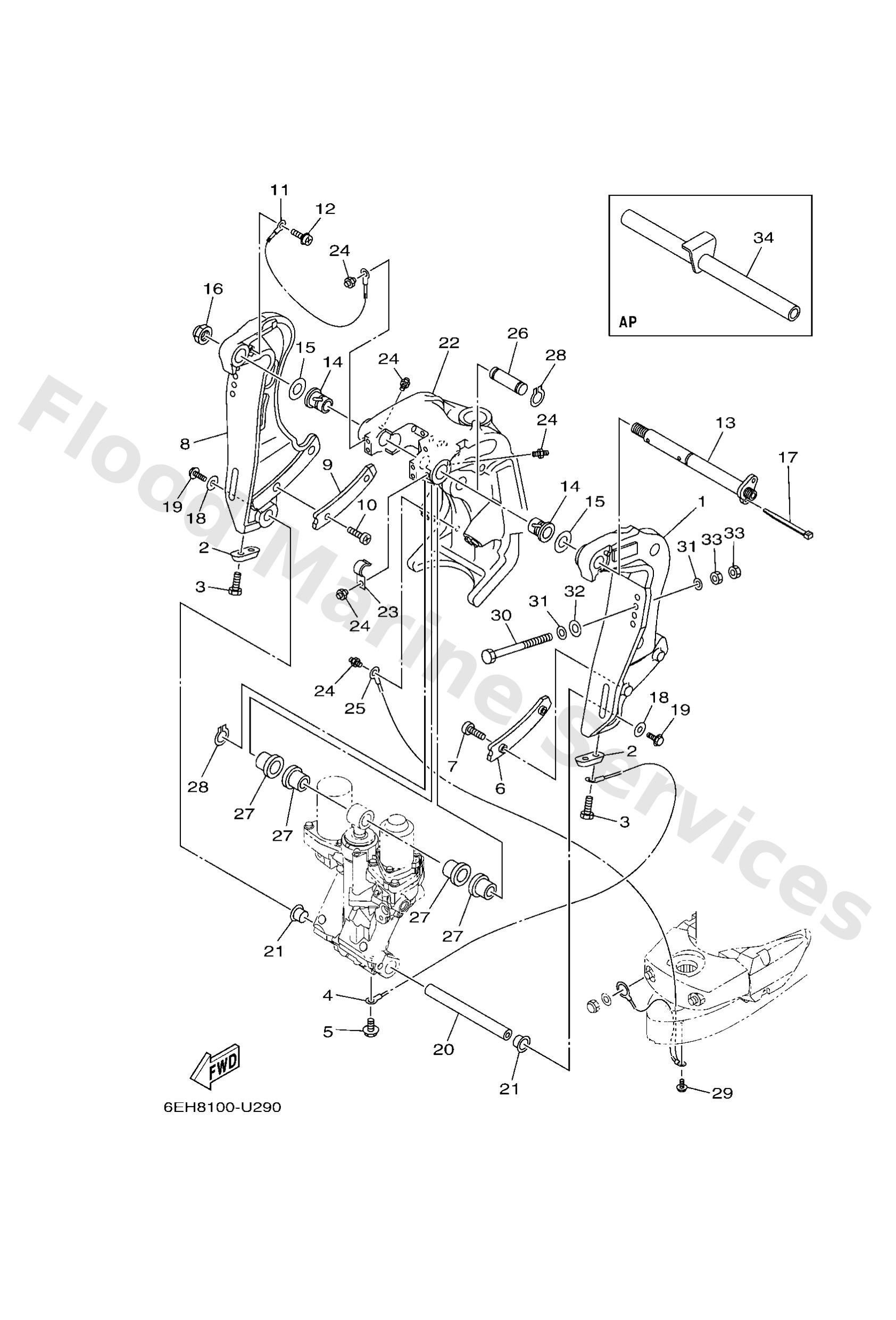

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6CB43111108D
Bracket, clamp 1
Loading…
↗
2
65W4525100
Anode
Loading…
↗
3
9010106020
Bolt
Loading…
↗
4
6E58214800
Wire, lead 5
Loading…
↗
5
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
6
61A4313201
Washer, friction
Loading…
↗
7
9788506010
Screw pan head
Loading…
↗
8
6CB43112108D
Bracket, clamp 2
Loading…
↗
9
61A4313301
Washer,friction
Loading…
↗
12
9798506212
Screw, with washer(6h3)
Loading…
↗
13
64E4313130
Bolt, clamp bracket
Loading…
↗
14
9038625M31
Bushing (6e5)
Loading…
↗
15
9020126M59
Washer, plate (6e5)
Loading…
↗
16
9018522M11
Nut, self-locking
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
9020110060
Washer, plate
Loading…
↗
19
9011910054
Bolt, with washer
Loading…
↗
20
6BC4381800
Pin, lower shock mount
Loading…
↗
21
9038622M98
Bush(61u)
Loading…
↗
22
64E43311108D
Bracket, swibel
Loading…
↗
23
9046508M63
Clamp(61u)
Loading…
↗
24
9370006002
Nipple, grease
Loading…
↗
25
66K8214900
Wire, lead 3
Loading…
↗
26
64E4312610
Pin, upper shock mount
Loading…
↗
28
9341022M11
Circlip(61u)
Loading…
↗
29
95D9506010
Bolt, flange deep recess
Loading…
↗
30
9010112066
UR
Bolt (l:150mm)
Loading…
↗
30
9010112065
UR
Bolt (l:130mm)
Loading…
↗
31
9020113M01
Washer, plate(6e5)
Loading…
↗
32
9020112426
Washe, plate(663)
Loading…
↗
33
9538012600
Nut (707)
Loading…
↗
34
6CB4361100
AP
Shaft, tilt lock
Loading…
↗
