XF425NSB (2020)
BRACKET 3

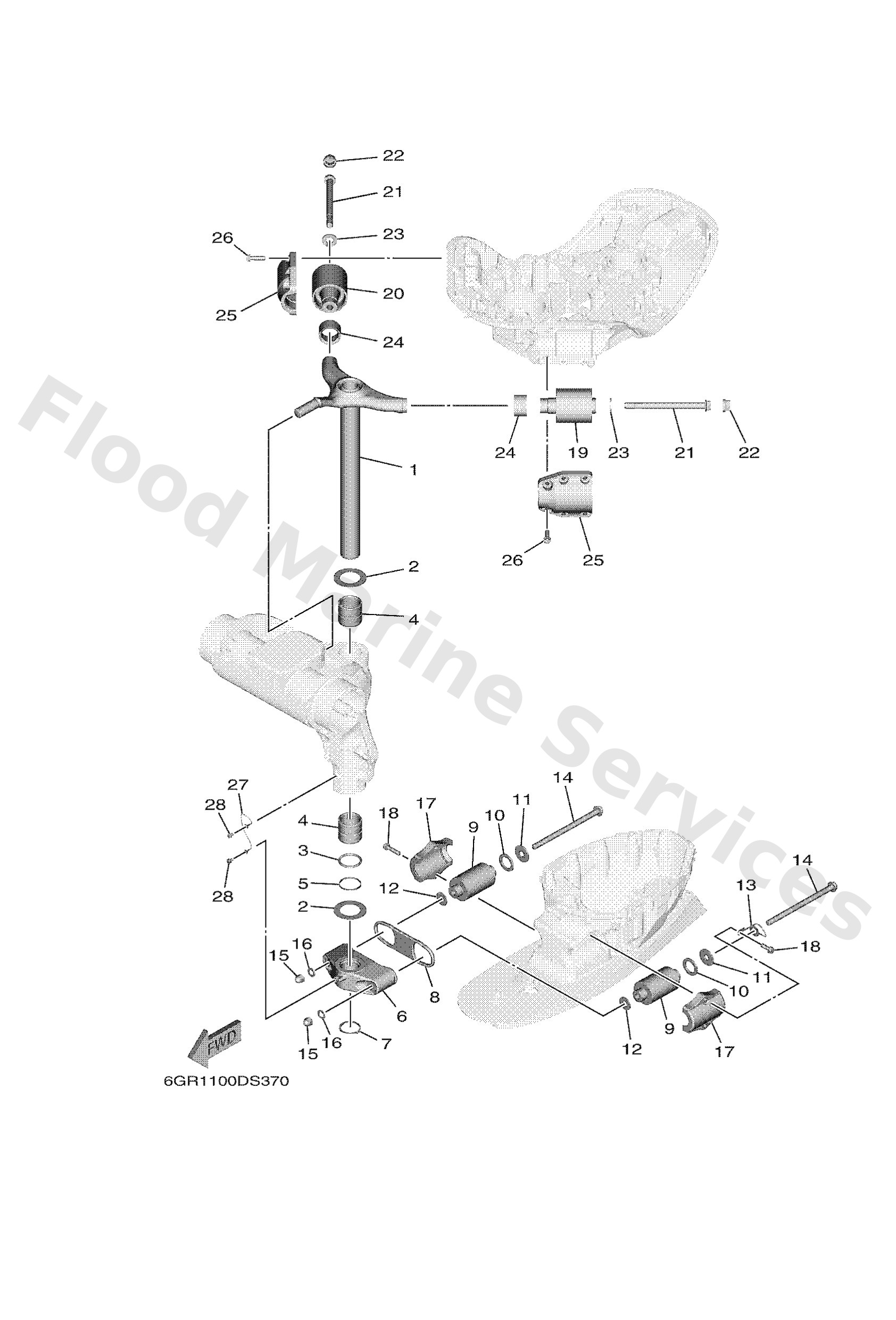

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6GR42510008D
Steering bracket assembly
Loading…
↗
2
9020151014
Washer, plate
Loading…
↗
3
9321049003
O-ring
Loading…
↗
4
9038649001
Bush
Loading…
↗
5
9020251001
Washer, plate
Loading…
↗
6
6GR4455100CA
Housing, lower mount rubber 1
Loading…
↗
7
9341046099
Circlip
Loading…
↗
8
6GR4457500
Damper, lower mount rubber
Loading…
↗
9
6AW4455500
Mount damper, lower side
Loading…
↗
10
9020232M19
Washer, plate (6e5)
Loading…
↗
11
9020116M55
Washer, plate (6e5)
Loading…
↗
12
9020115M58
Washer, plate (6e5)
Loading…
↗
13
6GR8214900
Wire, lead 3
Loading…
↗
14
9010514012
Bolt, flange
Loading…
↗
15
9538014800
Nut, crown (6e5)
Loading…
↗
16
9299514600
Washer (6e5)
Loading…
↗
17
6AW4455200CA
Housing, lower mount rubber 2
Loading…
↗
18
9011910024
Bolt, with washer
Loading…
↗
19
6GR4451400
Mount damper, upper side
Loading…
↗
20
6GR4451500
Mount rubber, upper side
Loading…
↗
21
9010516004
Bolt, flange
Loading…
↗
22
6GR4419400
Cap
Loading…
↗
23
9020118030
Washer, plate
Loading…
↗
24
6GR4453300
Damper, upper mount rubber
Loading…
↗
25
6GR4451100CA
Cover, upper mount
Loading…
↗
26
9011910058
Bolt, with washer
Loading…
↗
27
6T48211700
Wire, lead
Loading…
↗
28
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
