30DMHO (2009)
BRACKET 4

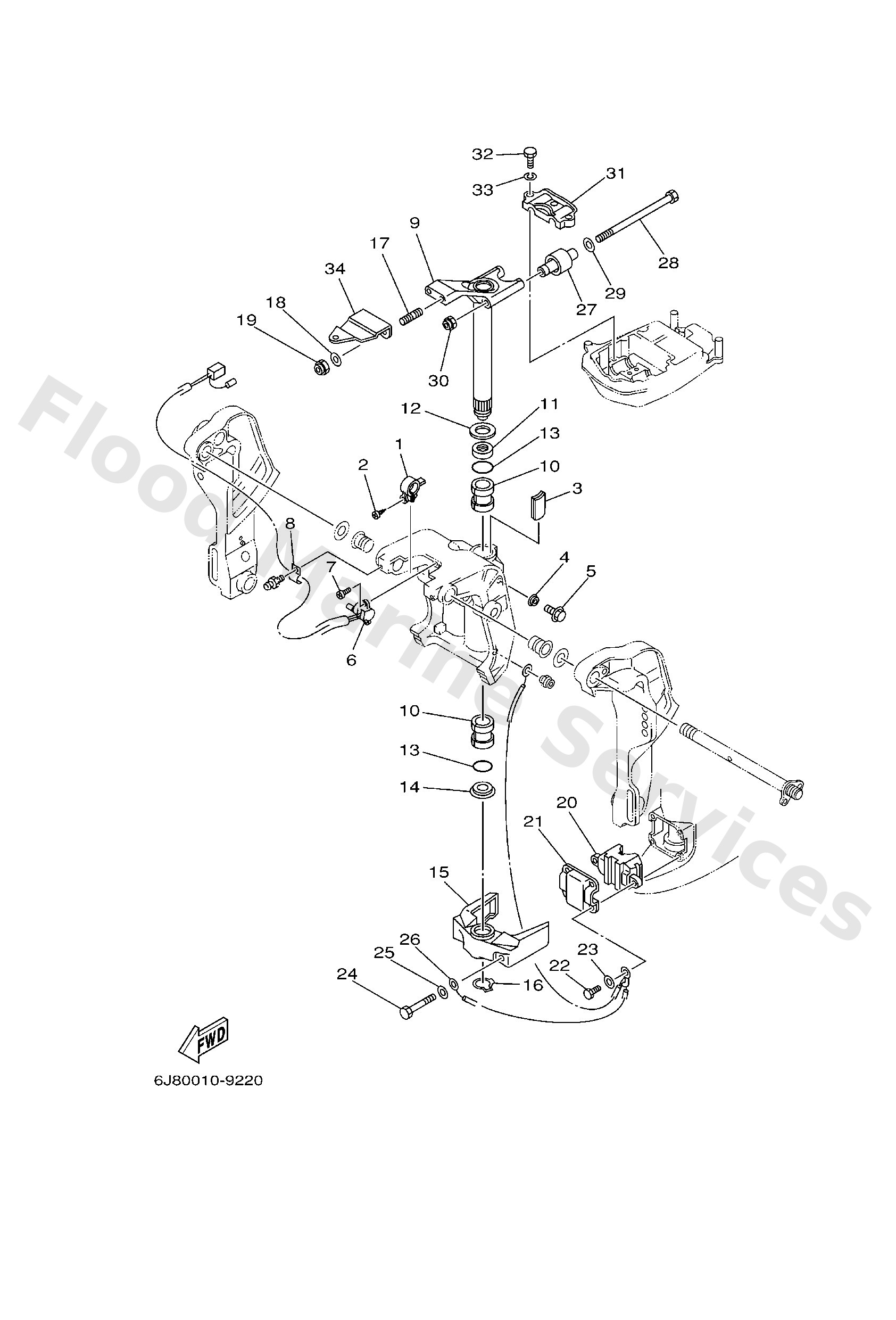

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
6K94313901
Cam, trim sender (with screw)
Loading…
↗
2
9778060525
Screw, tapping(65j)
Loading…
↗
3
6J84252800
Plate, friction
Loading…
↗
4
6894337301
Seal, damper
Loading…
↗
5
9010506M18
Bolt (689)
Loading…
↗
6
64E8367202
Trim sender
Loading…
↗
7
9788506016
Screw, pan head(6b0)
Loading…
↗
8
9046508M63
Clamp(61u)
Loading…
↗
9
6J842510034D
Steering bracket assembly
Loading…
↗
10
9038630M77
Bush(6h0)
Loading…
↗
11
9038630M78
Bush(6h0)
Loading…
↗
12
9020130M00
Washer, plate(6h1)
Loading…
↗
13
9321029M94
O-ring(6h1)
Loading…
↗
14
9038630M60
Bush(6j8)
Loading…
↗
15
6H444551024D
Housing, lower mount rubber 1
Loading…
↗
16
9341028M06
Circlip (688)
Loading…
↗
17
9011610M28
Bolt, stud
Loading…
↗
18
9299510600
Washer, plate
Loading…
↗
19
9018510051
Nut, self-locking
Loading…
↗
20
6H44455710
L(21.5")
Mount, lower front
Loading…
↗
21
6H44455301
Cover, lower mount
Loading…
↗
22
9709508025
Bolt (62g)
Loading…
↗
23
9299508600
Washer, plain (663)
Loading…
↗
24
9709510060
Bolt, hexagon
Loading…
↗
26
6H48212700
Wire, lead 2
Loading…
↗
27
6H44451400
Mount, upper side
Loading…
↗
28
9010908M26
Bolt(6j8)
Loading…
↗
29
9020109425
Washer, plate (663)
Loading…
↗
30
9018508045
Nut, self-locking
Loading…
↗
31
6J844511004D
Cover, upper mount
Loading…
↗
32
9707508035
Bolt(70w)
Loading…
↗
33
9299508100
Ybs67-8 washer, spring
Loading…
↗
34
6J848511514D
Hook, steering
Loading…
↗
