30DMHO (2015)
BRACKET 4

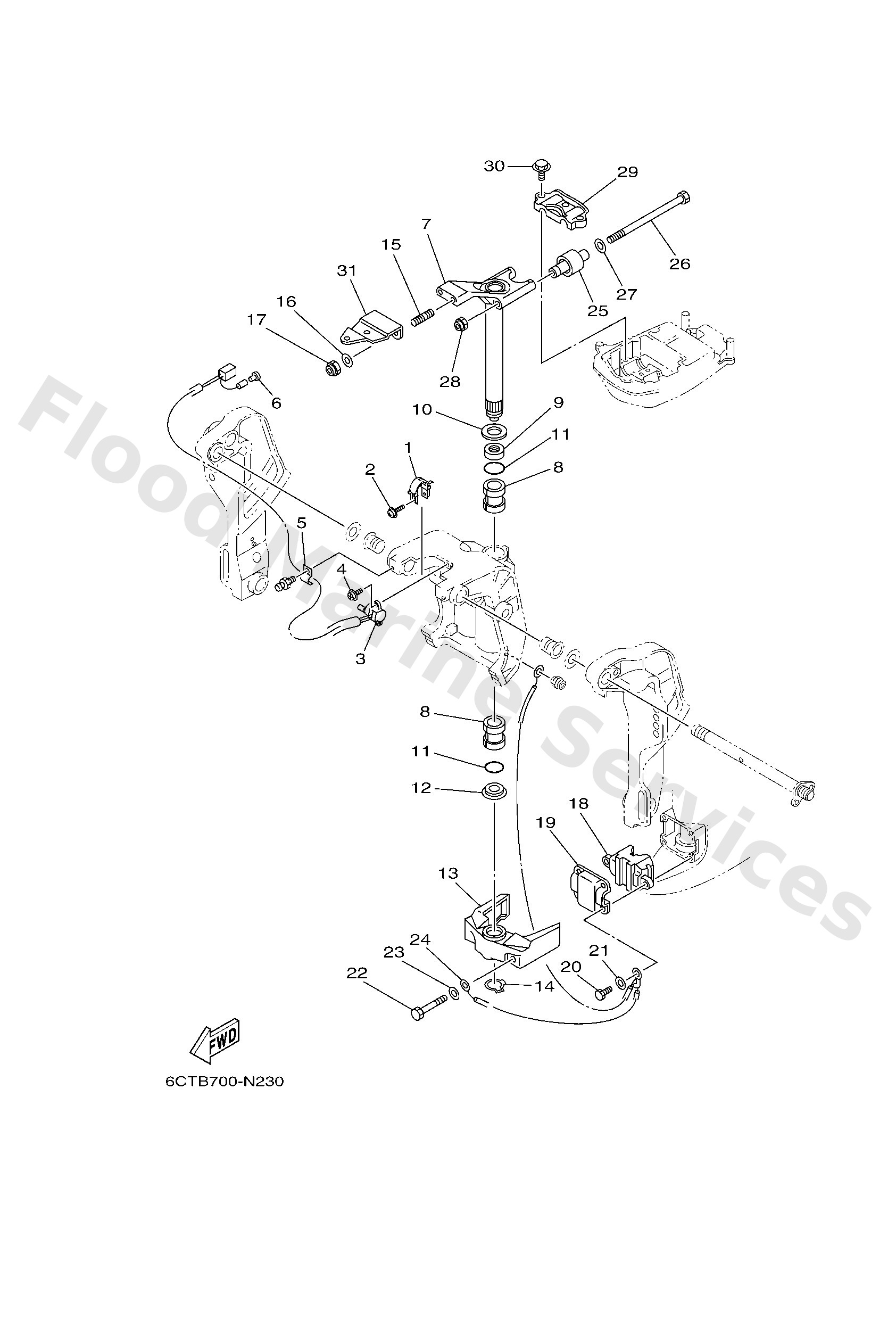

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
6K94313910
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
64E8367203
Trim sender
Loading…
↗
4
9798506216
Screw, with washer(6h2)
Loading…
↗
5
9046508M63
Clamp(61u)
Loading…
↗
6
7038211900
Cover, lead wire
Loading…
↗
7
6J842510034D
Steering bracket assembly
Loading…
↗
8
9038630M77
Bush(6h0)
Loading…
↗
9
9038630M78
Bush(6h0)
Loading…
↗
10
9020130M00
Washer, plate(6h1)
Loading…
↗
11
9321029M94
O-ring(6h1)
Loading…
↗
12
9038630M60
Bush(6j8)
Loading…
↗
13
6H444551024D
Housing, lower mount rubber 1
Loading…
↗
14
9341028M06
Circlip (688)
Loading…
↗
15
9011610063
Bolt, stud
Loading…
↗
16
9299510600
Washer, plate
Loading…
↗
17
9018510027
Nut, self-locking
Loading…
↗
18
6H44455710
L(21.5")
Mount, lower front
Loading…
↗
19
6H44455301
Cover, lower mount
Loading…
↗
20
9709508025
Bolt (62g)
Loading…
↗
21
9299508600
Washer, plain (663)
Loading…
↗
22
9709510060
Bolt, hexagon
Loading…
↗
24
6H48212700
Wire, lead 2
Loading…
↗
25
6H44451400
Mount, upper side
Loading…
↗
26
9010908M26
Bolt(6j8)
Loading…
↗
27
9020109425
Washer, plate (663)
Loading…
↗
28
9018508018
Nut, self-locking
Loading…
↗
29
6J84451100
Cover, upper mount
Loading…
↗
30
9757508535
Bolt(70w)
Loading…
↗
31
6J84851152
Hook, steering
Loading…
↗
