55BED (2005)
BRACKET 4

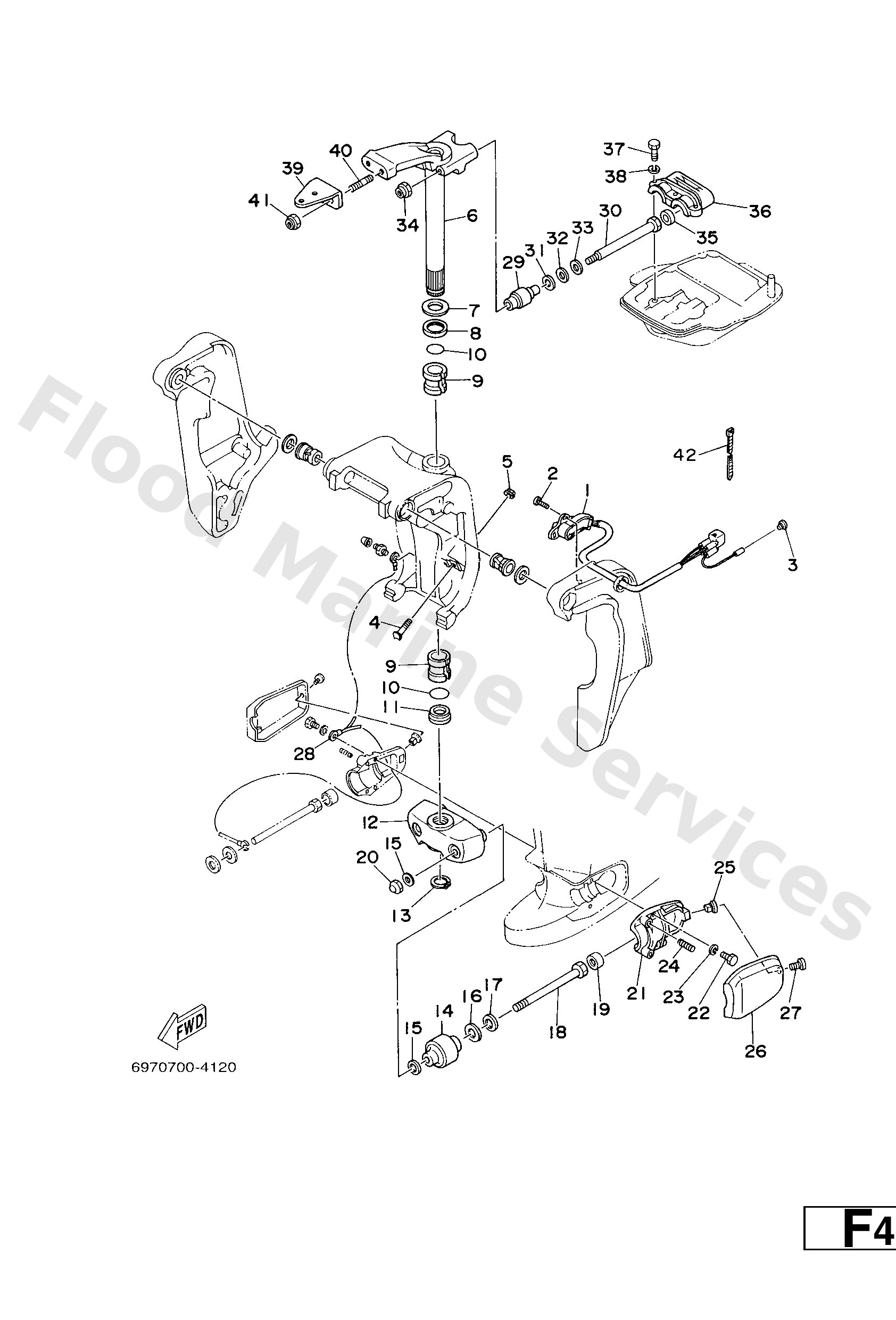

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
6H18367212
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
7038211900
Cover, lead wire
Loading…
↗
4
6H14337600
Bolt, thrust receiver
Loading…
↗
5
9018508057
Nut, nylon (6j8)
Loading…
↗
6
66342510044D
S
Steering bracket assembly
Loading…
↗
6
66342510144D
L
Steering bracket assembly
Loading…
↗
7
9020130M00
Washer, plate(6h1)
Loading…
↗
8
9038630M78
Bush(6h0)
Loading…
↗
9
9038630M77
Bush(6h0)
Loading…
↗
10
9321029M94
O-ring(6h1)
Loading…
↗
11
9038630M60
Bush(6j8)
Loading…
↗
12
66344551024D
Housing, lower mount rubber
Loading…
↗
13
9341028M06
Circlip (688)
Loading…
↗
14
687445550094
Mount damper, lower side
Loading…
↗
15
9020112M16
Washer, plate (679)
Loading…
↗
16
9020225M04
Washer, plate (663)
Loading…
↗
17
9020113M19
Washer, plate (663)
Loading…
↗
18
9010912261
Bolt(663)
Loading…
↗
19
6634457500
Damper, lower mount rubber
Loading…
↗
20
9538012800
Nut crown(663)
Loading…
↗
21
687445520294
Housing, lower mount rubber
Loading…
↗
22
9707508025
Bolt, hexagon deep recess
Loading…
↗
23
9299508100
Ybs67-8 washer, spring
Loading…
↗
24
9050114M08
Spring, compression(64j)
Loading…
↗
25
9017906066
Nut(663)
Loading…
↗
26
66344553014D
Cover, lower mount
Loading…
↗
28
6978212701
S
Wire, lead 2
Loading…
↗
28
6888212702
L
Wire, lead 2
Loading…
↗
29
670445140094
Mount damper, upper side
Loading…
↗
30
9010908262
Bolt(663)
Loading…
↗
31
9020115423
Washer, plate(663)
Loading…
↗
32
9020215065
Washer, plate (663)
Loading…
↗
33
9020109425
Washer, plate (663)
Loading…
↗
34
9018508045
Nut, self-locking
Loading…
↗
35
6634453300
Damper, upper mount
Loading…
↗
36
663445110094
Cover, upper mount
Loading…
↗
37
9707508035
Bolt(70w)
Loading…
↗
39
68848511014D
Hook, steering
Loading…
↗
39
68848511514D
STEERING GUIDE
Hook, steering
Loading…
↗
40
9011610M28
Bolt, stud
Loading…
↗
41
9018510051
Nut, self-locking
Loading…
↗
42
9046511M10
Clamp
Loading…
↗
