Yamaha Outboard Parts - BRACKET 4 - 75AET (2002) | Flood Marine

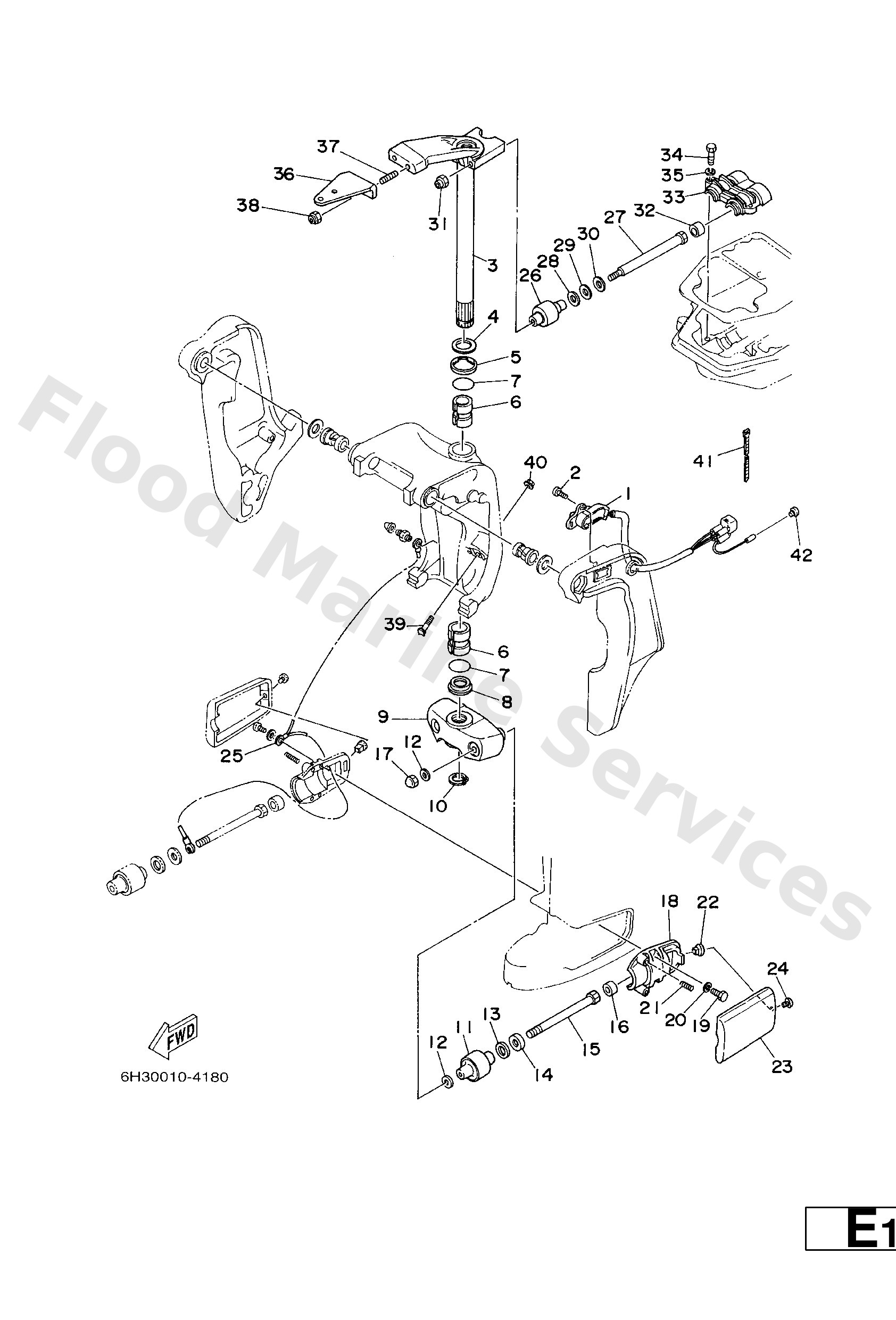

Diagram: BRACKET 4

Diagram

Parts List

Reference
Description
Price


1
6H18367212
Trim sender
Loading…

↗
2
97885--06016
Screw, pan head(6b0)
Loading…

↗
3
68842510024D
Steering bracket assembly
Loading…

↗
4
90201--30M00
Washer, plate(6h1)
Loading…

↗
5
90386--30M78
Bush(6h0)
Loading…

↗
6
90386--30M77
Bush(6h0)
Loading…

↗
7
93210--29M94
O-ring(6h1)
Loading…

↗
8
90386--30M60
Bush(6j8)
Loading…

↗
9
66344551024D
Housing, lower mount rubber
Loading…

↗
10
93410--28M06
Circlip (688)
Loading…

↗
11
687--44555--00--94
Mount damper, lower side
Loading…

↗
12
90201--12M16
Washer, plate (679)
Loading…

↗
13
90202--25M04
Washer, plate (663)
Loading…

↗
14
90201--13M19
Washer, plate (663)
Loading…

↗
15
90109--12261
Bolt(663)
Loading…

↗
16
663--44575--00
Damper, lower mount rubber
Loading…

↗
17
95380--12800
Nut crown(663)
Loading…

↗
18
687445520294
Housing, lower mount rubber
Loading…

↗
19
97075--08025
Bolt, hexagon deep recess
Loading…

↗
20
92995--08100
Ybs67-8 washer, spring
Loading…

↗
21
90501--14M08
Spring, compression(64j)
Loading…

↗
22
90179--06066
Nut(663)
Loading…

↗
23
66344553014D
Cover, lower mount
Loading…

↗
25
688--82127--02
Wire, lead 2
Loading…

↗
26
688445140094
Mount damper, upper side
Loading…

↗
27
90101--10M49
Bolt
Loading…

↗
28
90201--20M21
Washer, plate (688)
Loading…

↗
29
90202--20M06
Washer, plate (688)
Loading…

↗
30
90201--11M22
Washer, plate (688)
Loading…

↗
31
90185--10051
Nut, self-locking
Loading…

↗
33
688445110094
Cover, upper mount
Loading…

↗
34
97075--08035
Bolt(70w)
Loading…

↗
36
68848511114D STEERING GUIDE
Hook, steering
Loading…

↗
37
90116--10M28
Bolt, stud
Loading…

↗
39
6H1--43376--00
Bolt, thrust receiver
Loading…

↗
40
90185--08057
Nut, nylon (6j8)
Loading…

↗
41
90465--11M10
Clamp
Loading…

↗
42
703--82119--00
Cover, lead wire
Loading…

↗
