E115AWH (2003)
BRACKET 4

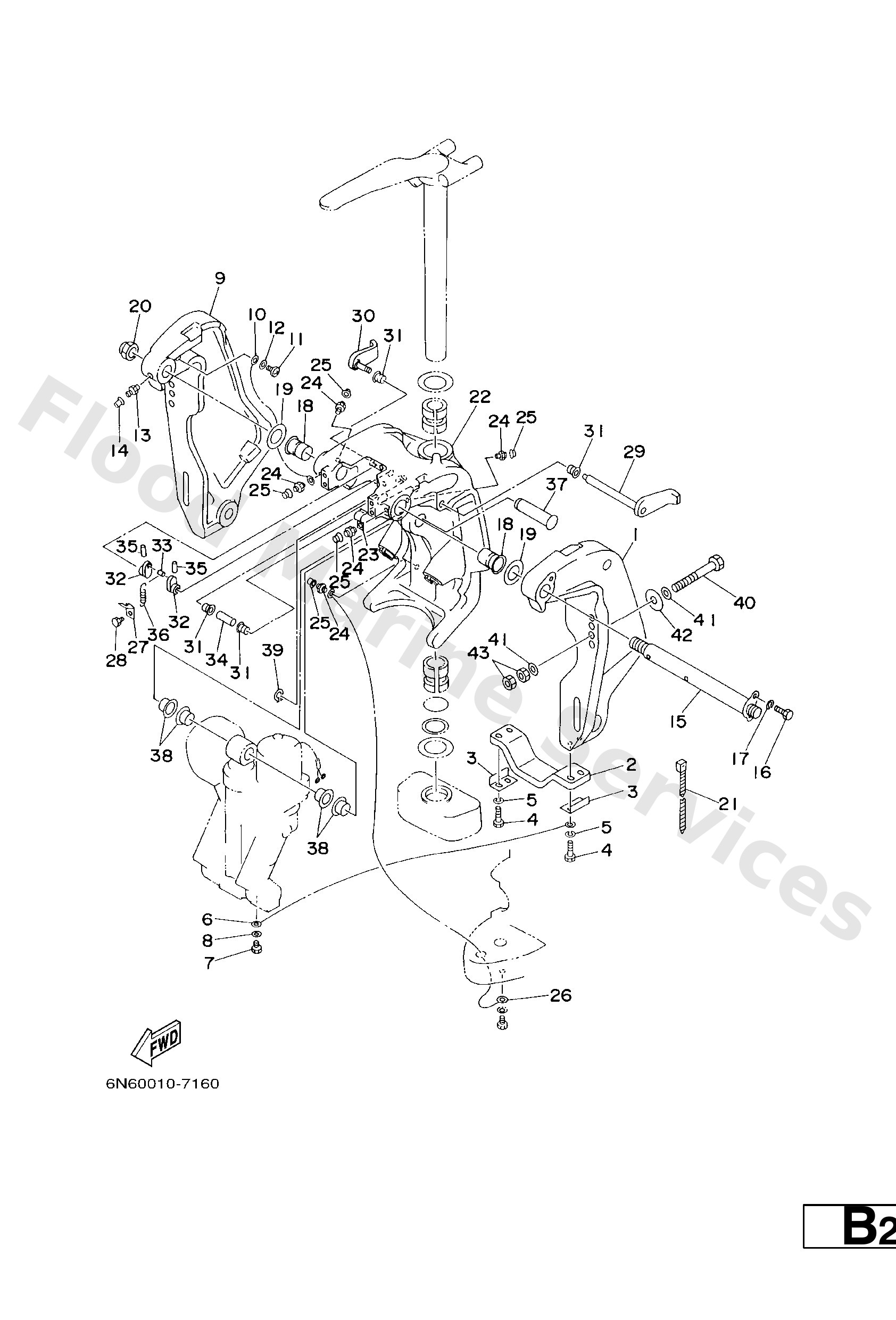

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
64E−43111−02−8D
Bracket, clamp
Loading…
↗
2
6G5−45251−02
Anode
Loading…
↗
3
6G5−44526−00
Plate
Loading…
↗
4
97095−06030
Bolt(jf7)
Loading…
↗
5
92995−06100
Washer(6a1)
Loading…
↗
6
6E5−82148−00
Wire, lead 5
Loading…
↗
7
97095−06010
Bolt
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
64E−43112−02−8D
Bracket, clamp
Loading…
↗
11
97880−06012
Screw, pan head(62j)
Loading…
↗
12
92990−06600
Washer, plain (646)
Loading…
↗
13
93700−06M03
Nipple, grease(6a1)
Loading…
↗
14
663−45119−00
AP
Cap, grease nipple
Loading…
↗
15
64E−43131−01
Bolt, clamp bracket
Loading…
↗
16
97095−08020
Bolt, hexagon
Loading…
↗
17
92995−08100
Ybs67-8 washer, spring
Loading…
↗
18
90386−25M31
Bushing (6e5)
Loading…
↗
19
90201−26M59
Washer, plate (6e5)
Loading…
↗
20
90185−22M11
Nut, self-locking
Loading…
↗
21
90465−11M10
Clamp
Loading…
↗
22
64E−43311−10−8D
L
Bracket, swibel
Loading…
↗
22
64E−43311−20−8D
X
Bracket, swibel
Loading…
↗
23
90465−08M63
Clamp(61u)
Loading…
↗
26
6E5−82147−00
L
Wire, lead 5
Loading…
↗
26
6E5−82147−20
X
Wire, lead 5
Loading…
↗
27
6G5−43144−00
Hook, spring
Loading…
↗
29
6G5−43181−02
Lever, tilt stop 1
Loading…
↗
30
6G5−43185−02
Lever, tilt stop 2
Loading…
↗
31
90386−10M16
Bushing (688)
Loading…
↗
32
6G5−43148−00
Collar, distance
Loading…
↗
33
90249−06M19
Pin(6e5)
Loading…
↗
34
90387−10M05
Collar(6e5)
Loading…
↗
35
91690−30020
Pin, spring (6h4)
Loading…
↗
36
90506−14M24
Spring, tension(6e5)
Loading…
↗
37
64E−43126−00
Pin, upper shock mount
Loading…
↗
38
90386−22M98
Bush(61u)
Loading…
↗
39
93410−22M11
Circlip(61u)
Loading…
↗
40
90101−12M03
FOR TUNA
Bolt (l:115mm)
Loading…
↗
41
90201−13M01
FOR TUNA
Washer, plate(6e5)
Loading…
↗
42
90201−12M05
FOR TUNA
Washe, plate(663)
Loading…
↗
43
95380−12600
FOR TUNA
Nut (707)
Loading…
↗
