E60HWHD (2003)
BRACKET 4

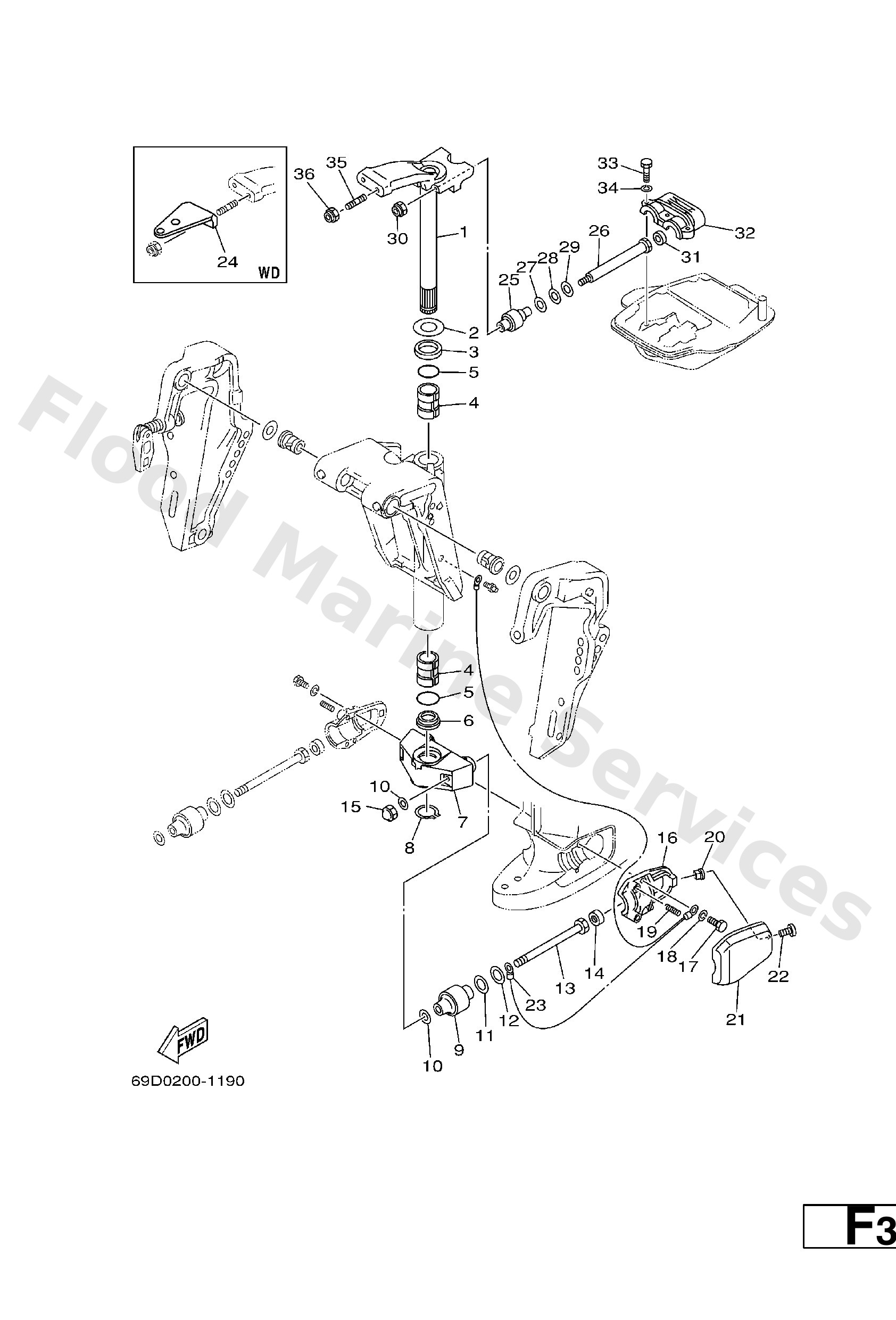

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
69D−42510−10−4D
L/X
Steering Bracket assembly
Loading…
↗
1
6H3−42510−02−4D
S
Steering bracket assembly
Loading…
↗
2
90201−30M00
Washer, plate(6h1)
Loading…
↗
3
90386−30M78
Bush(6h0)
Loading…
↗
4
90386−30M77
Bush(6h0)
Loading…
↗
5
93210−29M94
O-ring(6h1)
Loading…
↗
6
90386−30M60
Bush(6j8)
Loading…
↗
7
6H3−44551−01−4D
S
Housing, lower mount rubber 1
Loading…
↗
7
69D−44551−10−4D
L/X
Housing, lower mount rubber 1
Loading…
↗
8
93410−28M06
Circlip (688)
Loading…
↗
9
688−44555−00−94
X
Mount damper, lower side
Loading…
↗
9
687−44555−00−94
S/L
Mount damper, lower side
Loading…
↗
10
90201−12M16
Washer, plate (679)
Loading…
↗
11
90202−25M04
Washer, plate (663)
Loading…
↗
12
90201−13M19
Washer, plate (663)
Loading…
↗
13
90109−12M21
Bolt (6h3)
Loading…
↗
14
663−44575−00
Damper, lower mount rubber
Loading…
↗
15
95380−12800
Nut crown(663)
Loading…
↗
16
6H3−44552−03−94
Housing, lower mount rubber
Loading…
↗
17
97075−08025
Bolt, hexagon deep recess
Loading…
↗
18
92995−08100
Ybs67-8 washer, spring
Loading…
↗
19
90501−14M08
Spring, compression(64j)
Loading…
↗
20
90179−06066
Nut(663)
Loading…
↗
21
6H3−44553−01−4D
Cover, lower mount
Loading…
↗
22
97885−06016
Screw, pan head(6b0)
Loading…
↗
23
697−82127−01
S
Wire, lead 2
Loading…
↗
23
688−82127−02
L/X
Wire, lead 2
Loading…
↗
24
6H3−48511−51−4D
STEERING GUIDE
Hook, steering
Loading…
↗
25
688−44514−00−94
Mount damper, upper side
Loading…
↗
26
90101−10M49
Bolt
Loading…
↗
27
90201−20M21
Washer, plate (688)
Loading…
↗
28
90202−20M06
Washer, plate (688)
Loading…
↗
29
90201−11M22
Washer, plate (688)
Loading…
↗
30
90185−10051
Nut, self-locking
Loading…
↗
32
688−44511−00−94
Cover, upper mount
Loading…
↗
33
97075−08035
Bolt(70w)
Loading…
↗
35
90116−10M28
Bolt, stud
Loading…
↗
