F200D (2025)
BRACKET 4

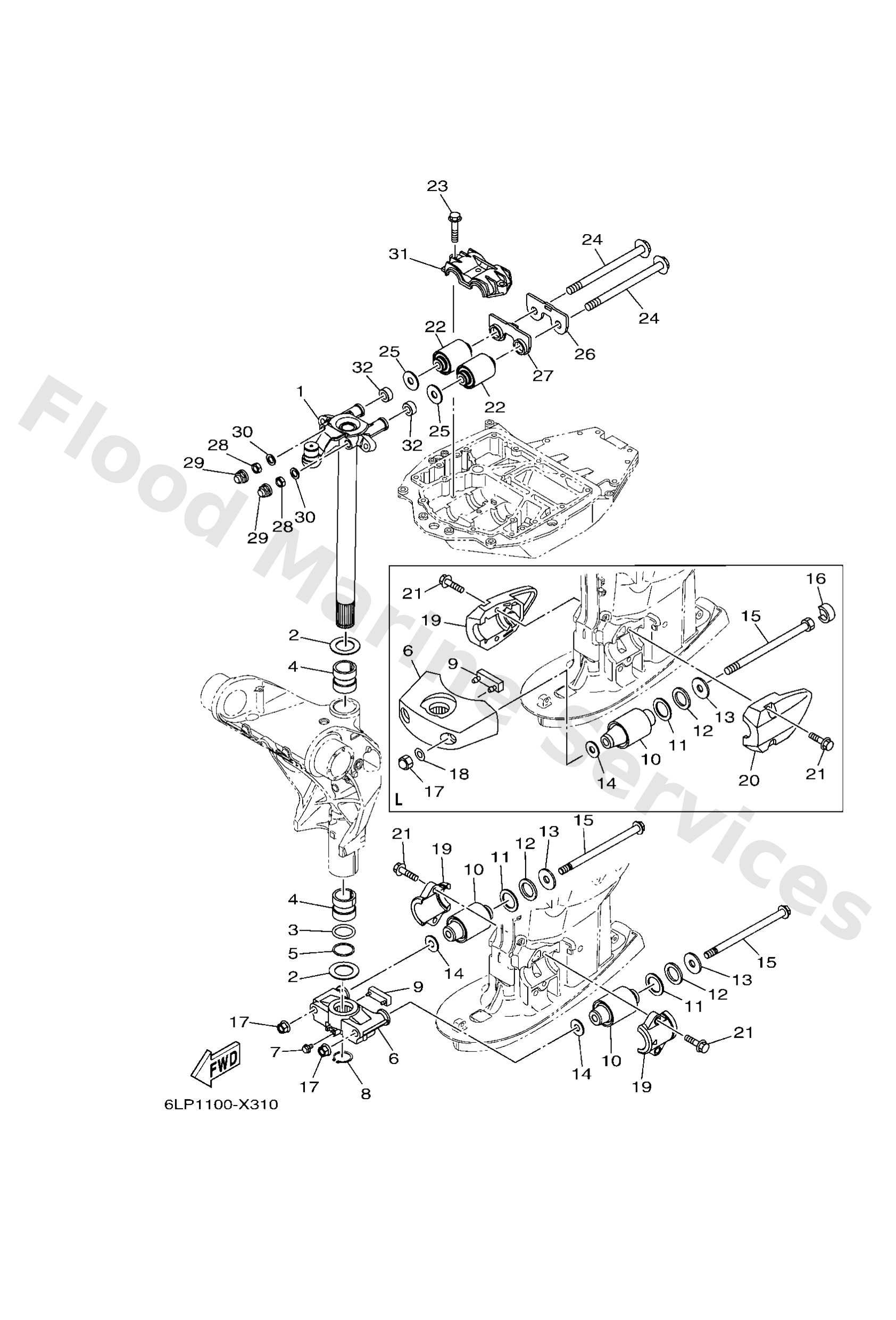

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
6LP42510008D
L(20.3")
Steering bracket assembly
Loading…
↗
1
6LP42510108D
X(25.2")
Steering bracket assembly
Loading…
↗
2
9020138M60
Washer, plate (6e5)
Loading…
↗
3
9321037MH7
O-ring(61u)
Loading…
↗
4
9038638M32
Bush(6e5)
Loading…
↗
5
9020240M47
Washer, plate(61a)
Loading…
↗
6
6DA4455100CA
X(25.2")
Housing, lower mount rubber 1
Loading…
↗
6
68V44551008D
L(20.3")
Housing, lower mount rubber
Loading…
↗
7
95D9506010
X(25.2")
Bolt, flange deep recess
Loading…
↗
8
9341036102
Circlip
Loading…
↗
9
6DA4457500
X(25.2")
Damper, lower mount rubber
Loading…
↗
9
61A4457501
L(20.3")
Damper, lower mount rubber
Loading…
↗
10
63P4455500
X(25.2")
Mount damper, lower side
Loading…
↗
10
60V4455500
L(20.3")
Mount damper, lower side
Loading…
↗
11
9020135008
Washer, plate
Loading…
↗
12
9020232M19
Washer, plate (6e5)
Loading…
↗
13
9020116M55
Washer, plate (6e5)
Loading…
↗
14
9020115M58
Washer, plate (6e5)
Loading…
↗
15
9010114005
L(20.3")
Bolt
Loading…
↗
15
9010514012
X(25.2")
Bolt, flange
Loading…
↗
16
69J4453300
L(20.3")
Damper, upper mount rubber
Loading…
↗
17
9560414200
X(25.2")
Nut, self-locking(4tr)
Loading…
↗
17
9017614002
L(20.3")
Nut, crown
Loading…
↗
18
9299514600
L(20.3")
Washer (6e5)
Loading…
↗
19
6DA4455200CA
X(25.2")
Housing, lower mount rubber 2
Loading…
↗
19
63P44553008D
L(20.3")
Cover, lower mount
Loading…
↗
20
63P44556008D
L(20.3")
Cover, lower mount 2
Loading…
↗
21
9011910058
Bolt, with washer
Loading…
↗
22
6DA4451400
Mount damper, upper side
Loading…
↗
23
9011910024
Bolt, with washer
Loading…
↗
25
9020116M01
Washer, plate(61a)
Loading…
↗
26
6DA4452600
Plate
Loading…
↗
27
6DA4453200
Stopper, upper mount
Loading…
↗
28
9018514M00
Nut, self-locking(61a)
Loading…
↗
29
6DA4419400
Cap
Loading…
↗
31
63P4451100
Cover, upper mount
Loading…
↗
32
9038714004
Collar
Loading…
↗
