LF200CB (2024)
BRACKET 4

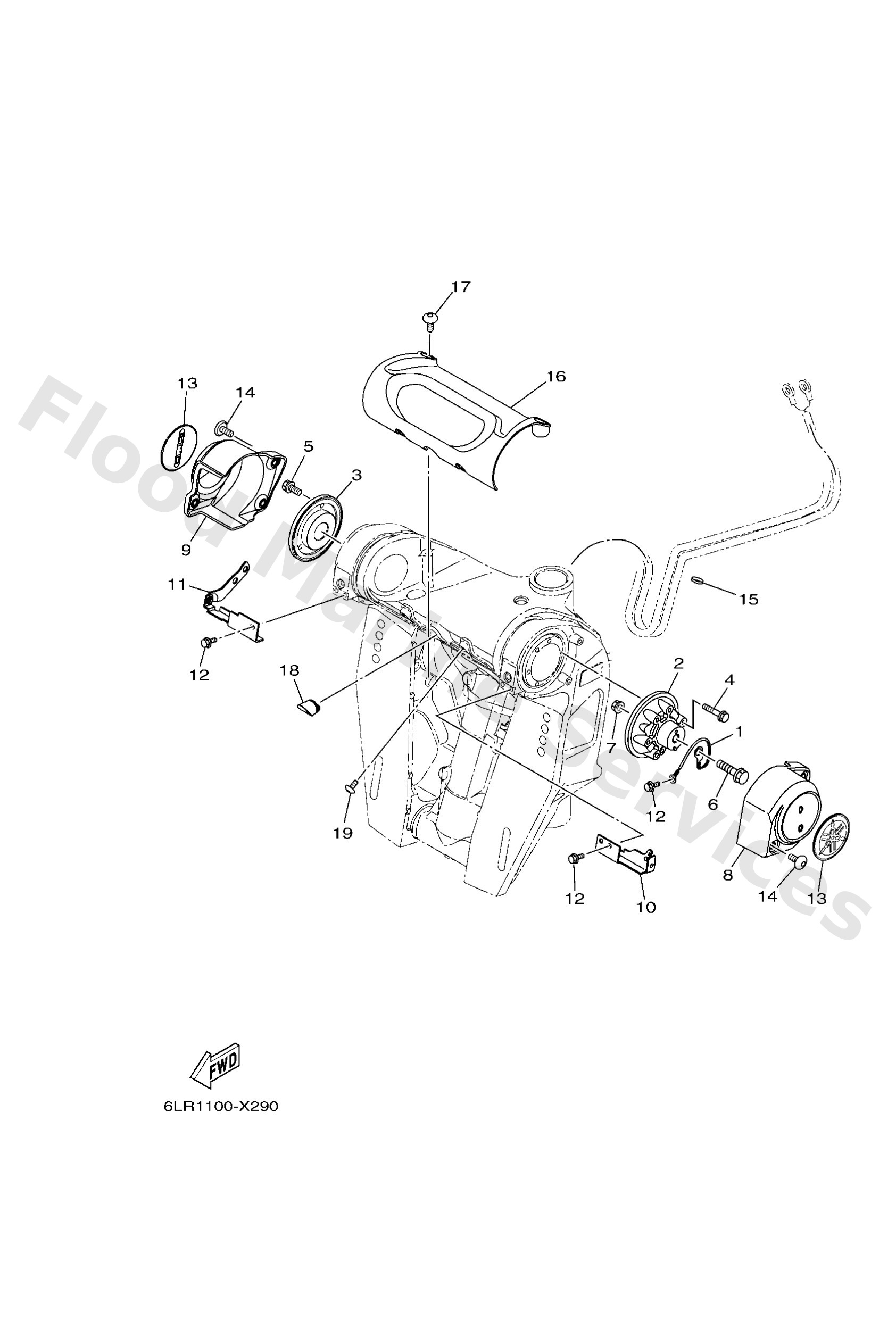

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
6LH8214700
Wire, lead 5
Loading…
↗
2
6LH4334100
Cover, swivel side 1
Loading…
↗
3
6LH4334200
Cover, swivel side 2
Loading…
↗
4
9011906323
Bolt, with washer
Loading…
↗
5
97E7506520
Bolt, hexagon w/w deep recess
Loading…
↗
6
9011910058
Bolt, with washer
Loading…
↗
7
9017910M03
Nut (689)
Loading…
↗
8
6LP43381008D
Cover, 2
Loading…
↗
9
6LR43382008D
Cover, 3
Loading…
↗
10
6LP4452600
Plate
Loading…
↗
11
6LP4453600
Plate 2
Loading…
↗
12
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
13
6DA4269700
Tuning fork mark
Loading…
↗
14
9011106144
Bolt,hex. socket button
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6LH43318008D
Cover
Loading…
↗
18
6LH4388500
Grommet
Loading…
↗
