VF175LA (2022)
BRACKET 4

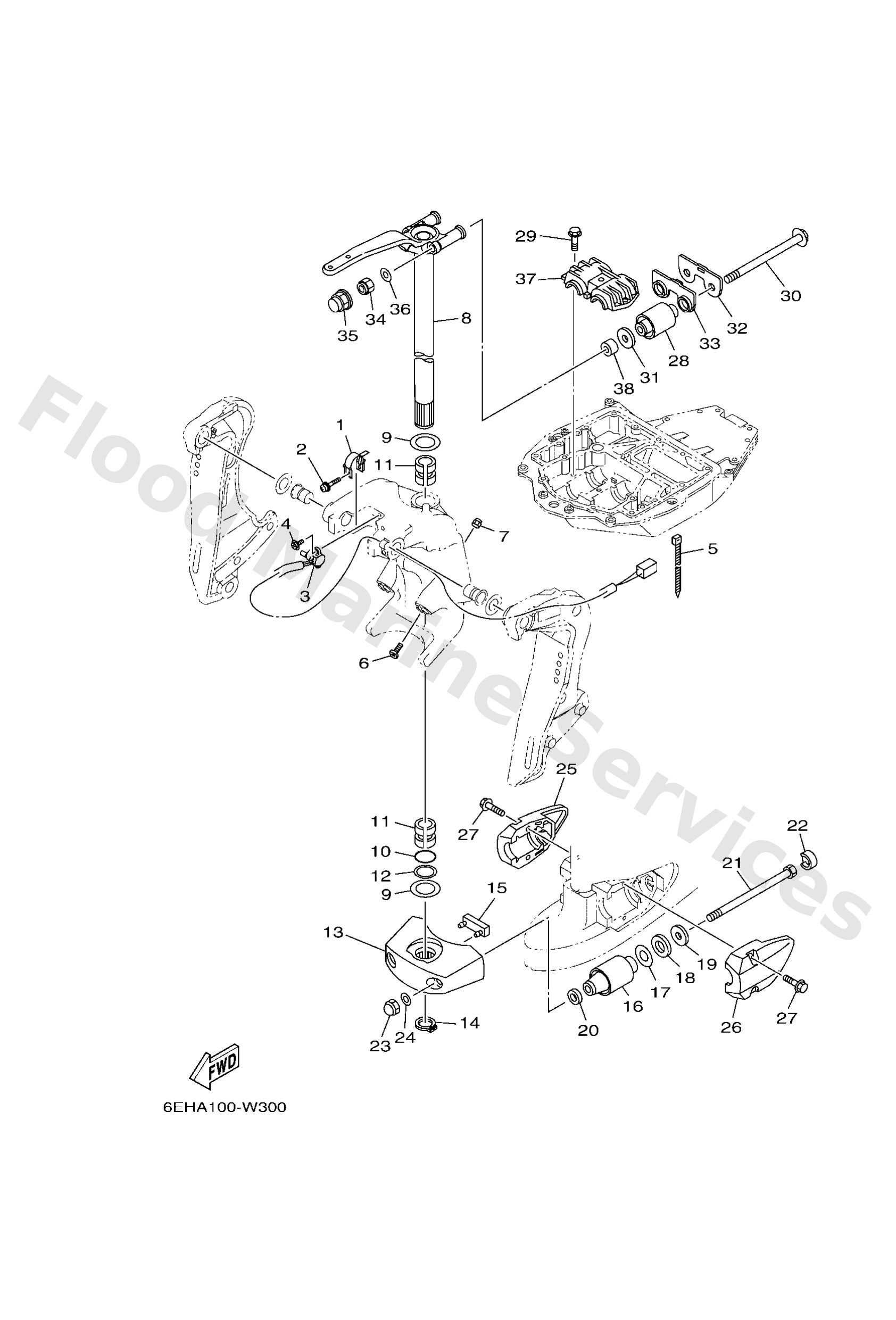

Diagram: BRACKET 4
Parts List
Reference
Description
Price
1
64E4313911
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
67H8367202
Trim sender
Loading…
↗
4
9798506216
Screw, with washer(6h2)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
61A4337600
Bolt, thrust receiver
Loading…
↗
7
9578010300
Nut, nylon (6e5)
Loading…
↗
8
6DA42510108D
Steering bracket assembly
Loading…
↗
9
9020138M60
Washer, plate (6e5)
Loading…
↗
10
9321037MH7
O-ring(61u)
Loading…
↗
11
9038638M32
Bush(6e5)
Loading…
↗
12
9020240M47
Washer, plate(61a)
Loading…
↗
13
68V44551008D
Housing, lower mount rubber
Loading…
↗
14
9341037M04
Circlip (6e5)
Loading…
↗
15
61A4457501
Damper, lower mount rubber
Loading…
↗
16
60V4455500
Mount damper, lower side
Loading…
↗
17
9020135008
Washer, plate
Loading…
↗
18
9020232M19
Washer, plate (6e5)
Loading…
↗
19
9020116M55
Washer, plate (6e5)
Loading…
↗
20
9020115M58
Washer, plate (6e5)
Loading…
↗
21
9010114005
Bolt
Loading…
↗
22
69J4453300
Damper, upper mount rubber
Loading…
↗
23
9017614002
Nut, crown
Loading…
↗
24
9299514600
Washer (6e5)
Loading…
↗
25
63P44553008D
Cover, lower mount
Loading…
↗
26
63P44556008D
Cover, lower mount 2
Loading…
↗
27
9011910058
Bolt, with washer
Loading…
↗
28
6DA4451400
Mount damper, upper side
Loading…
↗
29
9011910024
Bolt, with washer
Loading…
↗
30
9010514009
Bolt, flange
Loading…
↗
31
9020116M01
Washer, plate(61a)
Loading…
↗
32
6DA4452600
Plate
Loading…
↗
33
6DA4453200
Stopper, upper mount
Loading…
↗
34
9018514M00
Nut, self-locking(61a)
Loading…
↗
35
6DA4419400
Cap
Loading…
↗
37
63P4451100
Cover, upper mount
Loading…
↗
38
9038714004
Collar
Loading…
↗
