55BED (2005)
BRACKET 5

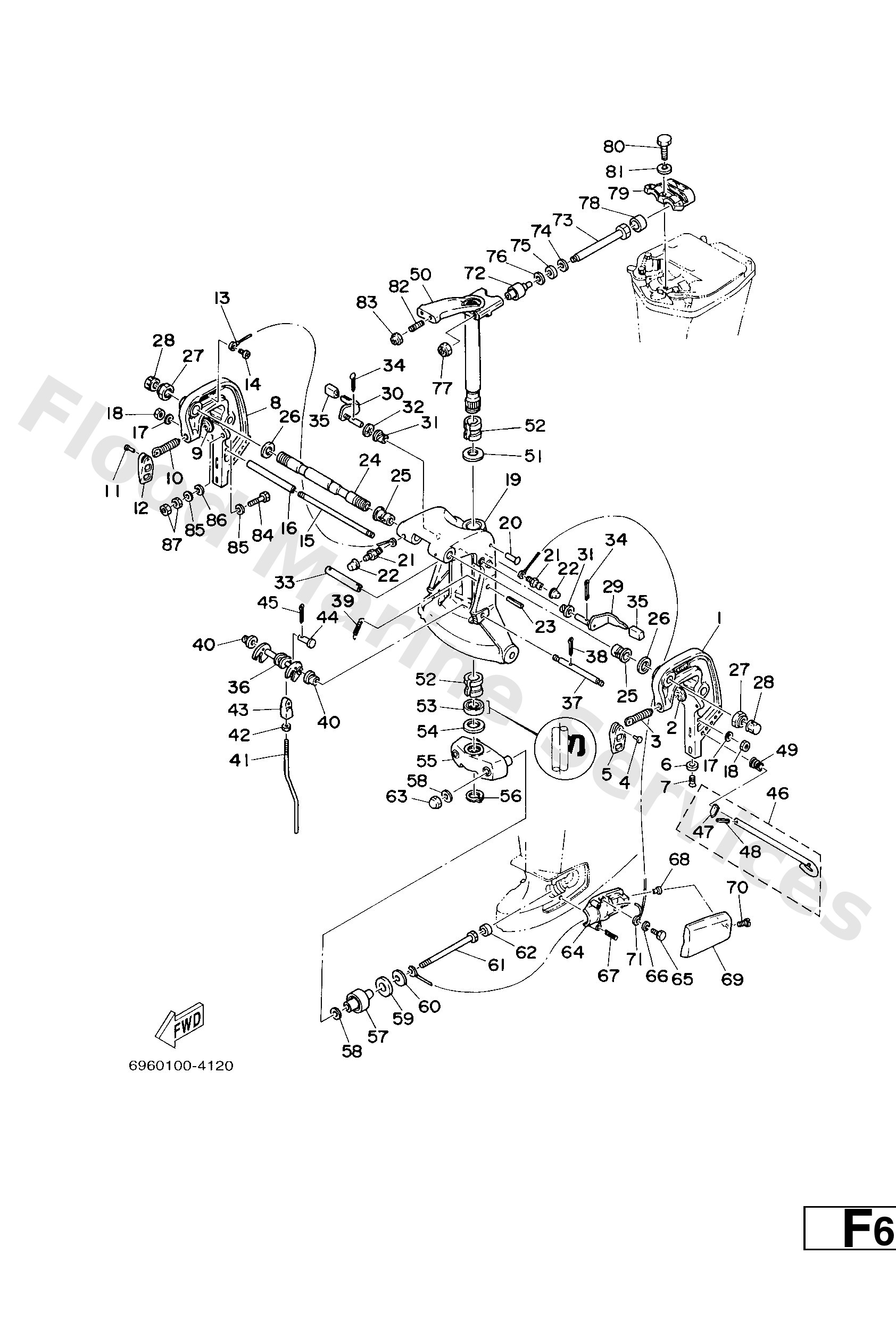

Diagram: BRACKET 5
Parts List
Reference
Description
Price
1
69643111014D
Bracket, clamp
Loading…
↗
2
6484311401
Pad, transom clamp
Loading…
↗
3
6634311601
Screw, transom
Loading…
↗
4
9024304007
Pin (663)
Loading…
↗
5
66343118014D
Handle, transom clamp
Loading…
↗
6
6634525100
Anode
Loading…
↗
7
9015206M01
Screw, countersunk
Loading…
↗
8
69643112004D
Bracket, clamp
Loading…
↗
13
6E58214800
Wire, lead 5
Loading…
↗
14
9788006012
Screw, pan head(62j)
Loading…
↗
15
6634312300
Bolt, clamp bracket 2
Loading…
↗
16
9038710M03
Collar(697)
Loading…
↗
17
9299010600
Washer, plate
Loading…
↗
18
9538010600
Nut(624)
Loading…
↗
19
69643311004D
S
Bracket, swivel
Loading…
↗
19
69643311104D
L
Bracket, swivel
Loading…
↗
20
9026903010
Rivet (663)
Loading…
↗
21
9370006M03
Nipple, grease(6a1)
Loading…
↗
22
6634511900
AP
Cap, grease nipple
Loading…
↗
23
9169040040
Pin, spring (663)
Loading…
↗
24
6964313101
Bolt, clamp bracket
Loading…
↗
25
9038622M15
Bushing (688)
Loading…
↗
26
9020122M03
Washer, plate(64j)
Loading…
↗
27
9018522043
Nut, self-locking
Loading…
↗
28
6G54314501
Cap, clamp bracket
Loading…
↗
29
6974318102
Lever, tilt stop 1
Loading…
↗
30
6974318502
Lever, tilt stop 2
Loading…
↗
31
9038610045
Bush (663)
Loading…
↗
32
9020610M08
Washer, wave (688)
Loading…
↗
33
9038710269
Collar
Loading…
↗
34
9149030025
Pin cotter
Loading…
↗
35
6634331800
Cover
Loading…
↗
36
6964361000
Tilt lock ass'y
Loading…
↗
37
6964361100
Shaft, tilt lock
Loading…
↗
38
9149025025
Pin, cotter(6l5)
Loading…
↗
39
9050612078
Spring tenssion(663)
Loading…
↗
41
6704361601
S
Rod, tilt lock 1
Loading…
↗
41
6704361611
L
Rod, tilt lock 1
Loading…
↗
42
9538008600
Nut (661)
Loading…
↗
43
6634365300
Nut, conection
Loading…
↗
44
9024008M21
Pin, clevis
Loading…
↗
45
9149020012
Pin, cotter (648)
Loading…
↗
46
6764316002
Tilt rod assembly
Loading…
↗
47
6764316500
Stopper plate, titl lock rod
Loading…
↗
48
9169030010
Pin, spring (663)
Loading…
↗
49
9050210M04
Spring, conical(6f5)
Loading…
↗
50
66342510044D
S
Steering bracket assembly
Loading…
↗
50
66342510144D
L
Steering bracket assembly
Loading…
↗
51
9020130M00
Washer, plate(6h1)
Loading…
↗
52
9038630048
Bush
Loading…
↗
53
9310930M03
Oil seal (688)
Loading…
↗
54
9020131418
Washer plate(663)
Loading…
↗
55
66344551024D
Housing, lower mount rubber
Loading…
↗
56
9341028M06
Circlip (688)
Loading…
↗
57
670445550094
Mount damper, lower side
Loading…
↗
58
9020112M16
Washer, plate (679)
Loading…
↗
59
9020221100
Washer plate (663)
Loading…
↗
60
9020113421
Washer, plate (679)
Loading…
↗
61
9010912261
Bolt(663)
Loading…
↗
62
6704457500
Damper, lower mount 1
Loading…
↗
63
9538012800
Nut crown(663)
Loading…
↗
64
663445520194
Housing, lower mount rubber
Loading…
↗
65
9707508025
Bolt, hexagon deep recess
Loading…
↗
66
9299508100
Ybs67-8 washer, spring
Loading…
↗
67
9050114M08
Spring, compression(64j)
Loading…
↗
68
9017906066
Nut(663)
Loading…
↗
69
66344553014D
Cover, lower mount
Loading…
↗
70
9788506016
Screw, pan head(6b0)
Loading…
↗
71
6968212700
S
Wire, lead 2
Loading…
↗
71
6968212710
L
Wire, lead 2
Loading…
↗
72
670445140094
Mount damper, upper side
Loading…
↗
73
9010908262
Bolt(663)
Loading…
↗
74
9020115423
Washer, plate(663)
Loading…
↗
75
9020215095
Washer, plate(670)
Loading…
↗
76
9020109425
Washer, plate (663)
Loading…
↗
77
9018508045
Nut, self-locking
Loading…
↗
78
6634453300
Damper, upper mount
Loading…
↗
79
663445110094
Cover, upper mount
Loading…
↗
80
9707508035
Bolt(70w)
Loading…
↗
82
9011610175
Bolt, stud
Loading…
↗
83
9018510051
Nut, self-locking
Loading…
↗
84
9010110M58
Bolt
Loading…
↗
85
9299510600
Washer, plate
Loading…
↗
86
9020112426
Washe, plate(663)
Loading…
↗
