E115AWH (2003)
BRACKET 5

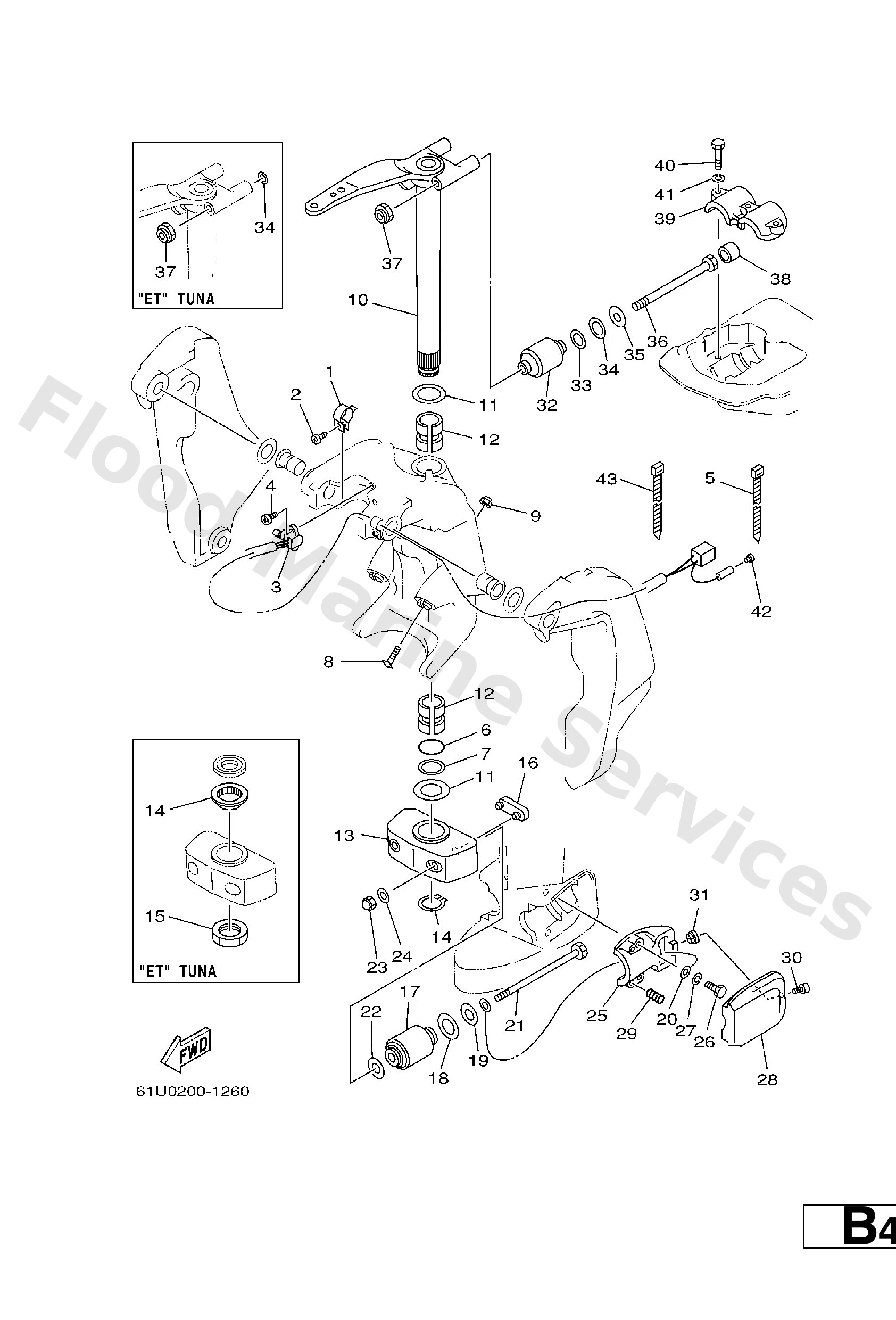

Diagram: BRACKET 5
Parts List
Reference
Description
Price
1
64E−43139−02
Cam, trim sender (with screw)
Loading…
↗
2
97780−60525
Screw, tapping(65j)
Loading…
↗
3
64E−83672−02
Trim sender
Loading…
↗
4
97885−06016
Screw, pan head(6b0)
Loading…
↗
5
90465−11M10
Clamp
Loading…
↗
6
93210−37MH7
O-ring(61u)
Loading…
↗
7
90202−40M47
Washer, plate(61a)
Loading…
↗
8
61A−43376−00
Bolt, thrust receiver
Loading…
↗
9
95780−10300
Nut, nylon (6e5)
Loading…
↗
10
6E5−42510−05−8D
L
Steering bracket assembly
Loading…
↗
10
6E5−42510−25−8D
X
Steering bracket assembly
Loading…
↗
10
6E5−42510−61−8D
L−FOR TUNA
Steering bracket assembly
Loading…
↗
11
90201−38M60
FOR TUNA
Washer, plate (6e5)
Loading…
↗
12
90386−38M89
FOR TUNA
Bush(6e5)
Loading…
↗
12
90386−38M32
Bush(6e5)
Loading…
↗
13
6G5−44551−01−8D
Housing, lower mount rubber
Loading…
↗
13
6E5−44551−61−8D
FOR TUNA
Housing, Lower Mount Rubber
Loading…
↗
14
93410−37M04
Circlip (6e5)
Loading…
↗
14
6E5−42535−60
FOR TUNA
Washer, thrust
Loading…
↗
15
6E5−42546−60
FOR TUNA
Nut
Loading…
↗
16
6E5−44575−00
Damper, lower mount rubber
Loading…
↗
17
6E5−44555−00−94
Mount damper, lower side
Loading…
↗
18
90202−32M19
Washer, plate (6e5)
Loading…
↗
19
90201−16M55
Washer, plate (6e5)
Loading…
↗
20
6E5−82149−00
Wire, lead 3
Loading…
↗
21
90109−14M34
Bolt(6e5)
Loading…
↗
21
90109−14M54
FOR TUNA
Bolt(6e5)
Loading…
↗
22
90201−15M58
Washer, plate (6e5)
Loading…
↗
23
90185−14M00
FOR TUNA
Nut, self-locking(61a)
Loading…
↗
23
95380−14800
Nut, crown (6e5)
Loading…
↗
24
92995−14600
Washer (6e5)
Loading…
↗
25
6E5−44552−01−94
Housing, lower mount rubber
Loading…
↗
26
97095−10045
Bolt(64d)
Loading…
↗
27
92995−10100
Ybs67-10 washer, spring
Loading…
↗
28
6E5−44553−01−8D
Cover, lower mount
Loading…
↗
29
90501−16M28
Spring (6e5)
Loading…
↗
31
90179−06066
Nut(663)
Loading…
↗
32
6E5−44514−00−94
Mount damper, upper side
Loading…
↗
32
6E5−44514−60−94
FOR TUNA
Mount damper, upper side
Loading…
↗
33
90201−26M57
Washer, plate (6e5)
Loading…
↗
34
92995−14200
FOR TUNA
23 −
Loading…
↗
34
90202−26M18
Washer, plate (6e5)
Loading…
↗
35
90201−14M56
Washer, plate (6e5)
Loading…
↗
35
90201−15M00
FOR TUNA
Washer, plate(6e5)
Loading…
↗
36
90109−12M37
Bolt
Loading…
↗
36
90109−14M53
FOR TUNA
Bolt(6e5)
Loading…
↗
37
90185−12M12
Nut, self-locking(6e5)
Loading…
↗
38
663−44575−00
EXCEPT FOR TUNA
Damper, lower mount rubber
Loading…
↗
39
6E5−44511−00−5B
Cover, upper mount
Loading…
↗
39
6E5−44511−60−5B
FOR TUNA
Cover, upper mount
Loading…
↗
42
703−82119−00
Cover, lead wire
Loading…
↗
43
90465−13M18
Clamp
Loading…
↗
