F200D (2025)
BRACKET 5

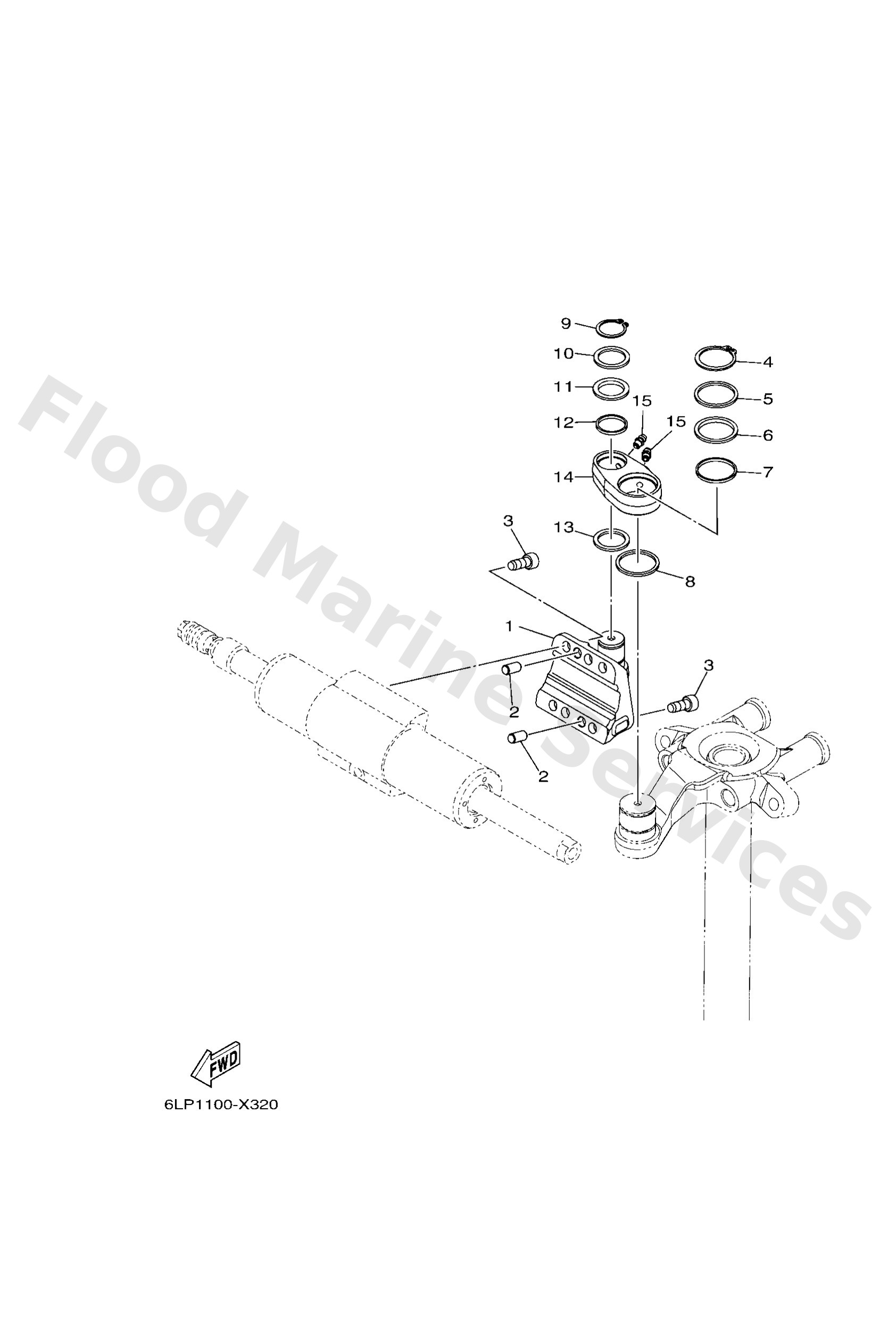

Diagram: BRACKET 5
Parts List
Reference
Description
Price
1
6LP43676008D
Hook
Loading…
↗
2
9360816M16
Pin, dowel(6t4)
Loading…
↗
3
9011008133
Bolt, hexagon socket head
Loading…
↗
4
9341030101
Circlip
Loading…
↗
5
9020131008
Washer, plate
Loading…
↗
6
9038730015
Collar
Loading…
↗
7
9321029282
O-ring (498)
Loading…
↗
8
9020231001
Washer, plate
Loading…
↗
9
9341022M11
Circlip(61u)
Loading…
↗
10
9020123018
Washer, plate
Loading…
↗
11
9038722040
Collar
Loading…
↗
12
9321022298
O-ring
Loading…
↗
13
9020223001
Washer, plate
Loading…
↗
14
6LP4813300
Plate, link
Loading…
↗
15
9370006002
Nipple, grease
Loading…
↗
