115BETO (1997)
Bottom Cowling

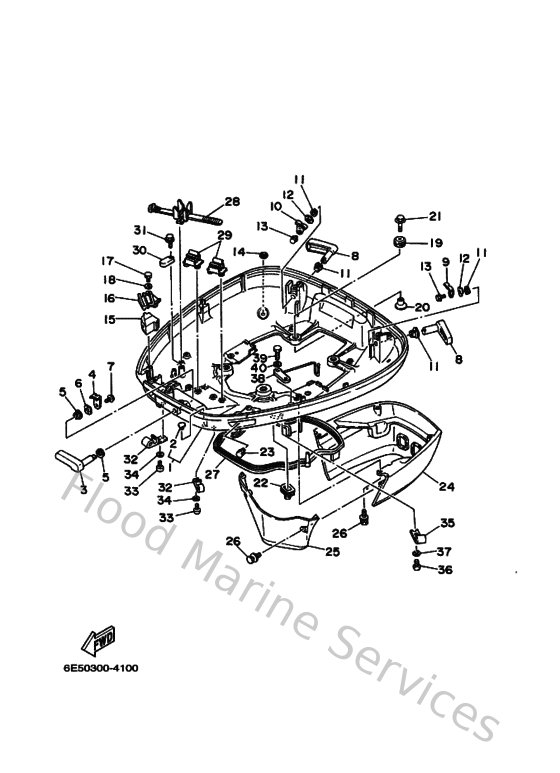

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6E5W4271054D
Cowling, bottom
Loading…
↗
2
6H4427480000
Grommet
Loading…
↗
3
68842815014D
Lever, clamp
Loading…
↗
4
688428160000
Lever, clamp 2
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
9011906M0900
Bolt, with washer
Loading…
↗
8
6E542817014D
Lever, clamp
Loading…
↗
9
6G5428160000
Lever, clamp 2
Loading…
↗
10
6E5428160100
Lever, clamp 2
Loading…
↗
14
6E5443910000
Nipple, hose
Loading…
↗
15
6E5427251100
Grommet
Loading…
↗
16
6E542738018D
Plate, fitting
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
9048022M1500
Grommet (6e5)
Loading…
↗
20
9038708M3700
Coller (6e5)
Loading…
↗
21
9011908M2200
Bolt, with washer
Loading…
↗
22
688427261000
Grommet
Loading…
↗
23
9048013M2400
Grommet (6e9)
Loading…
↗
24
6E542741014D
Apron
Loading…
↗
25
6E542771014D
Apron
Loading…
↗
26
970800602000
Bolt(7u8)
Loading…
↗
27
6E5427160000
Seal
Loading…
↗
28
688825940000
Clamp
Loading…
↗
29
6E5825940000
Clamp
Loading…
↗
30
6E5825880000
Plate
Loading…
↗
32
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
33
9015706M0100
Screw (6e5)
Loading…
↗
35
6E5243671000
Clamp, fuel pipe 2
Loading…
↗
38
6K7825880000
Plate
Loading…
↗
39
970950602000
Bolt(7u8)
Loading…
↗
