15DEH (1995)
Bottom Cowling

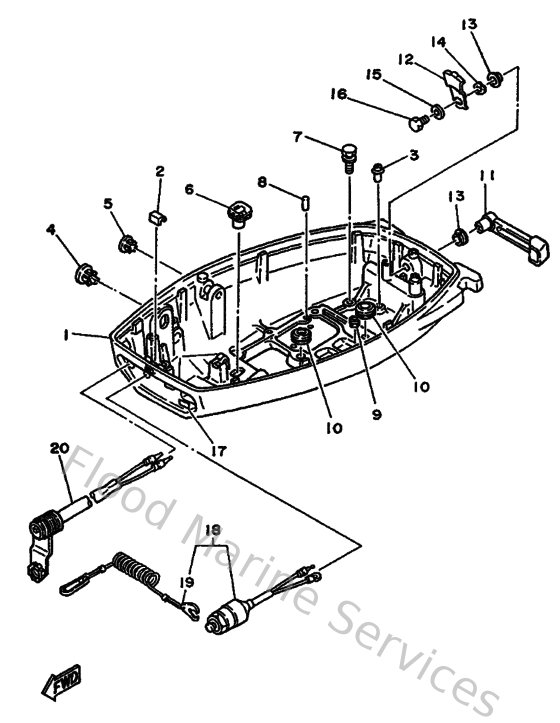

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
68242711034D
Cowling, Bottom
Loading…
↗
3
650243780000
Pipe, joint 2
Loading…
↗
4
682427250200
Grommet
Loading…
↗
5
682427260000
Grommet 3
Loading…
↗
6
682427270000
Grommet
Loading…
↗
7
975950652000
Bolt(7u8)
Loading…
↗
8
936061201900
Pin, dowel (614)
Loading…
↗
9
682443660000
Water seal 2
Loading…
↗
10
682443670000
Rubber water seal 3
Loading…
↗
11
68242815004D
Lever, Clamp
Loading…
↗
12
6E7428160000
Lever, clamp 2
Loading…
↗
13
903861206900
Bush(666)
Loading…
↗
14
902061205200
Washer, wave (666)
Loading…
↗
15
9020106M0200
Washer,plate (6k8)
Loading…
↗
16
970850601000
Bolt
Loading…
↗
17
6A1427920100
Mark (100:1)
Loading…
↗
18
6E9825750200
Engine stop switch assembly
Loading…
↗
19
682825560000
Lanyard, stop switch
Loading…
↗
20
682843810000
2p concent 1
Loading…
↗
