15FMC (2000)
Bottom Cowling

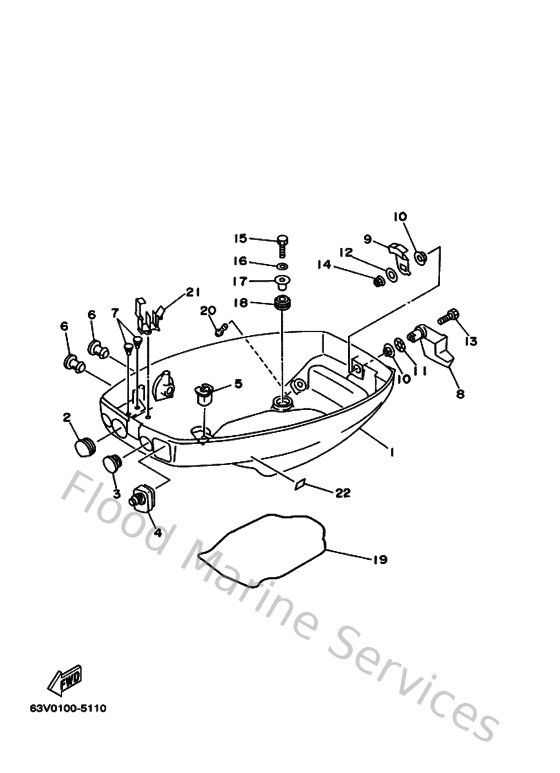

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
63V42711034D
Cowling, bottom
Loading…
↗
3
682427250200
Grommet
Loading…
↗
4
63V427260000
Grommet
Loading…
↗
5
682427270000
Grommet
Loading…
↗
6
6G1427480000
Grommet
Loading…
↗
7
9048006M1900
Grommet (6e3)
Loading…
↗
8
63V42815018D
Lever, clamp
Loading…
↗
9
6E7428160000
Lever, clamp 2
Loading…
↗
10
9038612M4500
Bushing (6g1)
Loading…
↗
11
902061205200
Washer, wave (666)
Loading…
↗
12
902010606800
Washer,plate (6k8)
Loading…
↗
13
9010106M2700
Bolt
Loading…
↗
14
953800670000
Nut
Loading…
↗
15
970950602500
Bolt
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
9038706M5200
Collar (6g1)
Loading…
↗
18
9048015M3100
Grommet (6g1)
Loading…
↗
19
63V427160100
Rubber, seal 1
Loading…
↗
20
6H3443910100
Nipple, hose
Loading…
↗
21
9046525M5700
Clamp(63v)
Loading…
↗
22
6A1427920100
Mark (100:1)
Loading…
↗
