Yamaha Outboard Parts - Bottom Cowling - 200GETOL (1996) | Flood Marine

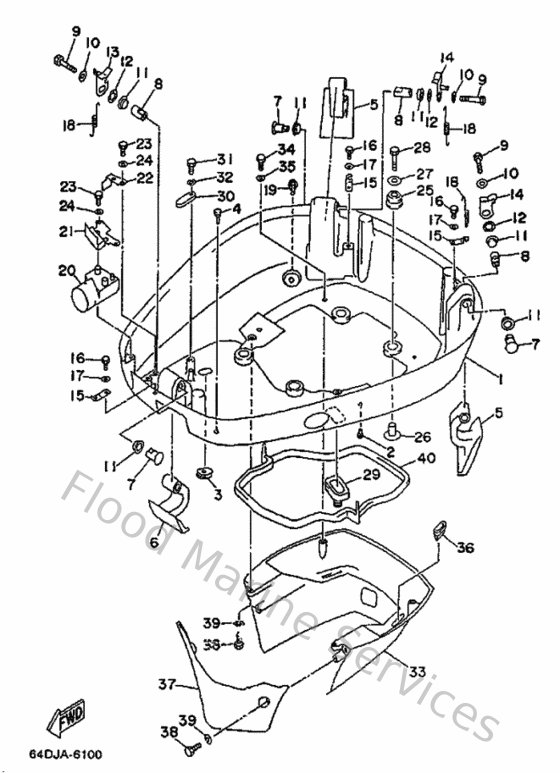

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
64D42711008D
Cowling, bottom
Loading…

↗
2
9048006M1900
Grommet (6e3)
Loading…

↗
3
61A427270000
Grommet
Loading…

↗
4
6H4427480000
Grommet
Loading…

↗
5
64D42815008D
Lever, clamp
Loading…

↗
6
64D42816004D
Lever, clamp
Loading…

↗
7
64D428350000
Pin, set1
Loading…

↗
9
970950604000
Bolt (682)
Loading…

↗
10
9020106M0200
Washer,plate (6k8)
Loading…

↗
11
9038615M7300
Bush(6l2)
Loading…

↗
12
9020615M1800
Washer, wave(6l2)
Loading…

↗
15
64D431440000
Hook, spring
Loading…

↗
16
970900601200
Bolt(gh1)
Loading…

↗
17
929900660000
Washer, plain (646)
Loading…

↗
18
9050616M3400
Spring, tension(64d)
Loading…

↗
19
6E5443910000
Nipple, hose
Loading…

↗
20
64D427252000
Grommet
Loading…

↗
21
64D42738008D
Plate, fitting
Loading…

↗
22
64D427381100
Plate, fitting
Loading…

↗
23
970950601600
Bolt, hexagon deep recess
Loading…

↗
25
9048022M1500
Grommet (6e5)
Loading…

↗
26
9038708M3700
Coller (6e5)
Loading…

↗
27
9020108M5400
Washer, plate (6e5)
Loading…

↗
28
970950803500
Bolt(70w)
Loading…

↗
29
688427261000
Grommet
Loading…

↗
30
6E5825880000
Plate
Loading…

↗
31
970800602000
Bolt(7u8)
Loading…

↗
33
6R342741028D
Apron
Loading…

↗
34
970950602000
Bolt(7u8)
Loading…

↗
36
64D427170000
Rubber Seal 2
Loading…

↗
37
6R342771018D
Apron
Loading…

↗
40
6E5427161000
Rubber seal 1
Loading…

↗
