200GETOL (2001)
Bottom Cowling

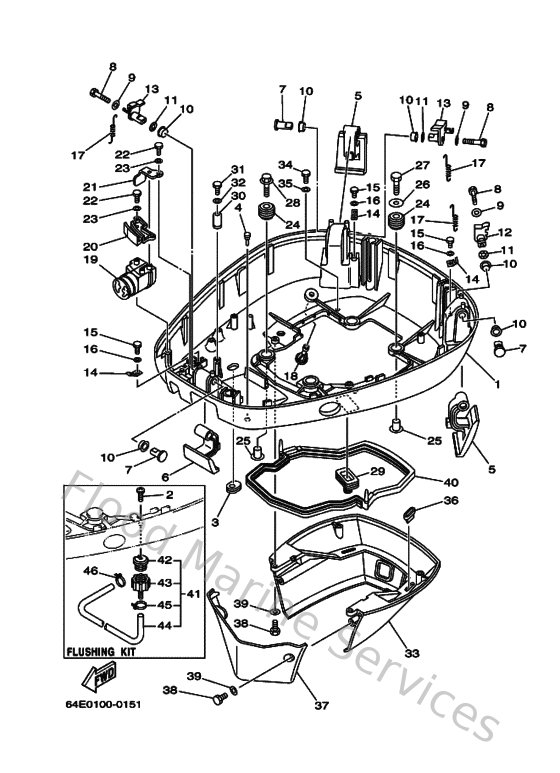

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
64D42711018D
Cowling, bottom
Loading…
↗
2
9016905M0000
Screw truss head tapping
Loading…
↗
3
61A427270000
Grommet
Loading…
↗
4
6H4427480000
Grommet
Loading…
↗
5
64D42815004D
Lever, clamp
Loading…
↗
6
64D42816004D
Lever, clamp
Loading…
↗
7
64D428350000
Pin, set1
Loading…
↗
8
970950604000
Bolt (682)
Loading…
↗
9
902010606800
Washer,plate (6k8)
Loading…
↗
10
9038615M7300
Bush(6l2)
Loading…
↗
11
9020615M1800
Washer, wave(6l2)
Loading…
↗
12
64D428182000
Lever, clamp
Loading…
↗
13
64D428183000
Lever, clamp
Loading…
↗
14
64D431440000
Hook, spring
Loading…
↗
15
970800601200
Bolt(gh1)
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
9050616M3400
Spring, tension(64d)
Loading…
↗
18
6E5443910000
Nipple, hose
Loading…
↗
19
64D427252000
Grommet
Loading…
↗
20
64D42738005B
Plate, fitting
Loading…
↗
21
64D427381100
Plate, fitting
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
23
929950660000
Washer, plain (646)
Loading…
↗
24
9048022M1500
Grommet (6e5)
Loading…
↗
25
9038708M3700
Coller (6e5)
Loading…
↗
26
9020108M5400
Washer, plate (6e5)
Loading…
↗
27
970950803500
Bolt(70w)
Loading…
↗
28
9011908M2200
Bolt, with washer
Loading…
↗
29
688427261000
Grommet
Loading…
↗
30
6E5825880000
Plate
Loading…
↗
31
970950602000
Bolt(7u8)
Loading…
↗
33
6R342741028D
Apron
Loading…
↗
36
64D427170000
Rubber Seal 2
Loading…
↗
37
6R342771018D
Apron
Loading…
↗
38
970800602000
Bolt(7u8)
Loading…
↗
40
6E5427161000
Rubber seal 1
Loading…
↗
41
6R3Y125J7000
Flushing kit
Loading…
↗
42
6R3125720000
Adapter
Loading…
↗
43
6R3125800000
Joint assembly
Loading…
↗
44
90445117F200
Hose (l700)
Loading…
↗
45
9046511M1000
Clamp
Loading…
↗
46
80L263970000
Band
Loading…
↗
