Yamaha Outboard Parts - Bottom Cowling - 20CMH (1996) | Flood Marine

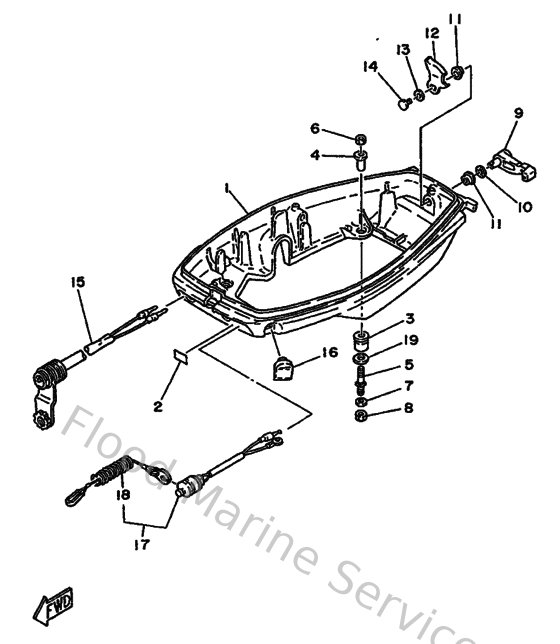

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


3
9048015M0600
Grommet (689)
Loading…

↗
4
9038708M2500
Collar (689)
Loading…

↗
5
6G0427960000
Bolt 1
Loading…

↗
6
953030870000
Nut(661)
Loading…

↗
7
929900860000
Washer, plain (663)
Loading…

↗
8
953800870000
Nut(661)
Loading…

↗
9
689428150000
Lever, clamp 1
Loading…

↗
10
902061205200
Washer, wave (666)
Loading…

↗
11
903861206900
Bush(666)
Loading…

↗
12
689428160000
Lever, clamp 2
Loading…

↗
13
9020106M0200
Washer,plate (6k8)
Loading…

↗
14
973130601000
Bolt
Loading…

↗
15
682843810000
2p concent 1
Loading…

↗
16
689427250100
Grommet
Loading…

↗
17
689825750200
Engine stop switch assembly
Loading…

↗
18
682825560000
Lanyard, stop switch
Loading…

↗
19
9020108M8700
Washer (6g0)
Loading…

↗
