Yamaha Outboard Parts - Bottom Cowling - 225BETOL (1994) | Flood Marine

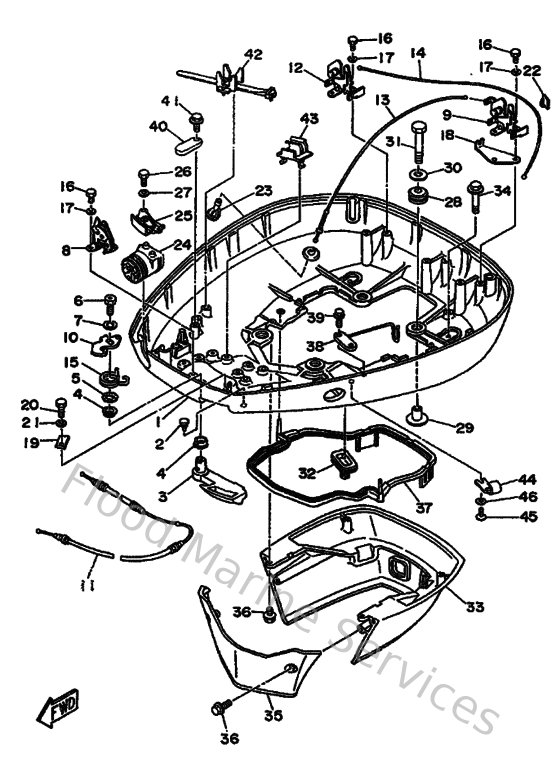

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
6H4427480000
Grommet
Loading…

↗
4
9038613M8800
Bush(6r3)
Loading…

↗
5
9020613M1000
Washer, wave (6e5)
Loading…

↗
7
929900820000
Ybs66-8 washer, plain
Loading…

↗
10
6R3428160000
Lever, clamp
Loading…

↗
13
6N7428501000
Wire, complete
Loading…

↗
14
6N7428502000
Wire, complete
Loading…

↗
16
970950601600
Bolt, hexagon deep recess
Loading…

↗
17
929900660000
Washer, plain (646)
Loading…

↗
18
6N7428280000
Plate, clamp
Loading…

↗
20
970850601000
Bolt
Loading…

↗
23
6E5443910000
Nipple, hose
Loading…

↗
28
9048022M1500
Grommet (6e5)
Loading…

↗
29
9038708M3700
Coller (6e5)
Loading…

↗
30
9020108M5400
Washer, plate (6e5)
Loading…

↗
31
970950803500
Bolt(70w)
Loading…

↗
32
688427261000
Grommet
Loading…

↗
33
6R342741004D
Apron
Loading…

↗
34
975950652000
Bolt(7u8)
Loading…

↗
35
6R342771018D
Apron
Loading…

↗
37
6E5427160000
Seal
Loading…

↗
38
6K7825880000
Plate
Loading…

↗
40
6E5825880000
Plate
Loading…

↗
42
688825940000
Clamp
Loading…

↗
43
6E5825940000
Clamp
Loading…

↗
44
6E5243671000
Clamp, fuel pipe 2
Loading…

↗
45
9015706M0100
Screw (6e5)
Loading…

↗
