225BETOL (1995)
Bottom Cowling

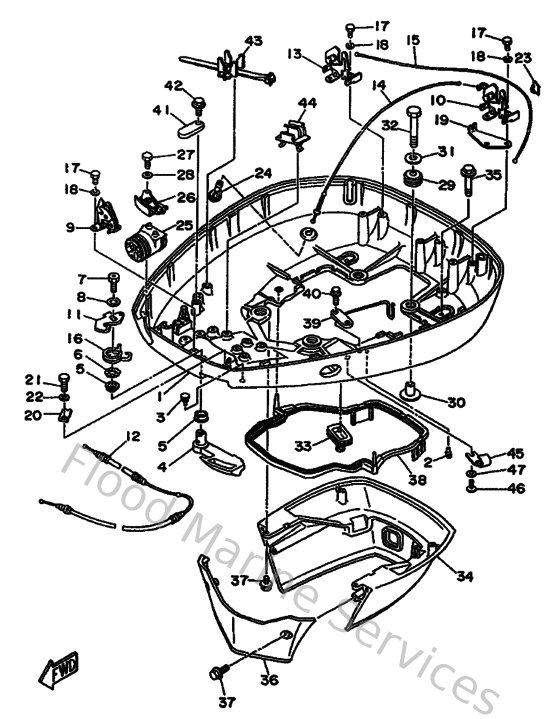

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
3
6H4427480000
Grommet
Loading…
↗
4
6R342815008D
Lever, Clamp
Loading…
↗
9
6R3428240000
Base, clamp lever
Loading…
↗
10
6R3428110100
Stay
Loading…
↗
11
6R3428160000
Lever, clamp
Loading…
↗
12
6R3428501000
Wire, complete
Loading…
↗
13
6R3428111000
Stay
Loading…
↗
14
6N7428501000
Wire, complete
Loading…
↗
15
6N7428502000
Wire, complete
Loading…
↗
16
6R3428130000
Spring, clamp lever
Loading…
↗
19
6N7428280000
Plate, clamp
Loading…
↗
20
6R3428280000
Plate, clamp
Loading…
↗
24
6E5443910000
Nipple, hose
Loading…
↗
25
6R3427252000
Grommet
Loading…
↗
26
6R342738015B
Plate, Fitting
Loading…
↗
33
688427261000
Grommet
Loading…
↗
36
6R342771008D
Apron
Loading…
↗
38
6E5427160000
Seal
Loading…
↗
39
6K7825880000
Plate
Loading…
↗
41
6E5825880000
Plate
Loading…
↗
43
688825940000
Clamp
Loading…
↗
44
6E5825940000
Clamp
Loading…
↗
45
6E5243671000
Clamp, fuel pipe 2
Loading…
↗
